Wear resistant ammunition feed ramp for light-weight firearms
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 22, 2017
Issued Date -
N/A
app pub date -
May 16, 2016
filing date -
May 20, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

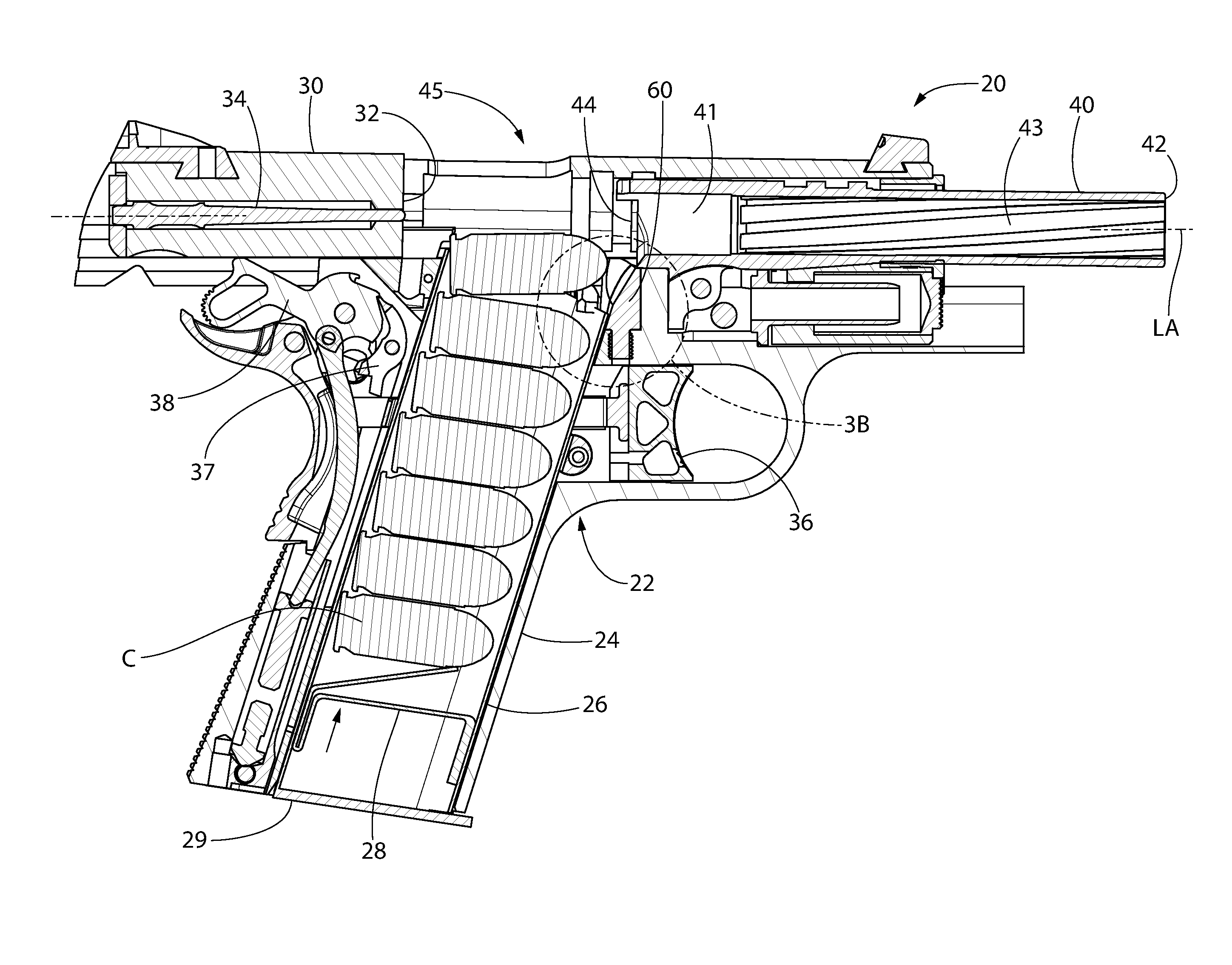

A light-weight firearm and related fabrication method are described for a wear resistant feed ramp for chambering cartridges from an ammunition magazine. In one embodiment, the firearm includes a barrel and a frame defining a magazine well and cartridge feed ramp. A wear insert formed of a different material than the frame is implanted in the feed ramp adjacent to the barrel chamber. The wear insert is then machined in situ to shape forming an obliquely angled wear surface. After machining, both the frame and implanted wear insert undergo a surface hardening process together. The surface hardened wear insert has a greater surface hardness than the surface hardened frame and is better adapted to resist wear after repeated chambering of rounds. In one non-limiting example, the frame may be hard anodized aluminum and the wear insert hard anodized titanium.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F41A Class
- 610 Applications Filed
- 510 Patents Issued To-Date
- 83.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F41A Class
- 20.31 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 22, 2029 |
