Immersion-type surface treatment tank
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 22, 2017
Issued Date -
Oct 27, 2016
app pub date -
Apr 18, 2016
filing date -
Apr 22, 2015
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

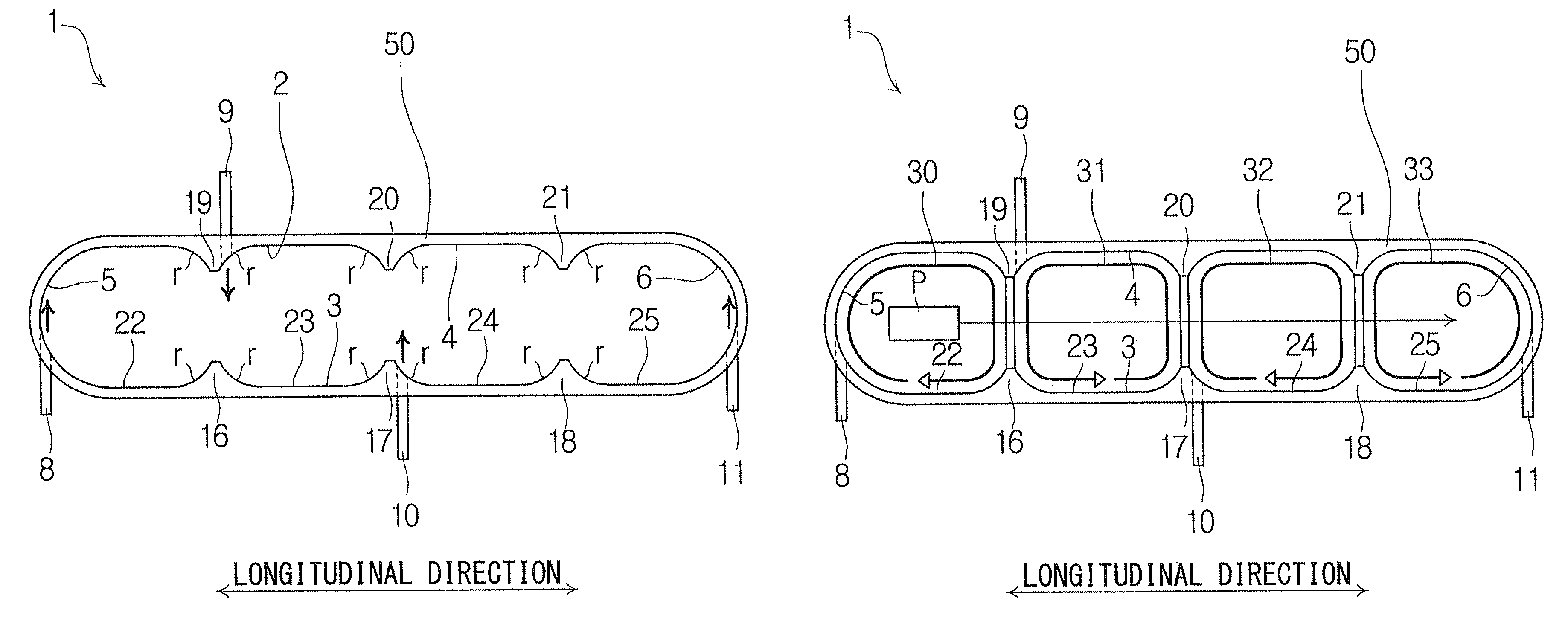

An immersion-type surface treatment tank includes a treatment tank body including: a single tank internal space elongated in a plan view, and a nozzle that ejects an electrodeposition paint into the tank internal space. The treatment tank body includes: a first tank inner side surface extending along a longitudinal direction of the tank internal space; a second tank inner side surface facing the first tank inner side surface and extending along the longitudinal direction; and a rectifying plate that is formed halfway in the longitudinal direction and changes a flow direction of the electrodeposition paint such that the electrodeposition paint flowing horizontally along the first tank inner side surface is directed toward the second tank inner side surface. The rectifying plate changes the flow direction of the electrodeposition paint, thereby forming, in the tank internal space, at least two horizontal swirl flows adjacent to each other in the longitudinal direction.
