Tank car apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 22, 2017
Issued Date -
N/A
app pub date -
Jul 14, 2015
filing date -
Jul 14, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

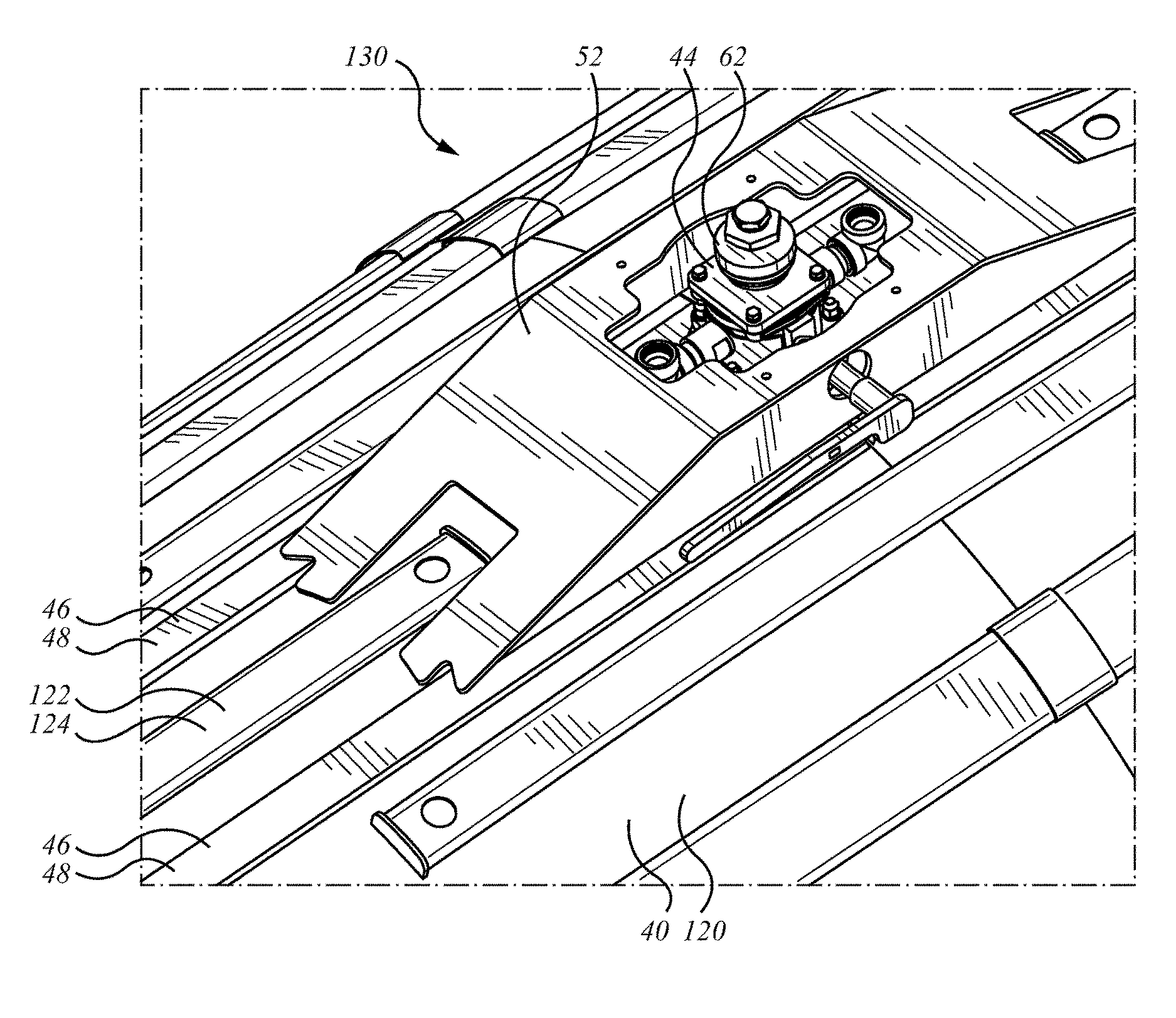

A railroad tank car may have external fittings, such as a bottom opening valve, that protrude from the bottom of the tank car tank. In a derailment the tank car tank may meet the ground. A tank skid plate assembly has an accommodation in which to shelter such fittings. The skid plate assembly has a shell with tapered ramps at either end. It mounts to tank reinforcement structure, such as reinforcing bars. Reinforcements may be mounted in the lee of the shell. Those reinforcements may be mounted to the shell only, without welding connection to the tank car tank. The reinforcements may be, or combine with the shell to define either a bridge or a truss that spans the space between the reinforcement bars. The assembly may have an access passageway, such as for admitting a heating pipe. The assembly may include lateral and longitudinal internal webs for providing crush resistance.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B61D Class
- 156 Applications Filed
- 120 Patents Issued To-Date
- 76.93 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61D Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 22, 2029 |
