Wiper blade apparatus for vehicle with improved assemblability
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 22, 2017
Issued Date -
N/A
app pub date -
Mar 4, 2015
filing date -
Mar 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

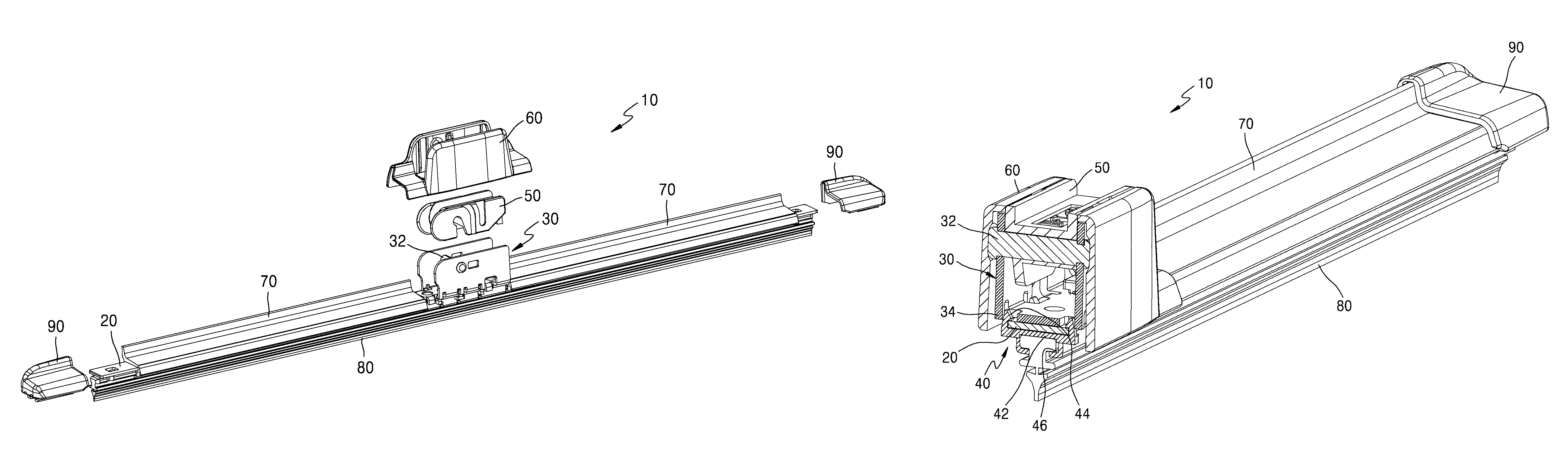

A wiper blade apparatus for a vehicle includes: a vertebra that is a rod-like elongated member; a first connection member disposed at a central upper portion of the vertebra, provided with a rotational shaft fixed to the vertebra; and a center support including a plurality of elastic hook sections supporting a top surface of the vertebra so that the center support is fixed to the vertebra. The elastic hook sections forcibly pass through a space between the vertebra and a hook release prevention section extending downward from a sidewall of the first connection member and are elastically fixed to the top surface of the vertebra. The center support is assembled upward from a lower side of the vertebra after the first connection member is assembled with the vertebra.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60S Class
- 422 Applications Filed
- 294 Patents Issued To-Date
- 69.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60S Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 22, 2029 |
