Two port speaker acoustic modulator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2017
Issued Date -
N/A
app pub date -
Jun 23, 2016
filing date -
Jun 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

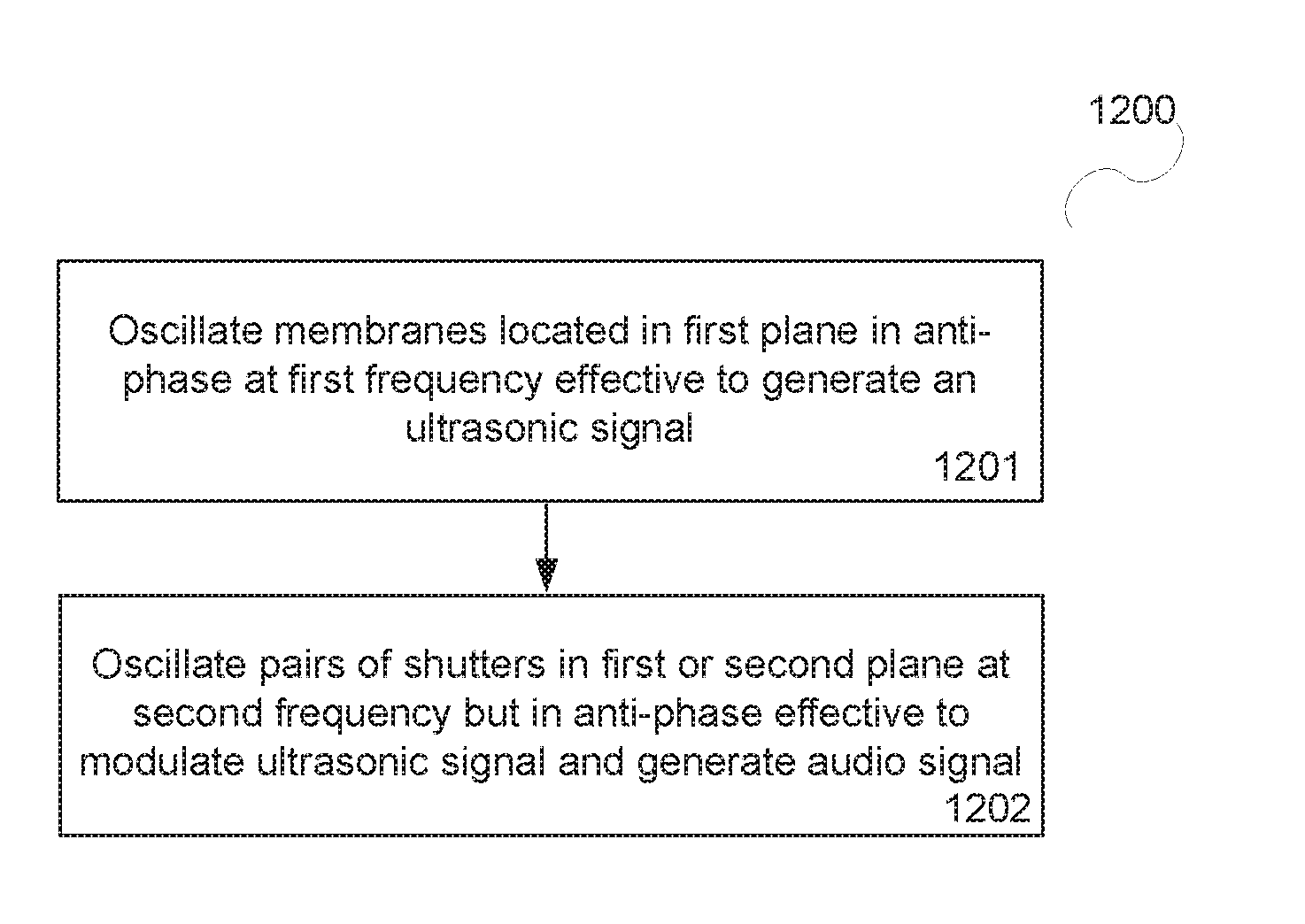

A two-port air pump speaker that includes at least two active, phase-modulated, bi-directional shutters and an ultrasonic pumping chamber having at least two ports; a first port facing towards the listener, the forward port, and a second port facing another direction, the backward port which may be behind an acoustic baffle or inside a speaker enclosure. A two-port speaker with two active steering shutters can create continuous bi-directional airflow which leads to low distortion reproduction of low audio frequencies. The same improved design can be used also for other applications where acoustic modulation is required, especially in ultrasonic frequencies.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04R Class
- 3095 Applications Filed
- 2506 Patents Issued To-Date
- 80.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04R Class
- 20.74 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 15, 2029 |
