Self-oscillating resonant power converter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2017
Issued Date -
N/A
app pub date -
Oct 29, 2013
filing date -
Nov 2, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

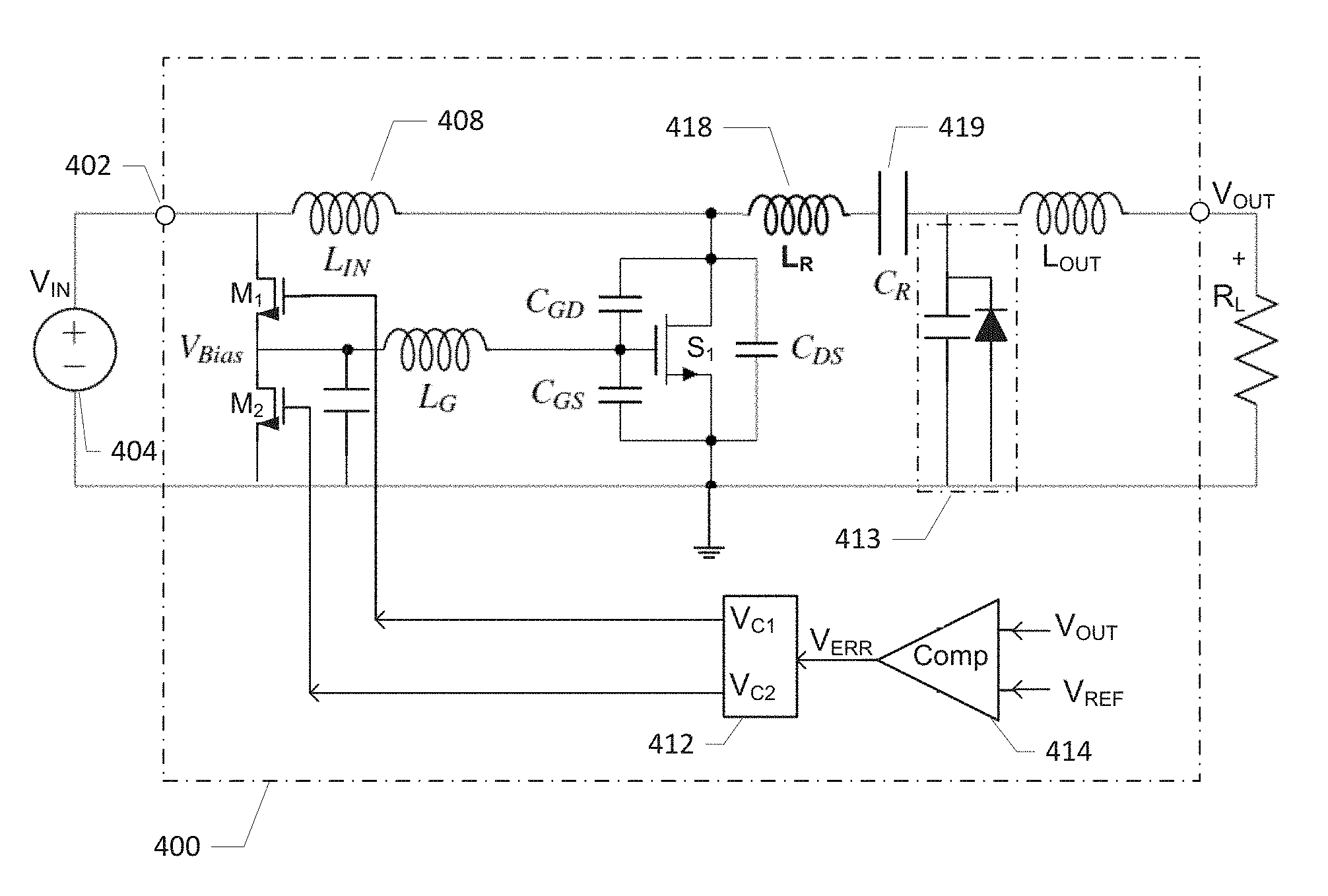

Resonant power converters and inverters comprising a self-oscillating feedback loop coupled from a switch output to a control input of a switching network comprising one or more semiconductor switches (S1, S2). The self-oscillating feedback loop sets a switching frequency of the power converter (100) and comprises a first intrinsic switch capacitance (CGD) coupled between a switch output and a control input of the switching network and a first inductor (LG). The first inductor (LG) is coupled in-between a first bias voltage source and the control input of the switching network and has a substantially fixed inductance. The first bias voltage source is configured to generate an adjustable bias voltage (VBias) applied to the first inductor (LG). The output voltage (V0UT) of the power converter (100) is controlled in a flexible and rapid manner by controlling the adjustable bias voltage (VBias).
