Waste heat recovery system and waste heat recovery method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2017
Issued Date -
N/A
app pub date -
Mar 19, 2015
filing date -
Apr 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

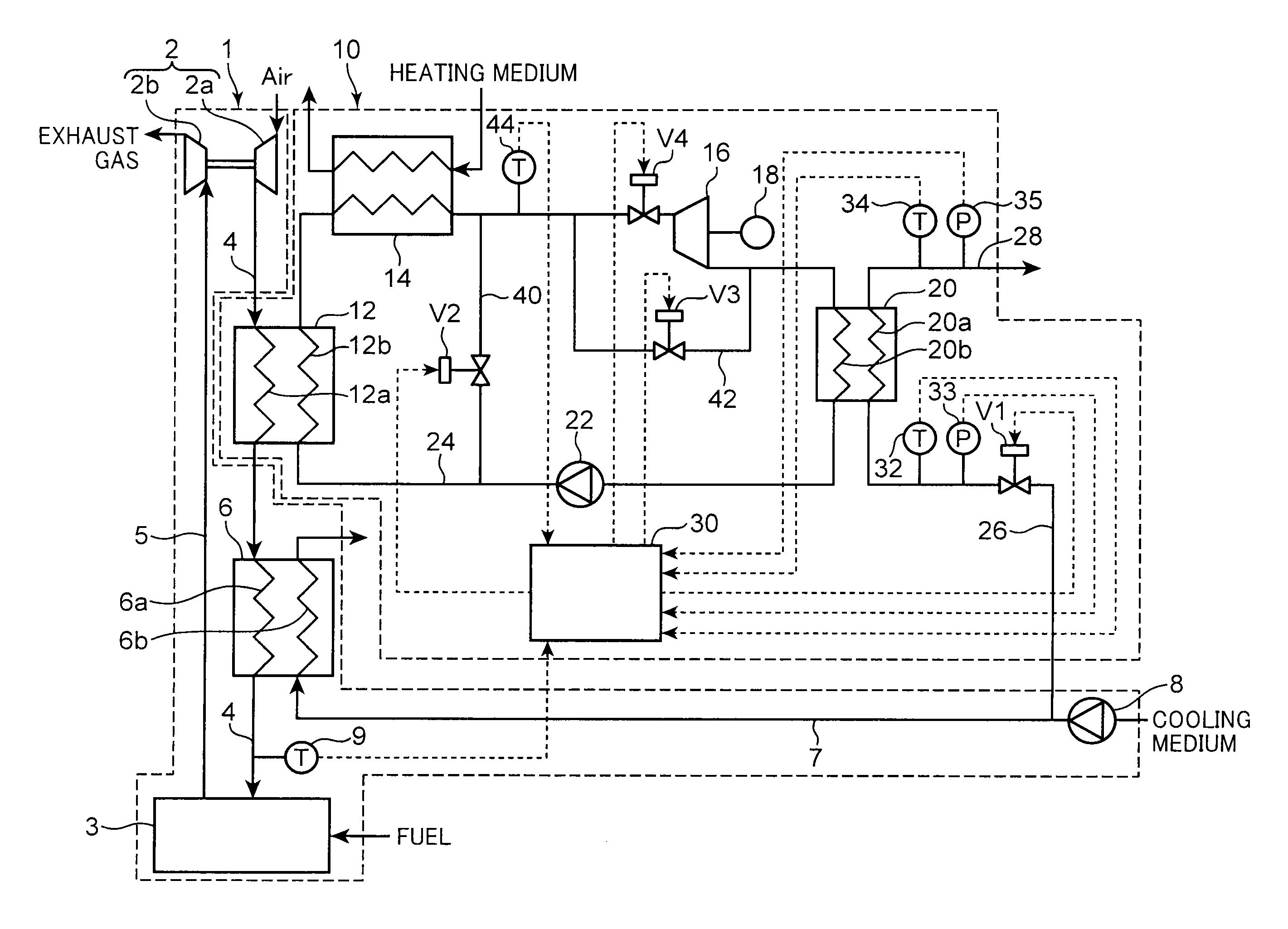

A waste heat recovery system includes: a heater which evaporates a working medium by exchanging heat between supercharged air supplied to an engine and the working medium; an expander which expands the working medium which has flowed out from the heater; a power recovery device connected to the expander; a condenser which condenses the working medium which has flowed out from the expander; a cooling medium supply pipe for supplying a cooling medium to an air cooler which cools the supercharged air which has flowed out from the heater; a cooling medium pump which is provided in the cooling medium supply pipe and which sends the cooling medium to the air cooler; and a branch pipe which bifurcates a part of the cooling medium flowing in the cooling medium supply pipe, to the condenser, in such a manner that the working medium is cooled by the cooling medium.
