Fine knitwear of circular knitting machines with air permeable holes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2017
Issued Date -
N/A
app pub date -
Nov 5, 2015
filing date -
Nov 5, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

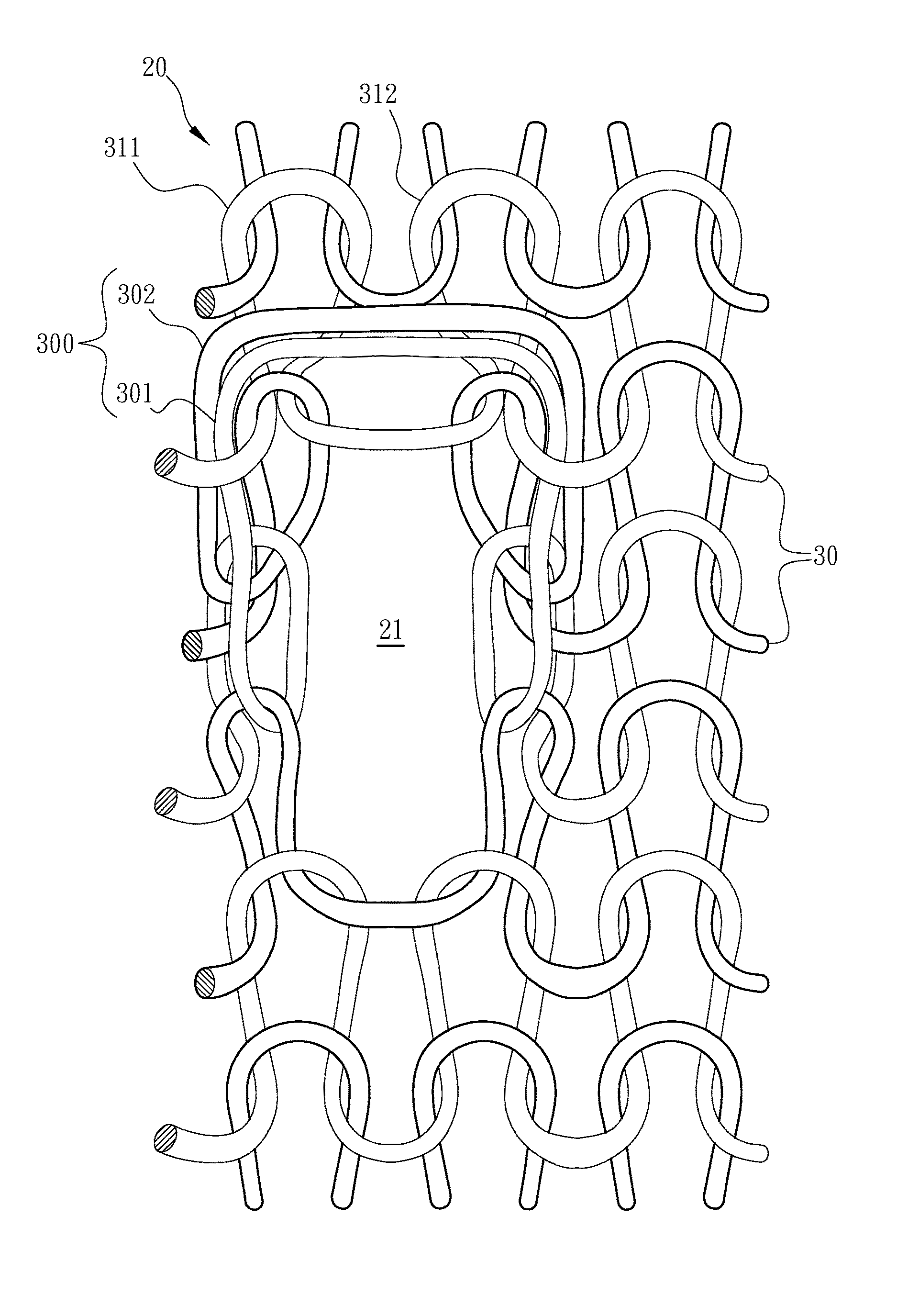

A fine knitwear of circular knitting machines with air permeable holes is a single face fabric knitted via a circular knitting machine with knitting fineness ≧24 needles/inch. Each air permeable hole includes: at least one yarn located above the air permeable hole and formed via interactive movements of a Dial sinker and a plurality of latch needles perpendicular to the Dial sinker, and a first support loop and a second support loop that are formed via interactive movements of the Dial sinker and the latch needles and symmetrical against the yarn on the left side and the right side to support and tie the transferred yarn. The fine knitwear can meet market and consumers' requirements of providing more comfortable cooling, and the width of the air permeable holes can be changed flexibly in response to different requirements in the industry.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- D04B Class
- 157 Applications Filed
- 122 Patents Issued To-Date
- 77.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- D04B Class
- 33.59 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 15, 2029 |
