Field induced and controlled heliconical structure of cholesteric liquid crystal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2017
Issued Date -
N/A
app pub date -
Feb 25, 2016
filing date -
Feb 27, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

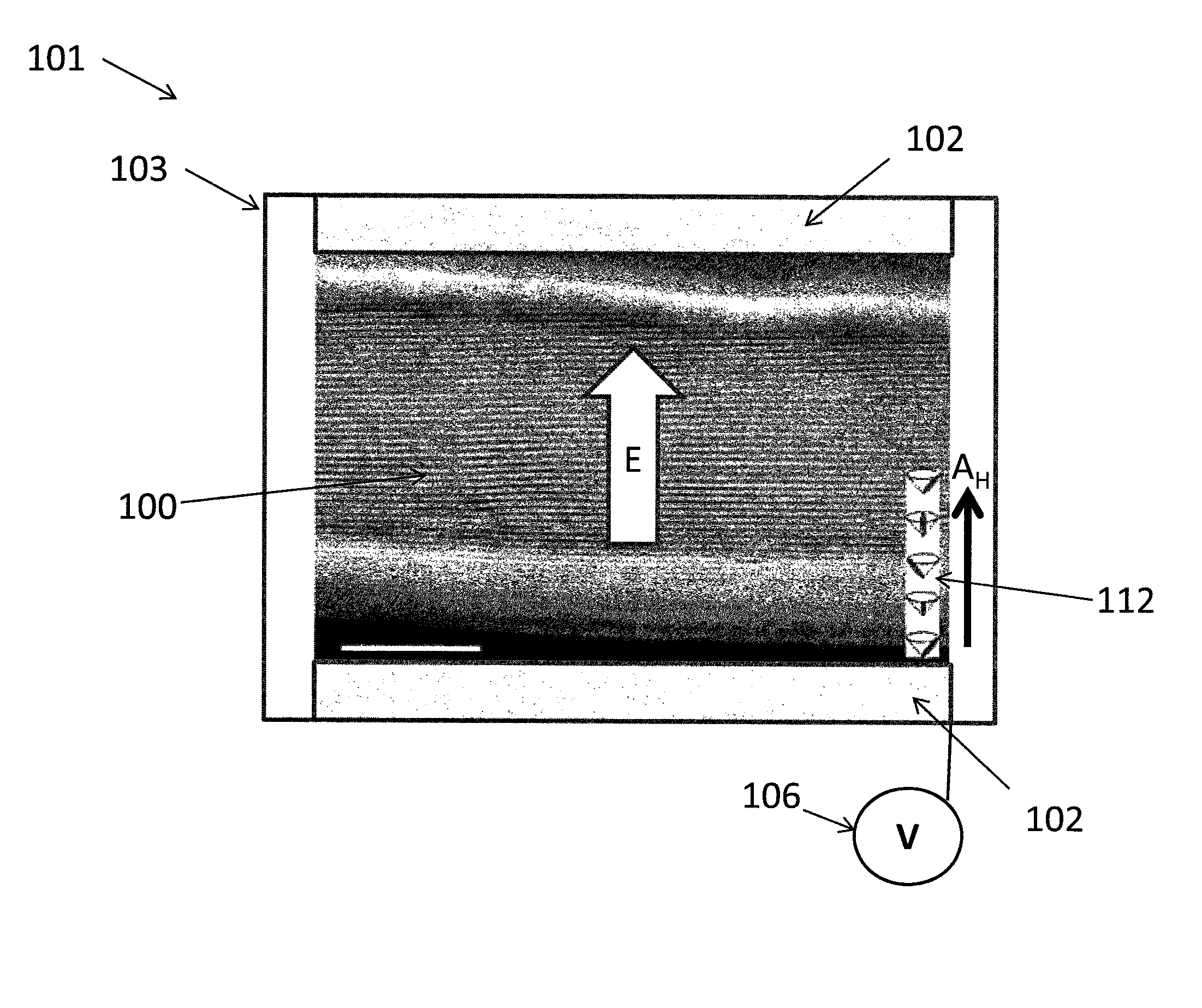

A liquid crystal cell includes substrates defining a gap and electrodes having one of (i) an in-plane geometry generating an electric field parallel with the substrates and (ii) a top-down geometry generating an electric field across the gap between the two spaced apart substrates. A liquid crystal material disposed in the gap between the substrates comprises a chiral nematic material formed by a mixture of: 1-(4-cyanobiphenyl-4′-yl)-6-(4-cyanobiphenyl-4′-yloxy)hexane (CB6OCB) or α,ω-bis(4,4-cyanobiphenyl)nonane (CB9CB) dimeric liquid crystal material; at least one additional dimeric liquid crystal material; and a chiral dopant. The liquid crystal material within an operational range of electric field applied by the electrodes exhibits a heliconical state with an oblique angle helicoid director whose helicoid axis is oriented parallel with the electric field and whose helicoid pitch is sized to provide diffraction or Bragg reflection of light in a spectral range of interest impinging on one of the substrates of the liquid crystal cell.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- C09K Class
- 3076 Applications Filed
- 2094 Patents Issued To-Date
- 68.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C09K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 15, 2029 |
