Device having two rigid conductor rails and a section insulator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2017
Issued Date -
N/A
app pub date -
May 16, 2014
filing date -
May 22, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

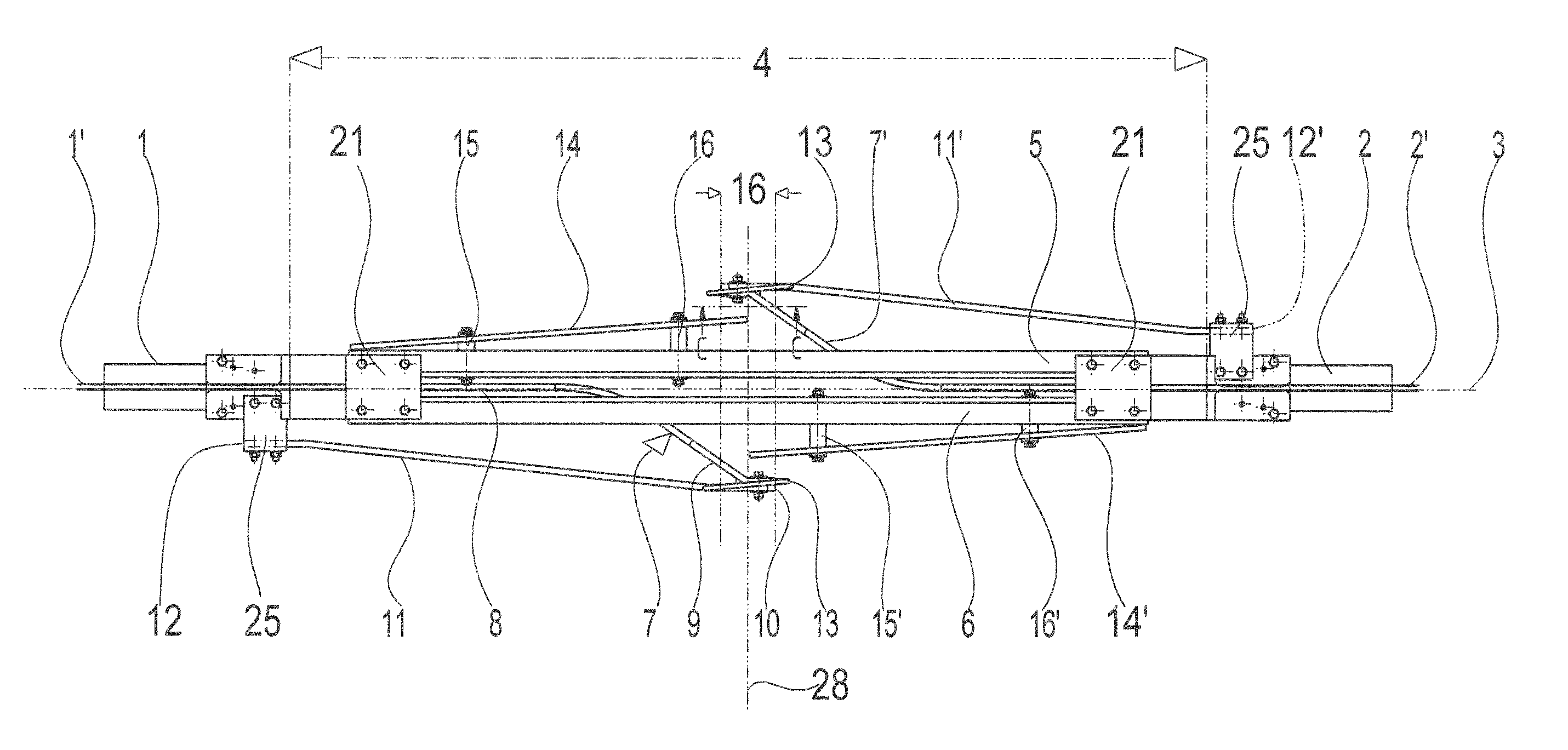

The section insulator for rigid conductor rails has conductive runners, a ramp and an insulating runner, each connected to one conductor rail. The conductor runners (7, 7′) and the ramps (11, 11′) are connected to one another at one end and at their other ends to the conductor rail, wherein the latter mentioned ends are offset relative to each other in the longitudinal direction (3). The two conductor rails (1, 2) are rigidly and torsion-resistantly connected to one another by insulating profiles (5, 6). Insulating runners (14, 14′) are attached to the insulating profiles opposite the respective conductive runner, so that a current collector is properly guided when passing by. An insulating spacing is present between the ends of the conductive runners (7, 7′) and the ends of the closest insulating runner (14, 14′).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H01B Class
- 1335 Applications Filed
- 1040 Patents Issued To-Date
- 77.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 15, 2029 |
