Method of manufacturing rotogravure cylinders
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2017
Issued Date -
N/A
app pub date -
Aug 29, 2013
filing date -
Aug 29, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

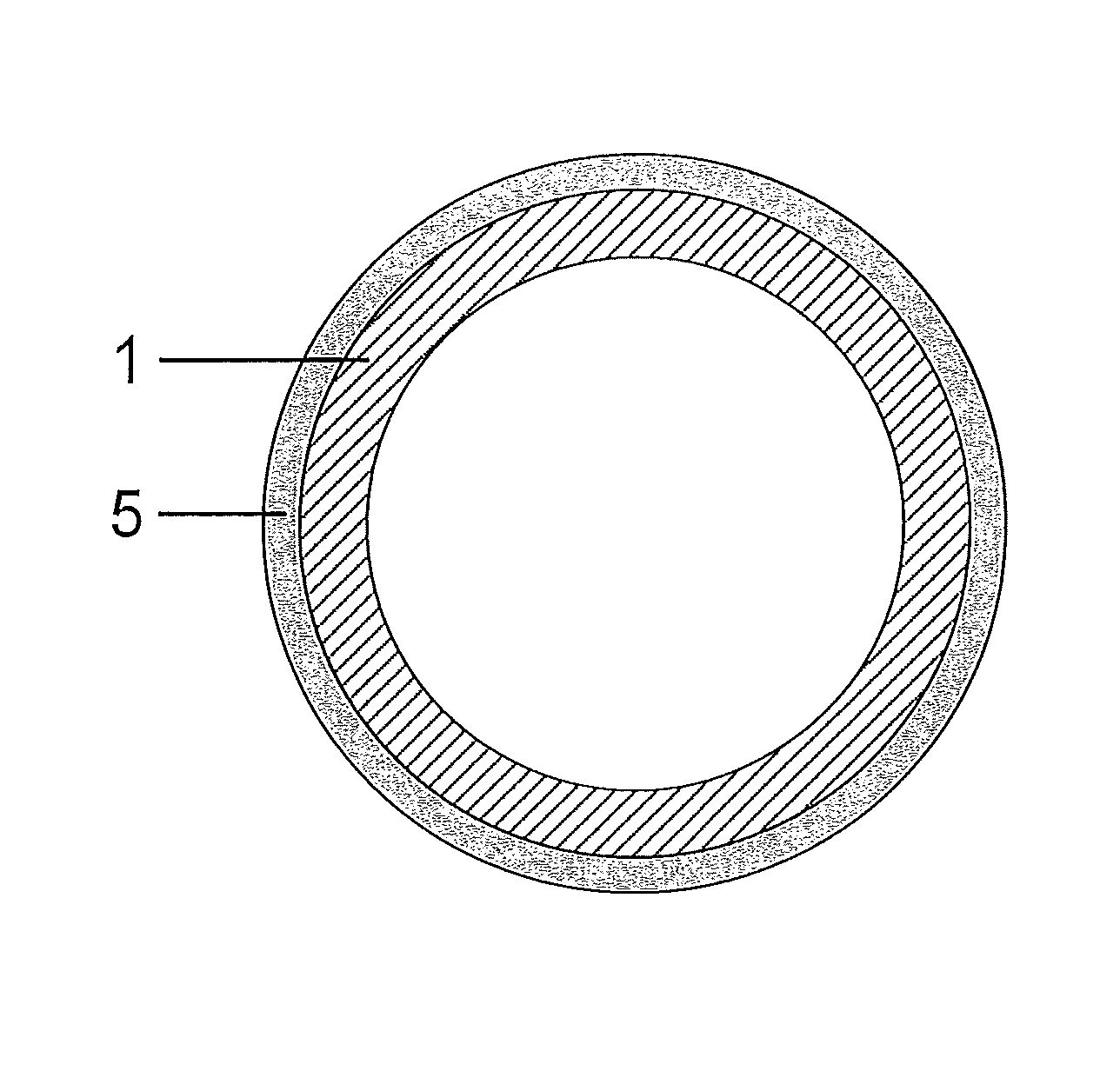

The present invention describes a method for manufacturing rotogravure cylinders with a cylinder base made of aluminum and a single metallic layer on the cylinder surface. The method comprises the construction of the cylinder base, the deposition of the metallic layer on the cylinder surface, the thinning of the cylinder to achieve the required dimensions, the polishing of the cylinder surface and finally the etching of the cylinder with the desired printing pattern. The metallic layer can be any copper alloy that will produce a surface with a Vickers hardness of about 400 HV. The metallic layer is deposited onto the cylinder base using any thermal spraying method. The cylinder surface is then thinned and polished by using any conventional method. Finally, the cylinder is etched to provide a superb cylinder for the printing industry.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B41N Class
- 43 Applications Filed
- 40 Patents Issued To-Date
- 93.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41N Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 15, 2029 |
