Oscillating nozzles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2017
Issued Date -
N/A
app pub date -
Mar 31, 2015
filing date -
Mar 31, 2014
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

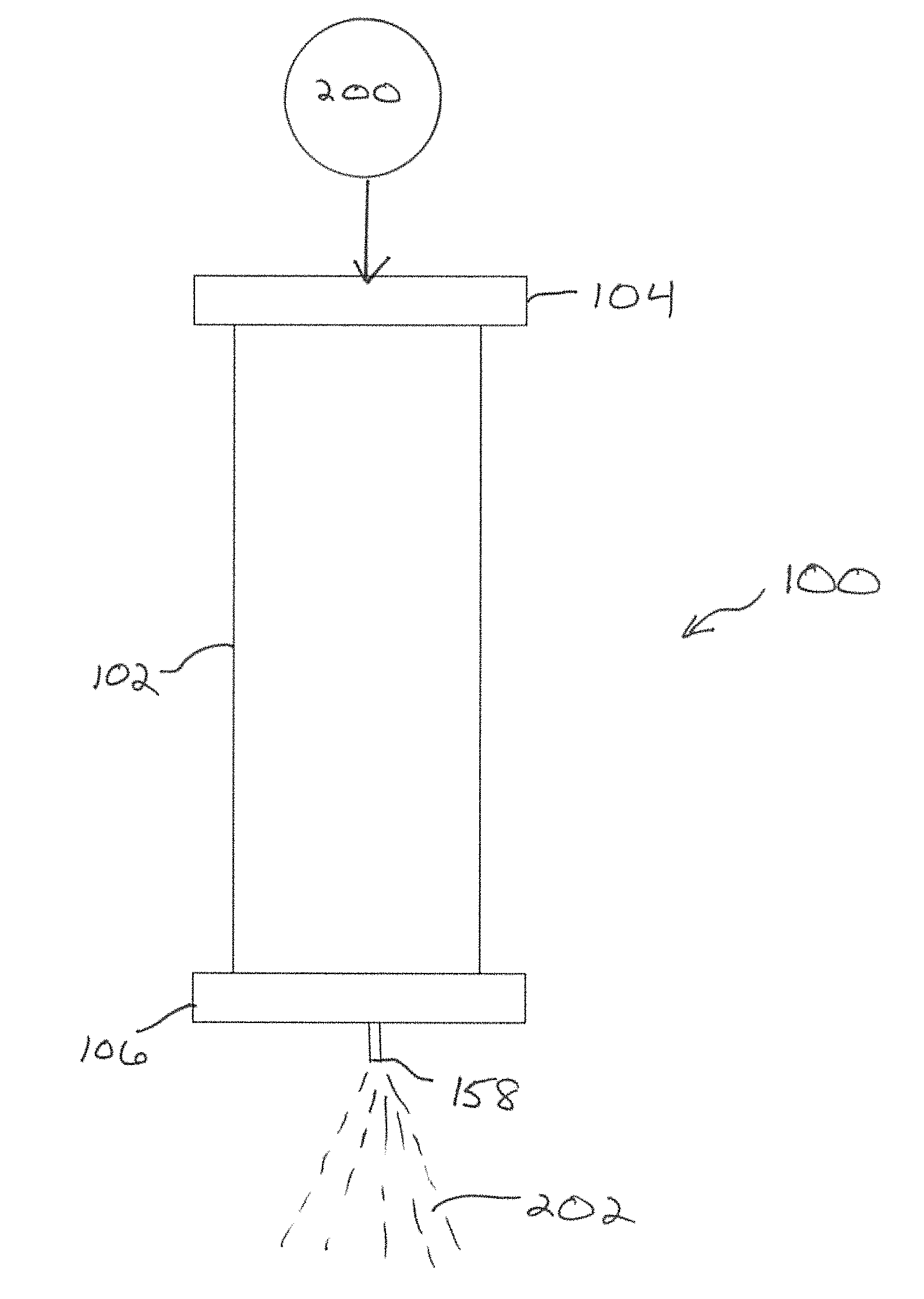

An oscillating spray nozzle and related methods for providing spray patterns in a variety of oscillating patterns by driving movement of the nozzle with a progressing cavity displacement motor. By varying the design of the progressing cavity displacement motor, a variety of spray pattern geometries can be generated and a speed of the nozzle as it travels through the spray pattern geometries can be controlled. The oscillating spray nozzle can include a housing enclosing a progressing cavity motor that is operably connected to a spray nozzle. The progressing cavity motor includes a rotor member that is caused to rotate and oscillate within a stator member. The rotor member is operably linked to the spray nozzle, whereby the movement of the rotor member is communicated to the spray nozzle.
First Claim
all claims..Other Claims data not available
