Control of power distribution system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 8, 2017
Grant Date -
Nov 12, 2015
app pub date -
May 7, 2014
filing date -
May 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

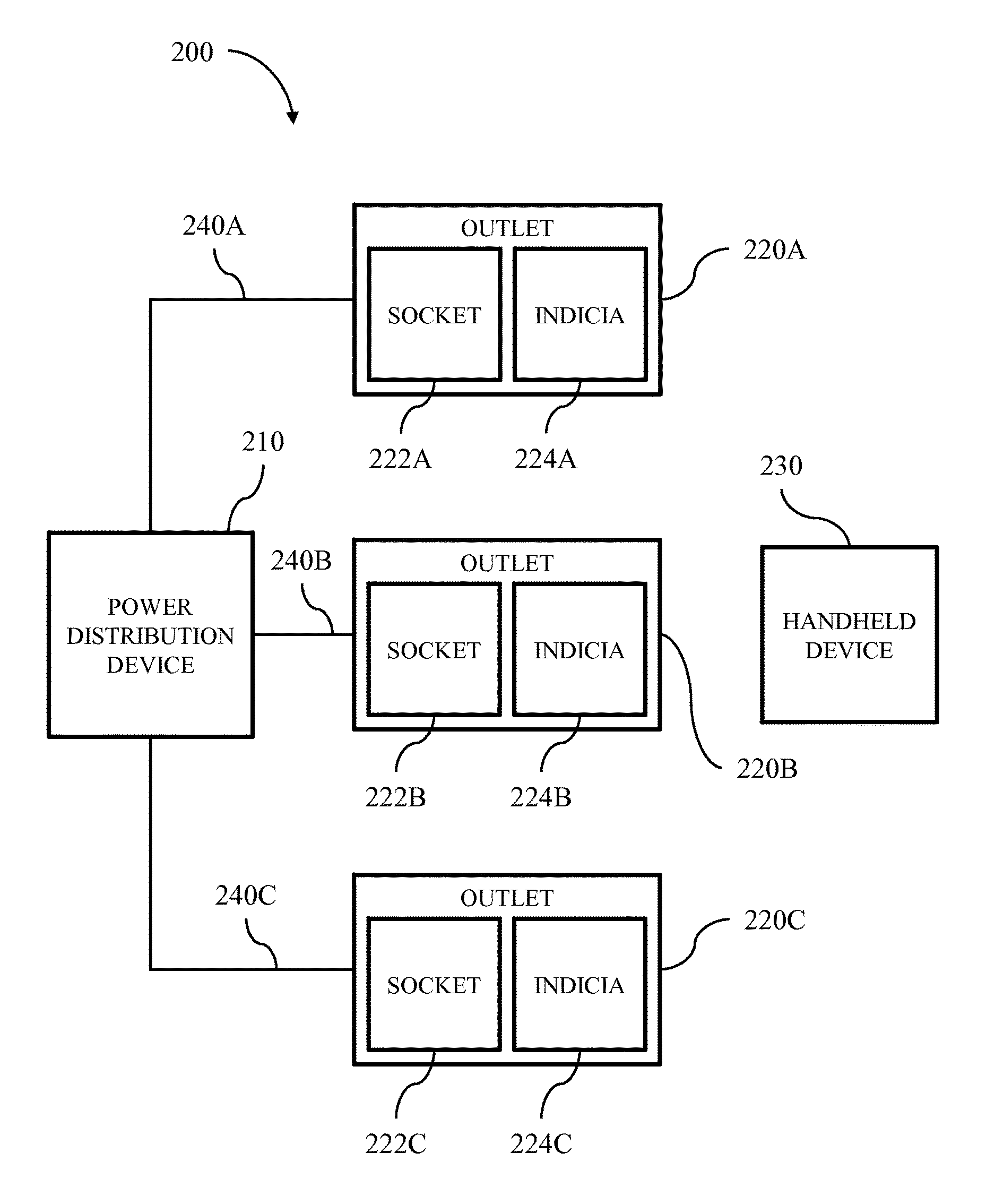

A method of controlling a plurality of outlets and a first and a second non-transitory medium for use in connection with in a power distribution. The power distribution system includes a handheld device, a power distribution device, and the plurality of outlets. The handheld device includes a first controller. The power distribution device includes a second controller and is coupled to the plurality of outlets to provide electrical power thereto. The power distribution device is physically separated from the plurality of outlets and is located not in close proximity to an outlet of the plurality of outlets. Each outlet of the plurality of outlets includes a socket and indicia located proximate to the socket. The first non-transitory medium includes instructions that when executed by the first controller cause the first controller to scan indicia of a first outlet and receive a set of input data. The first non-transitory medium also includes instructions that when executed by the first controller cause the first controller to determine and transmit a target setting of the first outlet based on the first set of input data and the scanned indicia. The second non-transitory medium includes instructions that when executed by the second controller cause the second controller to receive the target setting, and provide electrical power to the first outlet based on the target setting.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- H02J Class
- 3785 Applications Filed
- 3269 Patents Issued To-Date
- 86.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02J Class
- 20.50 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 8, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 8, 2029 |
