Bipolar transistor device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 8, 2017
Grant Date -
N/A
app pub date -
Dec 20, 2016
filing date -
Dec 20, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

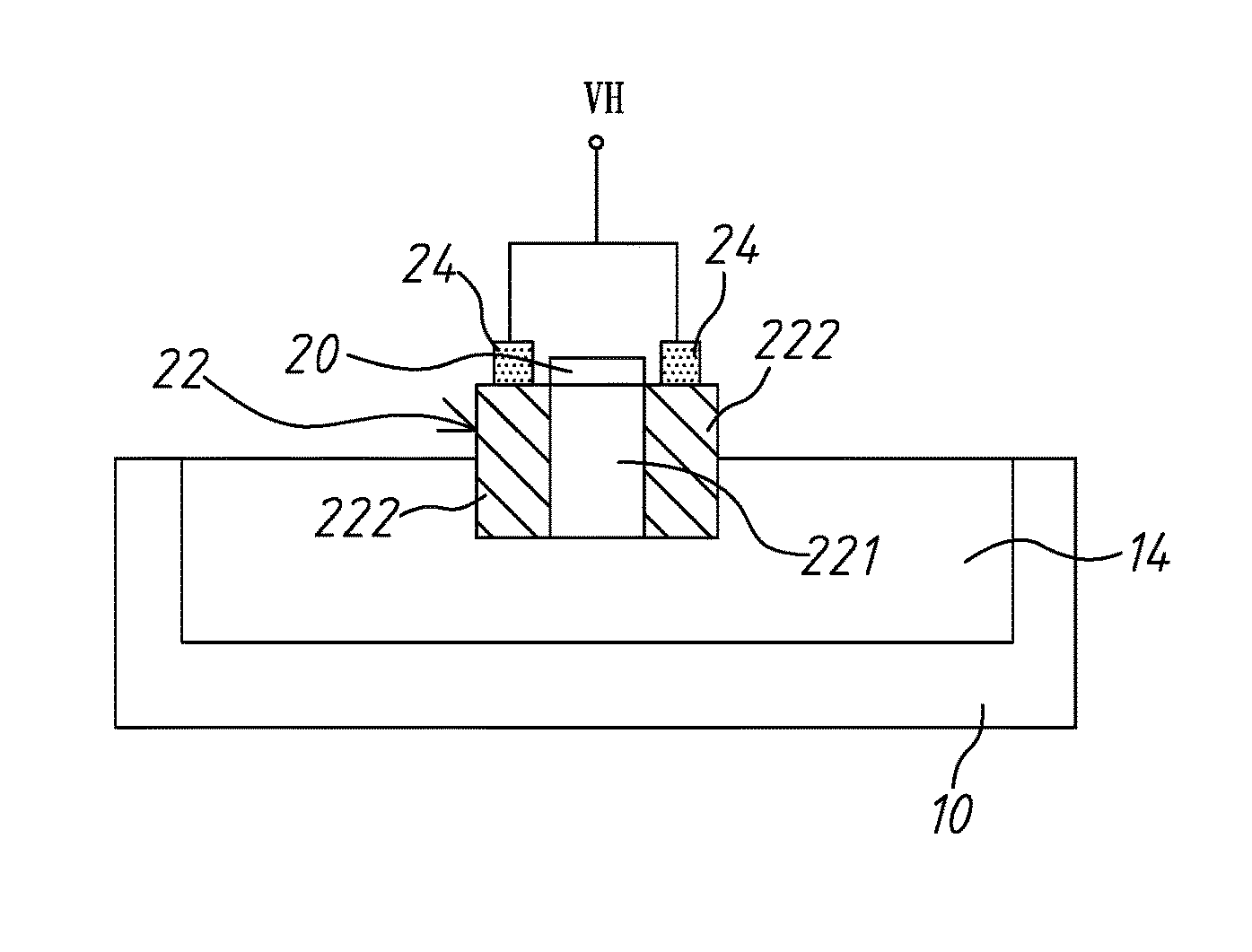

A bipolar transistor device includes a substrate and at least one first transistor unit. The first transistor unit includes a first doped well of first conductivity type, at least one first fin-based structure and at least one second fin-based structure. The first fin-based structure includes a first gate strip and first doped fins arranged in the first doped well, and the first gate strip is floating. The second fin-based structure includes a second gate strip and second doped fins arranged in the first doped well, and the second gate strip is floating. The first doped fins, the second doped fins and the first doped well form first BJTs, and the first doped fins and the second doped fins are respectively coupled to high and low voltage terminals.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01L Class
- 18.50 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 8, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 8, 2029 |
