Logic graph displaying apparatus and logic graph display method, both for use with molding machines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 8, 2017
Issued Date -
N/A
app pub date -
Jan 22, 2013
filing date -
Jan 23, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

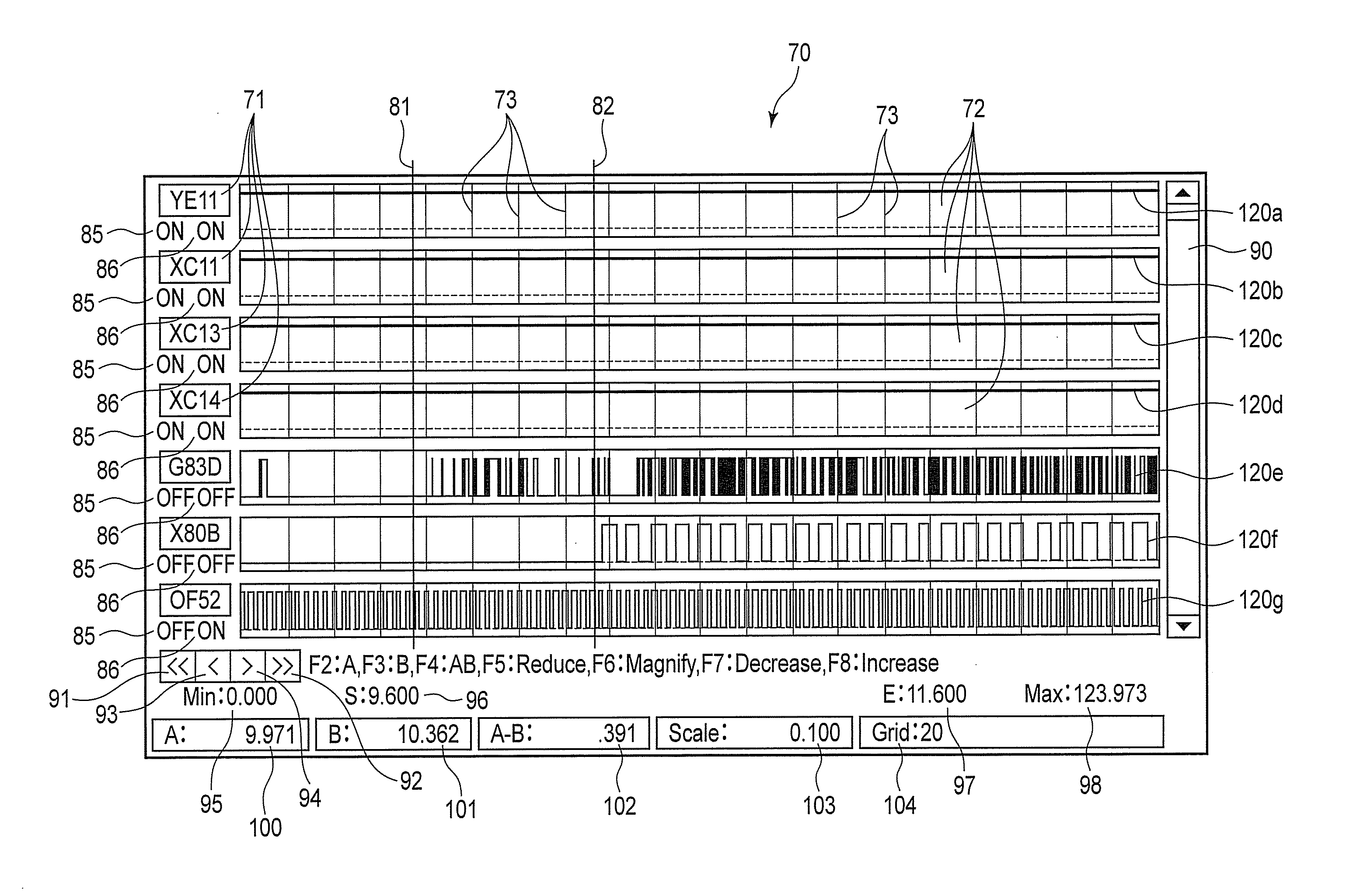

A logging data about a signal identifier of the I/O signals which changed in on/off state are stored in a ring buffer. A logging screen includes identifier display parts, logic-graph display parts and first and second cursors. The logic-graph display parts display logic graphs associated with signal identifiers, respectively. When any one of the identifier display parts displayed on the logging screen is clicked, the logging screen is changed to an input window. If a desired input identifier is input in the input window, the logging data associated with the signal identifier is read from the ring buffer and the logic graph is displayed in the logic-graph display parts. The logic graph can be modified.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B29C Class
- 3653 Applications Filed
- 3211 Patents Issued To-Date
- 87.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 8, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 8, 2029 |
