Tensioner with increased damping
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 8, 2017
Grant Date -
Sep 25, 2014
app pub date -
Apr 24, 2014
filing date -
Oct 22, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

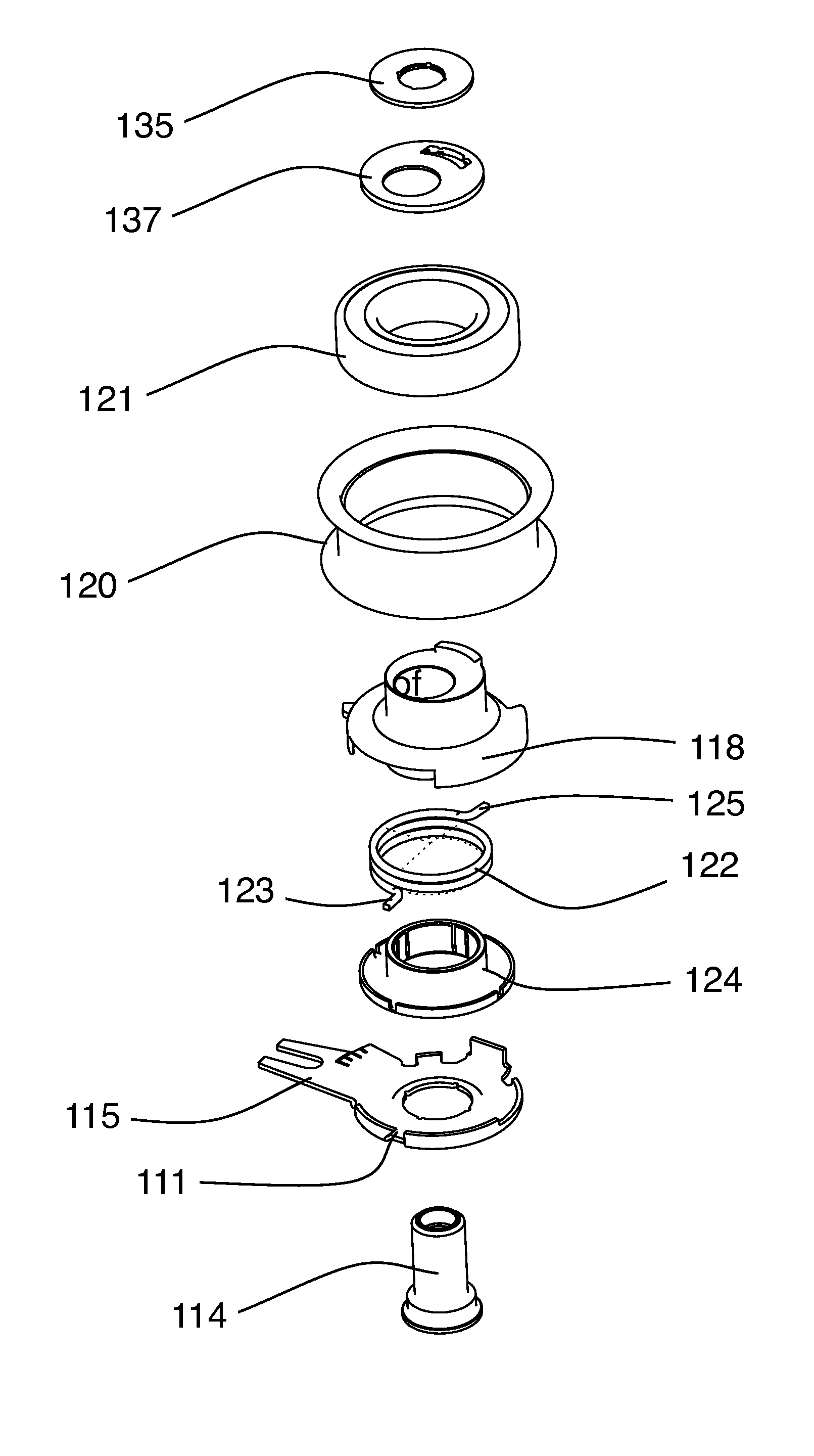

In an aspect, a tensioner for an endless drive member, comprising a shaft and base that are mountable to be stationary relative to an engine, a tensioner arm that is pivotable relative to the shaft about a tensioner arm axis, a pulley on the tensioner arm rotatable about a pulley axis that is offset from the tensioner arm axis, and that is engageable with an endless drive member, a bushing that is positioned radially between the pulley and the tensioner arm to support the pulley radially during relative rotation between the pulley and the tensioner arm, a tensioner spring that is positioned to urge the tensioner arm towards a free arm position, a damping element that engages the tensioner arm and that is engaged by a plurality of axially spaced segments of the tensioner spring.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F01L Class
- 446 Applications Filed
- 408 Patents Issued To-Date
- 91.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F01L Class
- 24.86 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 8, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 8, 2029 |
