Winding machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 8, 2017
Grant Date -
Dec 10, 2015
app pub date -
Jan 8, 2014
filing date -
Jan 24, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

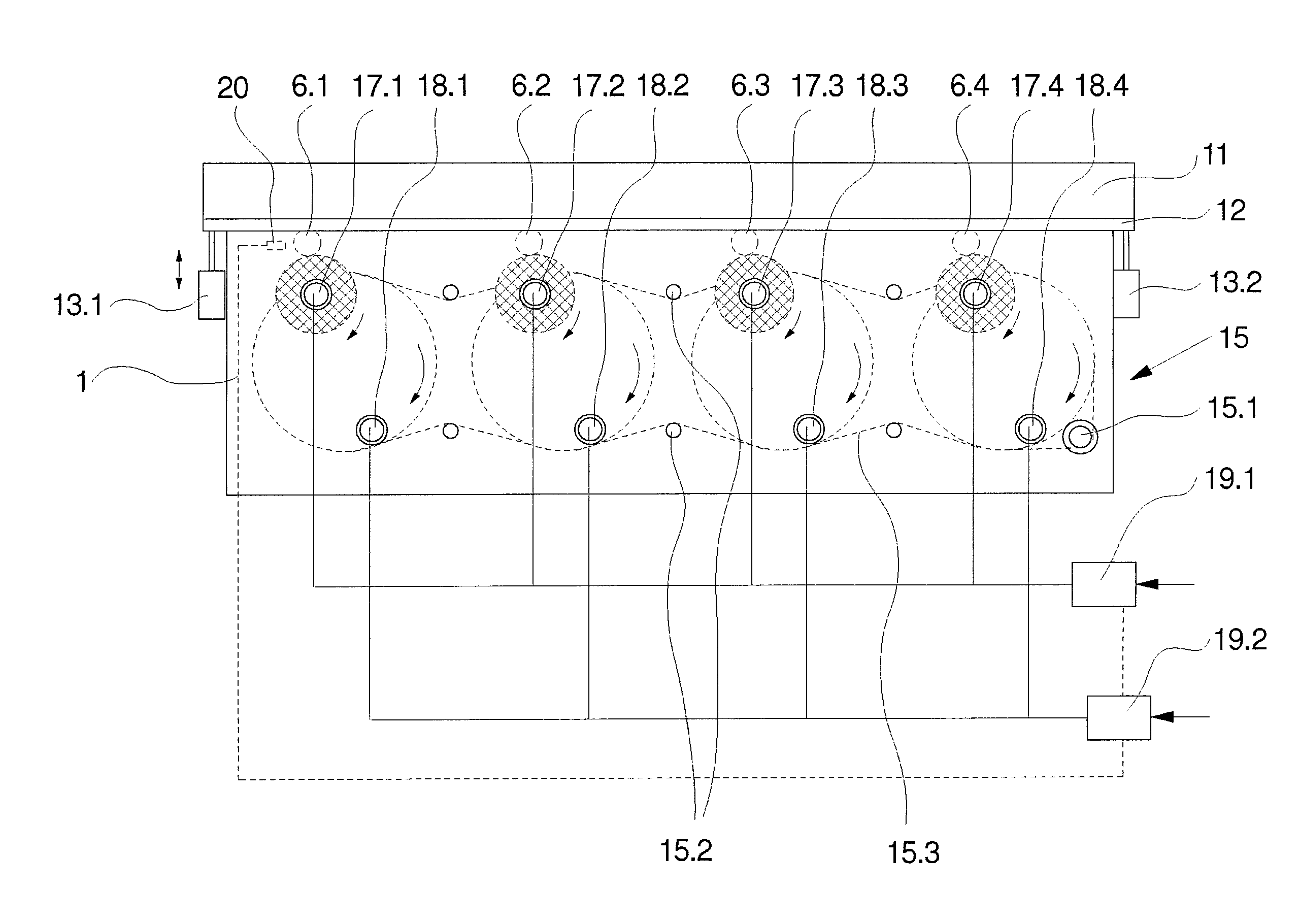

A take-up winding machine continuously coils a plurality of threads. The take-up winding machine has a plurality of rotatably mounted winding turrets which, in each case, support two protruding winding spindles and which are held beside one another in a machine frame so as to be spaced apart by a pitch. The take-up winding machine further has a plurality of traversing units and a plurality of contact rollers which together with the winding turrets form a plurality of coiling positions. The winding turrets are assigned one common turret drive. The winding turrets are configured so as to be drivable in the same direction. The contact rollers and the traversing units are held on the machine frame along one machine longitudinal side so as to be symmetrical to the pitch of the winding turrets.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B65H Class
- 1287 Applications Filed
- 1166 Patents Issued To-Date
- 90.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65H Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 8, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 8, 2029 |
