Display system of an aircraft, able to display a horizon line able to be deformed and related method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 8, 2017
Grant Date -
Dec 29, 2016
app pub date -
Jun 22, 2016
filing date -
Jun 24, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

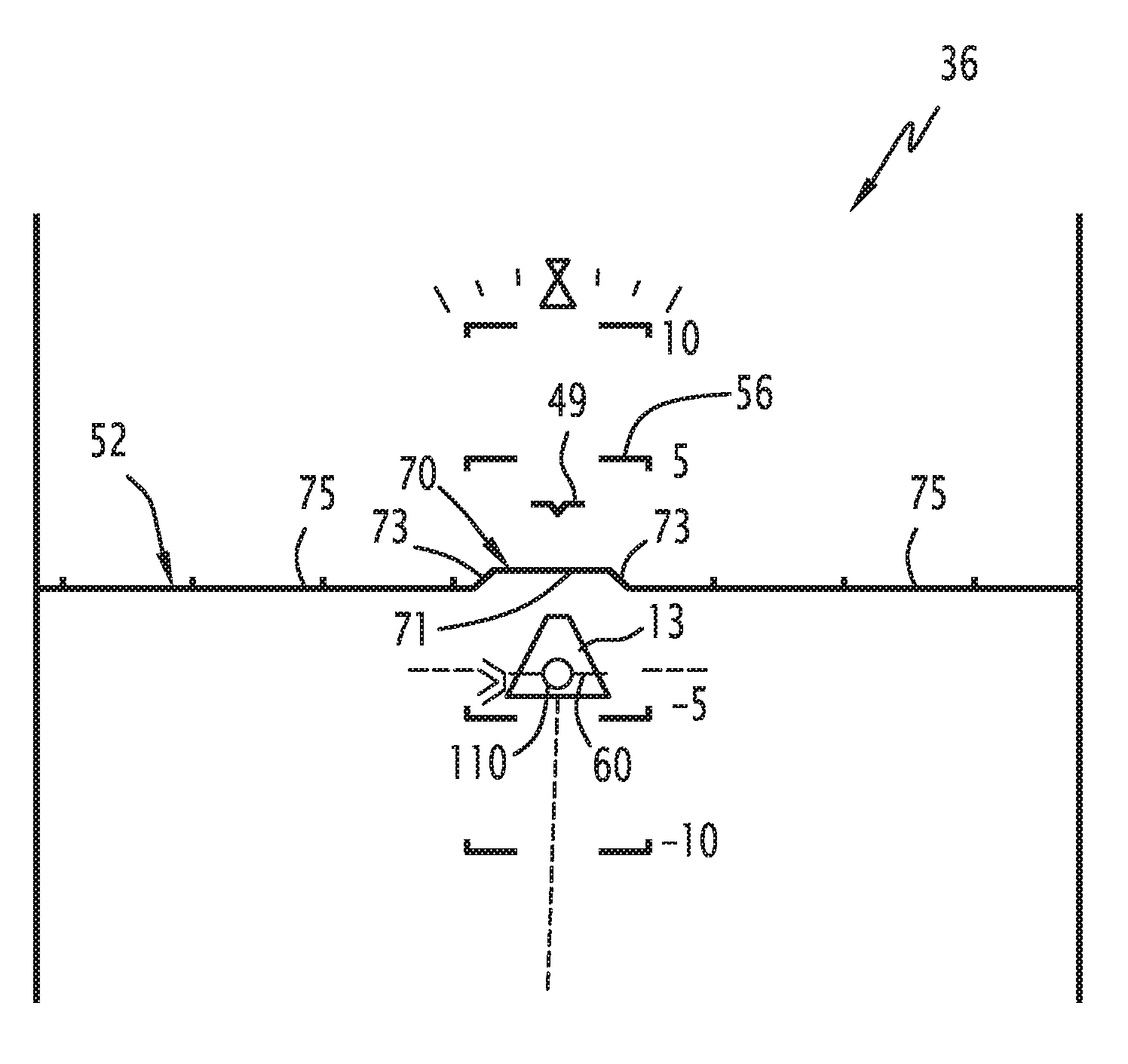

A display system of an aircraft, able to display a horizon line able to be deformed and related method are provided. The display system includes a display unit; and an assembly for generating a display on the display unit, able to dynamically display, on the display unit, at least one horizon line and a slope scale relative to the horizon line. Upon approaching a landing strip, the display generator is able to create, on the horizon line, a region that is deformed as a function of the topographical slope of the landing strip approached by the aircraft.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- G09G:ARRANGEMENTS OR CIRCUITS FOR CONTROL OF INDICATING....
- G02B:OPTICAL ELEMENTS, SYSTEMS, OR APPARATUS
- G05D:SYSTEMS FOR CONTROLLING OR REGULATING NON-ELECTRIC....
- G08G:TRAFFIC CONTROL SYSTEMS
- B64D:EQUIPMENT FOR FITTING IN OR TO AIRCRAFT; FLYING SU....
- G01C:MEASURING DISTANCES, LEVELS OR BEARINGS; SURVEYING....
- B64C:AEROPLANES; HELICOPTERS
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G09G Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 8, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 8, 2029 |
