Machine gun assembly and interlock element for use with a machine gun assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 1, 2017
Grant Date -
Jul 13, 2017
app pub date -
Sep 6, 2013
filing date -
Sep 11, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

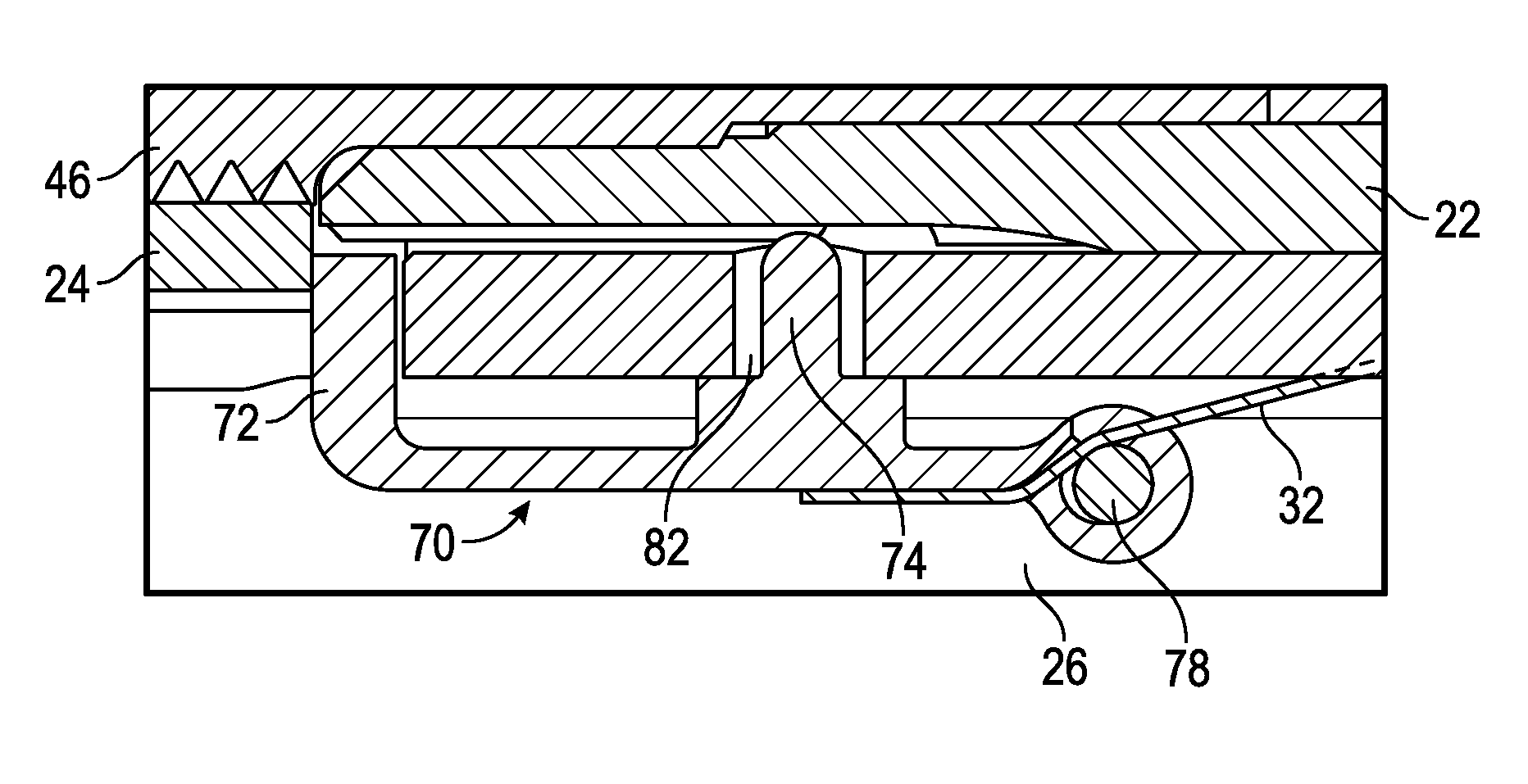

A machine gun assembly includes, but is not limited to, a receiver, a barrel extension, and an interlock element. The barrel extension is mounted to the receiver and moves between forward and retracted positions with respect to the receiver. The barrel extension is configured for quick-release engagement with a barrel. The interlock element is mounted to the receiver and moves between a blocking position and a clear position. The interlock element has a blocking portion positioned to obstruct movement of the barrel extension to the forward position while in the blocking position and the blocking portion is positioned to permit movement of the barrel extension to the forward position while in the clear position. The interlock element moves to the blocking position when the barrel disengages from the barrel extension and moves to the clear position when the barrel is correctly engaged with the barrel extension.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F41C Class
- 200 Applications Filed
- 179 Patents Issued To-Date
- 89.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F41C Class
- 23.15 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 1, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 1, 2029 |
