Method for controlling the triggering of ignition in an internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 1, 2017
Issued Date -
N/A
app pub date -
Jun 15, 2015
filing date -
Jun 17, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

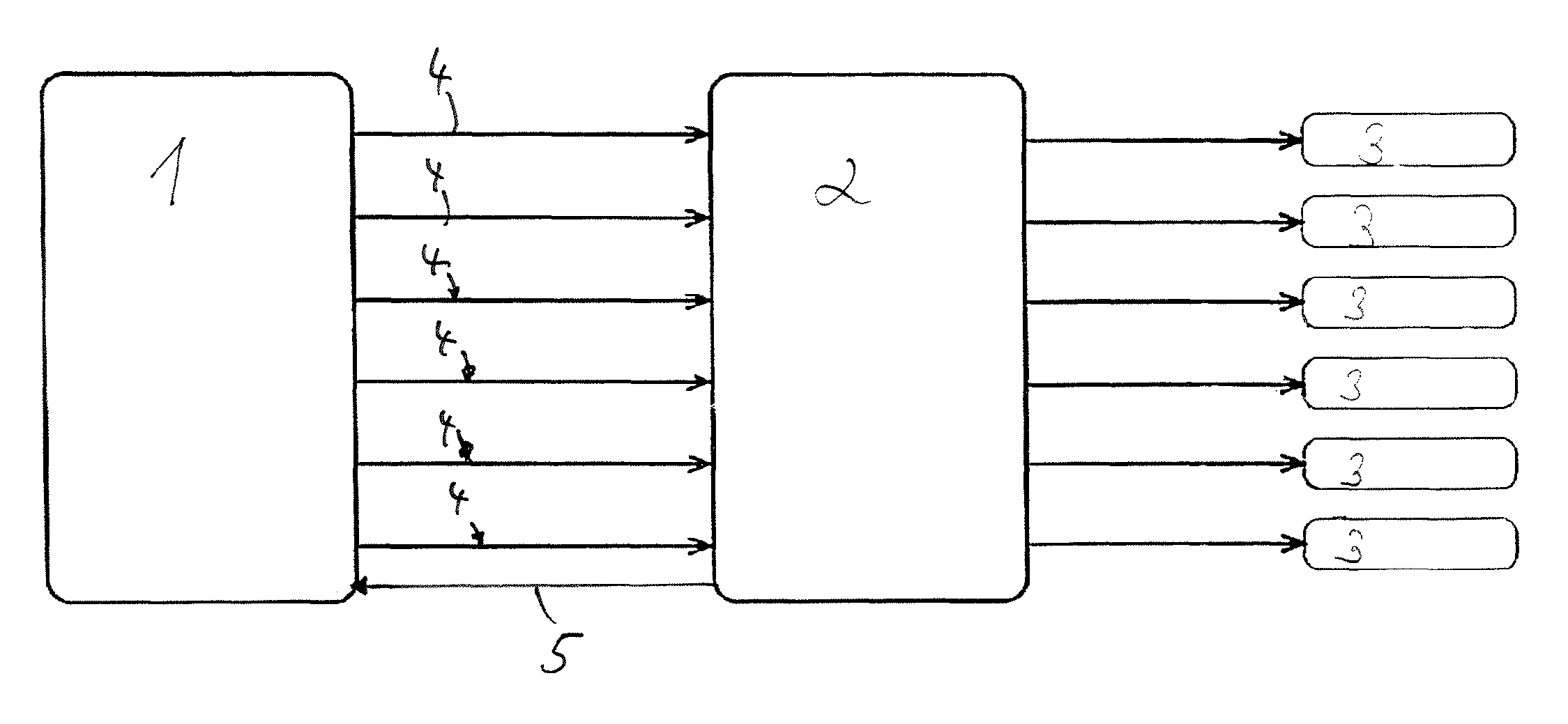

A method for controlling an internal combustion engine. Target ignition times for the individual cylinders are given by an engine control device through trigger signals transmitted to the ignition control device. After receiving a trigger signal, the ignition control device activates the ignition device associated with this trigger signal to effect ignition in the respective cylinder. The ignition control device stores a firing order in which an ignition is to be cyclically effected in the individual cylinders, and it is checked whether trigger signals for all cylinders are received in the stored firing order, and if not, a substitutional ignition time is calculated for the at least one cylinder for which no trigger signal has been received, from at least two trigger signals for the cylinders or one of the remaining cylinders, and the respective ignition device or ignition devices are activated according to the calculated substitutional ignition time.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F02P Class
- 266 Applications Filed
- 213 Patents Issued To-Date
- 80.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02P Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 1, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 1, 2029 |
