Convertible vehicle top having a storage space lid
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 1, 2017
Issued Date -
N/A
app pub date -
Jun 30, 2016
filing date -
Jul 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

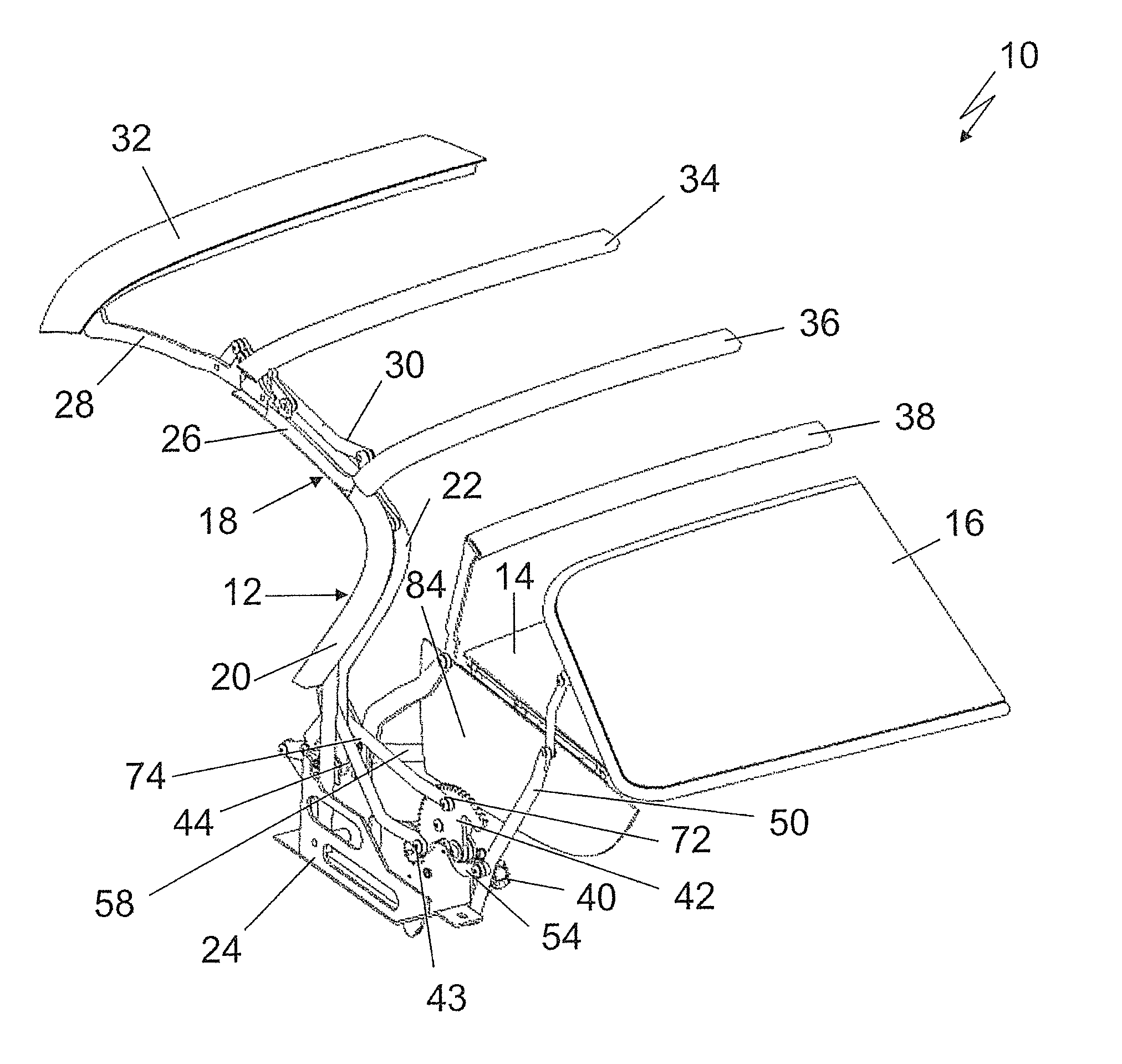

A top of a convertible vehicle includes a top linkage adjustable between a closed position and a storage position. The top linkage is stored in a rear-side top storage space, which is closable by a storage space lid, which is pivotably mounted on a vehicle-fixed single-part or multipart main bearing via a link mechanism on each of its two sides with respect to a vertical longitudinal center plane of the top. The top linkage has a linkage mechanism on each of its two sides with respect to the vertical longitudinal center plane of the top. Each linkage mechanism is pivotably mounted on the respective vehicle-fixed main bearing driven by a main drive arranged on the main bearing. The link mechanisms of the storage space lid are arranged on both sides and driven by the main drive arranged on the respective main bearing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60J Class
- 863 Applications Filed
- 670 Patents Issued To-Date
- 77.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60J Class
- 16.11 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 1, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 1, 2029 |
