Ultrasonic lesion feedback, antipop monitoring, and force detection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 1, 2017
Issued Date -
N/A
app pub date -
Mar 15, 2013
filing date -
Apr 23, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

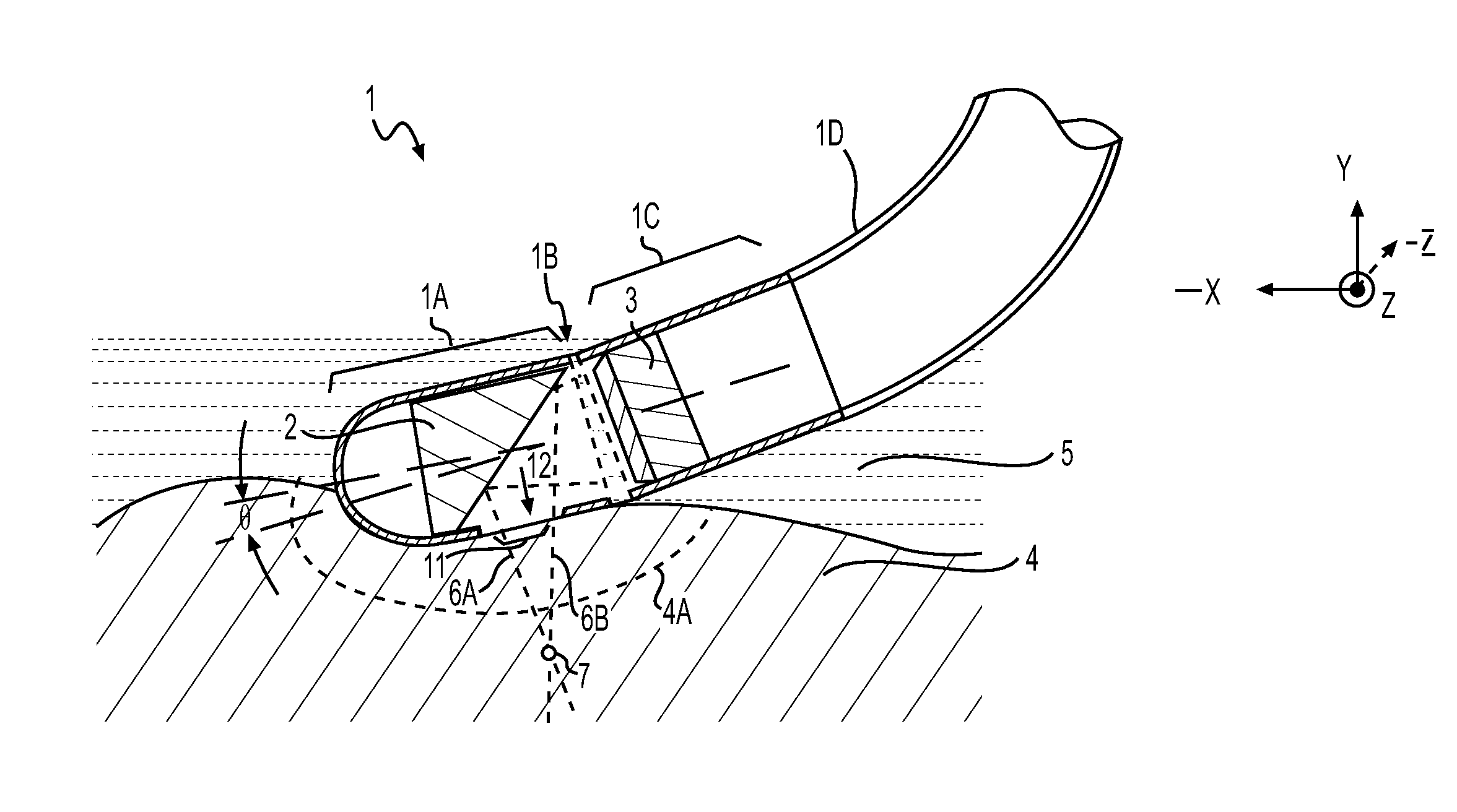

An ablation catheter comprises: an elongated catheter body extending longitudinally between a proximal end and a distal end along a longitudinal axis; a distal member disposed adjacent the distal end, the distal member including an ablation element to ablate a biological member; one or more acoustic transducers disposed in the distal member and each configured to direct an acoustic signal toward a respective target ablation region and receive reflection echoes therefrom; and an acoustic redirection member disposed in the distal member to at least partially redirect the acoustic signal from at least one of the acoustic transducers toward a tissue target. The distal member includes a most-distal portion, a proximal portion, and a deflectable portion between the most-distal portion and proximal portion to permit deflection between the most-distal portion and proximal portion of the distal member. The transducers and redirection member are mounted on opposite sides of the deflectable portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- A61B Class
- 12166 Applications Filed
- 10875 Patents Issued To-Date
- 89.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 1, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 1, 2029 |
