Wafer-based light source parameter control
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 25, 2017
Issued Date -
N/A
app pub date -
Jun 4, 2014
filing date -
Jun 11, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

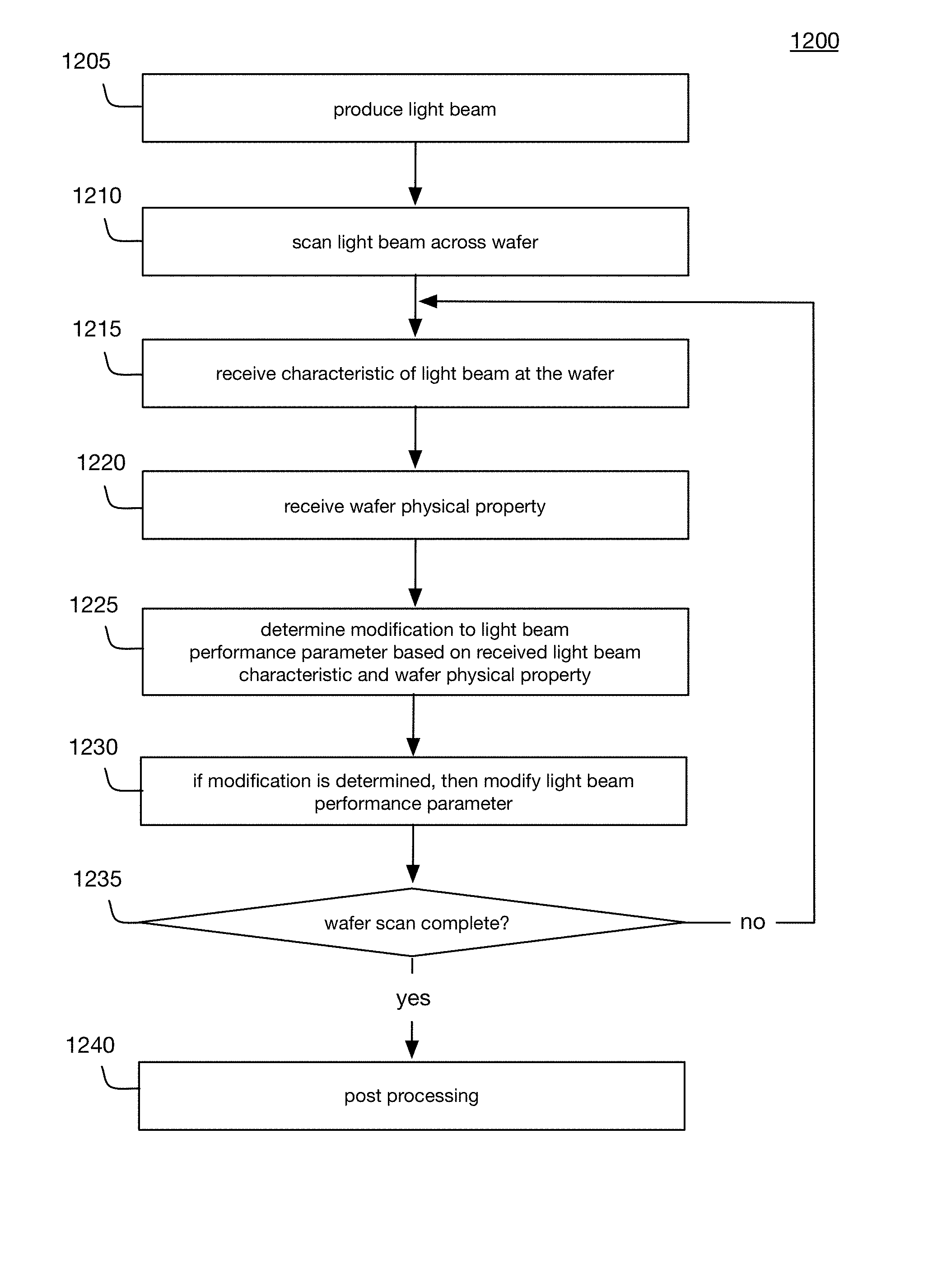

A photolithography method includes instructing an optical source to produce a pulsed light beam; scanning the pulsed light beam across a wafer of a lithography exposure apparatus to expose the wafer with the pulsed light beam; during scanning of the pulsed light beam across the wafer, receiving a characteristic of the pulsed light beam at the wafer; receiving a determined value of a physical property of a wafer for a particular pulsed light beam characteristic; and based on the pulsed light beam characteristic that is received during scanning and the received determined value of the physical property, modifying a performance parameter of the pulsed light beam during scanning across the wafer.
