System and method for ensuring cutting accuracy in a mailpiece wrapper
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 25, 2017
Issued Date -
N/A
app pub date -
Dec 19, 2013
filing date -
Dec 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

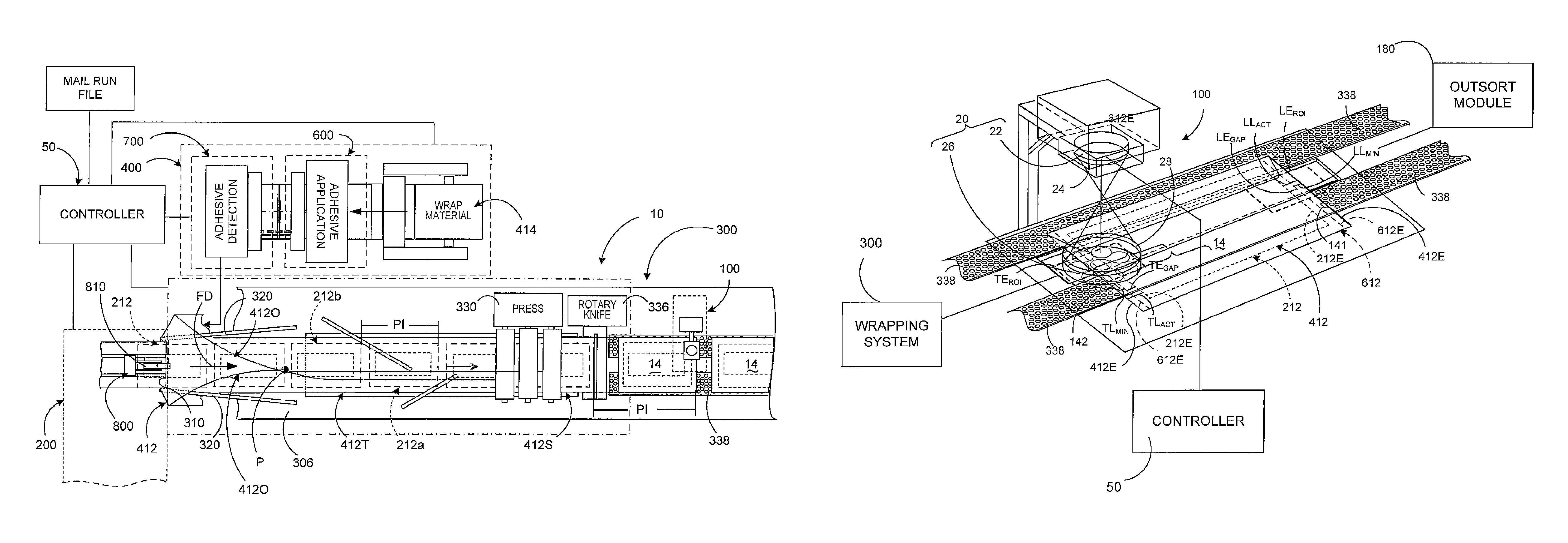

An improved mailpiece fabrication system assembles finished mailpieces from content materials and from wrapping materials. The wrapping materials include printed cut quality marks at predetermined positions relative to cut lines. Content materials are placed on the continuous web. The continuous web is then folded and sealed around the content materials to form a continuous tube enclosing the content materials. A cutter downstream of the conveyance deck cuts individual envelopes from the continuous tube of folded wrapping material. A downstream imaging device captures image data indicative of a cut quality mark on the individual envelopes. A controller receives the captured image data from the imaging device and compares an actual dimension of an imaged cut quality mark with an expected dimension of a cut quality mark. An error signal is produced if the difference is not within a predetermined tolerance.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2013 Application Filing Year
- B43M Class
- 23 Applications Filed
- 22 Patents Issued To-Date
- 95.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B43M Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 25, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 25, 2029 |
