Piezoelectric sheet, method for manufacturing piezoelectric sheet, and manufacturing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2017
Grant Date -
May 3, 2012
app pub date -
Dec 14, 2011
filing date -
Jun 15, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

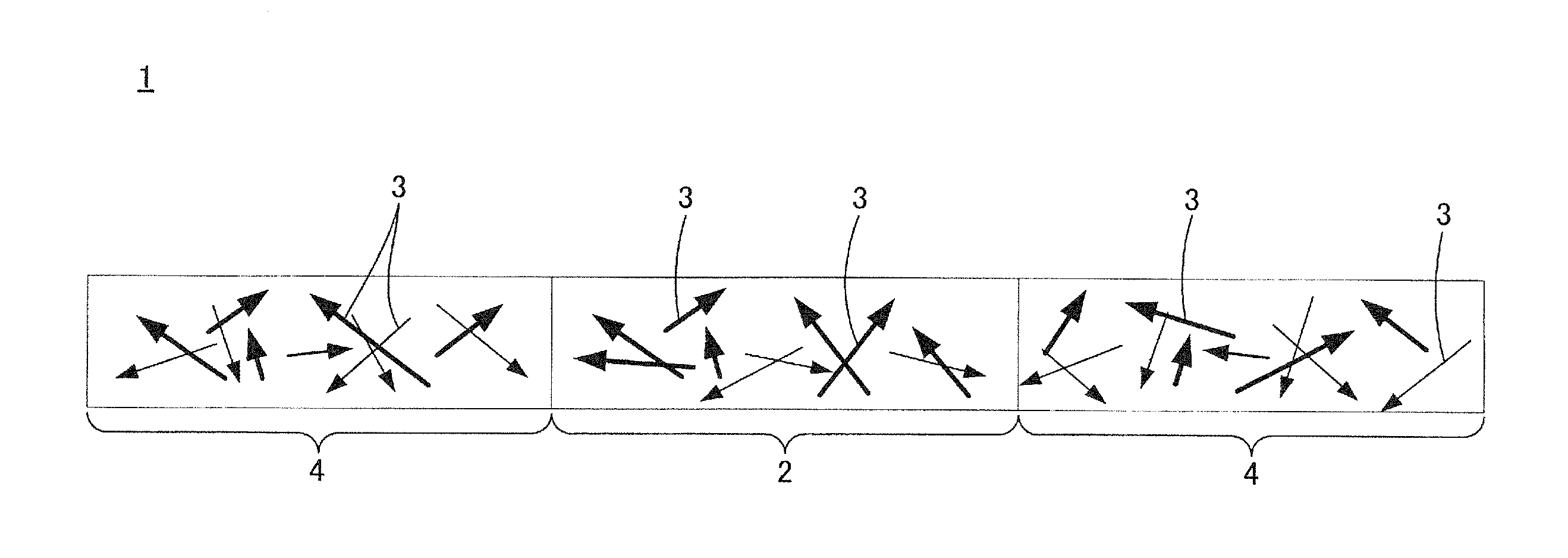

A specific region of a polylactic acid sheet is heated by a microwave. To allow the polylactic acid sheet to exhibit piezoelectricity in the thickness direction of the polylactic acid sheet, a high voltage is applied to the heated polylactic acid sheet in the thickness direction of the polylactic acid sheet, and thereby the screw axes of at least a part of the polylactic acid molecules are relatively aligned with the thickness direction. Then the polylactic acid sheet is rapidly cooled, and thereby the polylactic acid molecules are immobilized. The same step is executed for other regions of the polylactic acid sheet, and thereby piezoelectricity is imparted to a wide area of the polylactic acid sheet in the thickness direction. The resultant piezoelectric sheet is capable of exhibiting a high piezoelectricity in the thickness direction.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 18, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 18, 2029 |
