Lighting device having sealing member covering inside of wall member surrounding light emitting elements
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2017
Issued Date -
N/A
app pub date -
Dec 28, 2016
filing date -
Mar 28, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

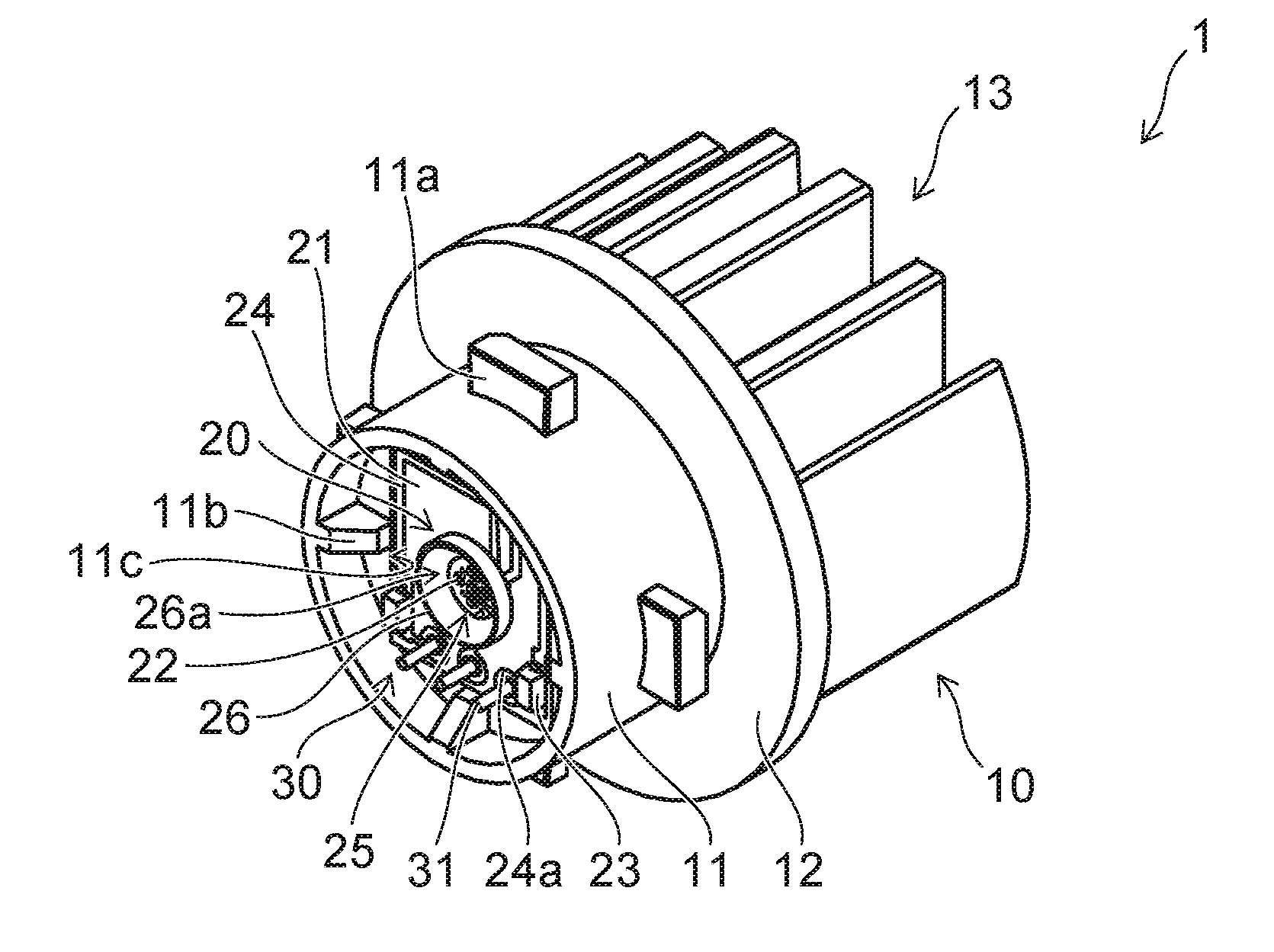

A lighting device includes a body section; a substrate provided in the body section; a wiring pattern provided on a surface of the substrate and including wiring pads; and light emitting elements provided on the wiring pattern and including electrodes in the vicinity of a circumferential edge of a surface opposite to a side on which the wiring pattern is provided. The lighting device also includes wirings that respectively connect the wiring pads and a plurality of electrodes; a surrounding wall member provided to surround the light emitting elements and having an annular shape; and a sealing section provided to cover the inside of the surrounding wall member. At least a part of the light emitting elements is connected in series. The electrodes are respectively positioned on or inside a circumference passing through centers of the light emitting elements which are connected in series.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP5963001 | Mar 28, 2013 |
| WO | A1 | WO2014155765 | Aug 22, 2013 |
| CN | U | CN205026596 | Aug 22, 2013 |
| EP | B1 | EP2980473 | Aug 22, 2013 |
| US | B2 | US9572204 | Aug 22, 2013 |
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
