Method of measuring vertical beam profile in an ion implantation system having a vertical beam angle device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2017
Grant Date -
Jun 30, 2016
app pub date -
Dec 17, 2015
filing date -
Dec 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

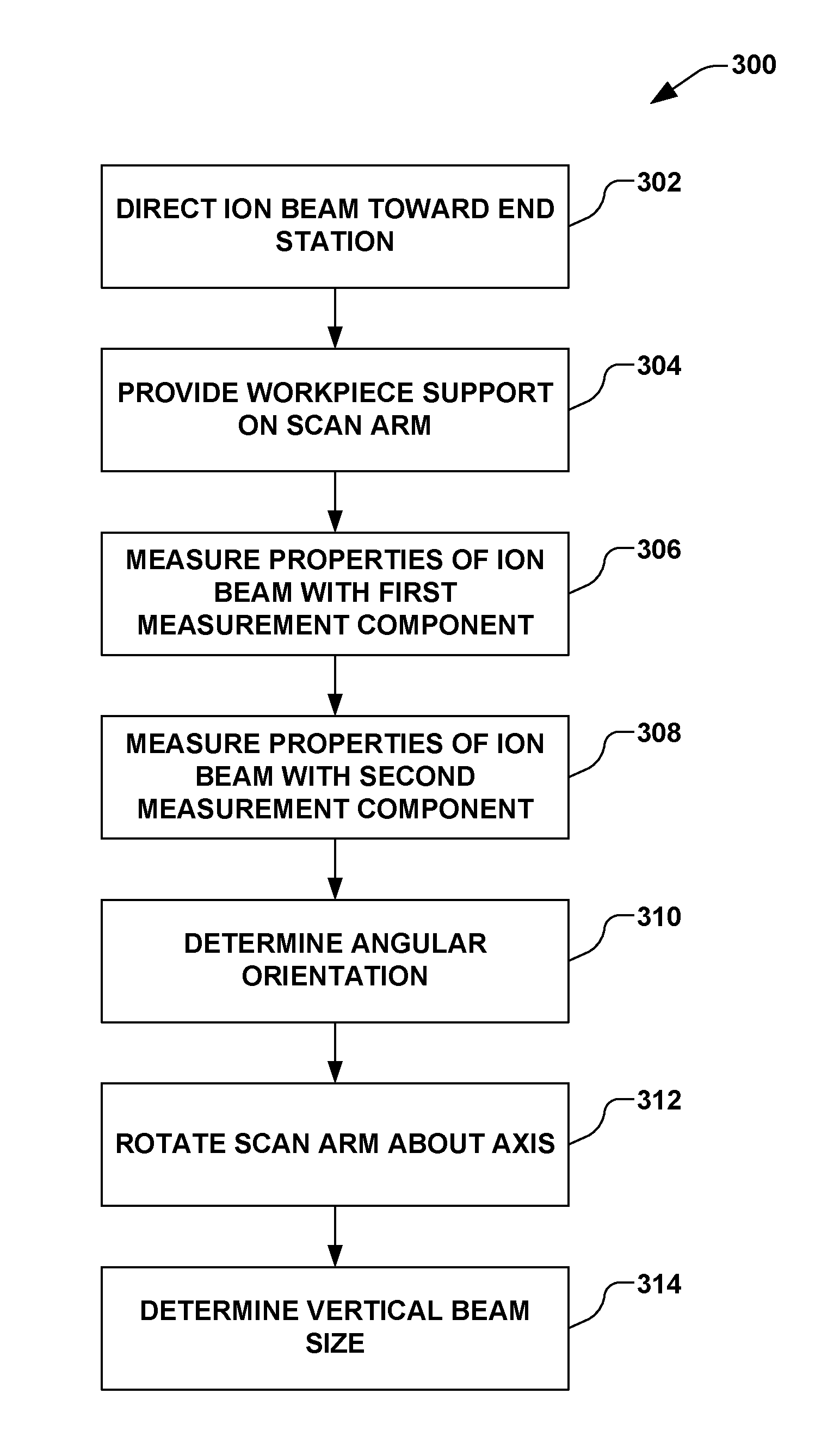

An ion implantation system measurement system has a scan arm that rotates about an axis and a workpiece support to translate a workpiece through the ion beam. A first measurement component downstream of the scan arm provides a first signal from the ion beam. A second measurement component with a mask is coupled to the scan arm to provide a second signal from the ion beam with the rotation of the scan arm. The mask permits varying amounts of the ion radiation from the ion beam to enter a Faraday cup based on an angular orientation between the mask and the ion beam. A blocking plate selectively blocks the ion beam to the first faraday based on the rotation of the scan arm. A controller determines an angle and vertical size of the ion beam based on the first signal, second signal, and orientation between the mask and ion beam as the second measurement component rotates.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H01J Class
- 2290 Applications Filed
- 1843 Patents Issued To-Date
- 80.49 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01J Class
- 25.25 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 18, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 18, 2029 |
