Processing organic materials
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2017
Grant Date -
Oct 23, 2014
app pub date -
Jun 30, 2014
filing date -
Apr 10, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

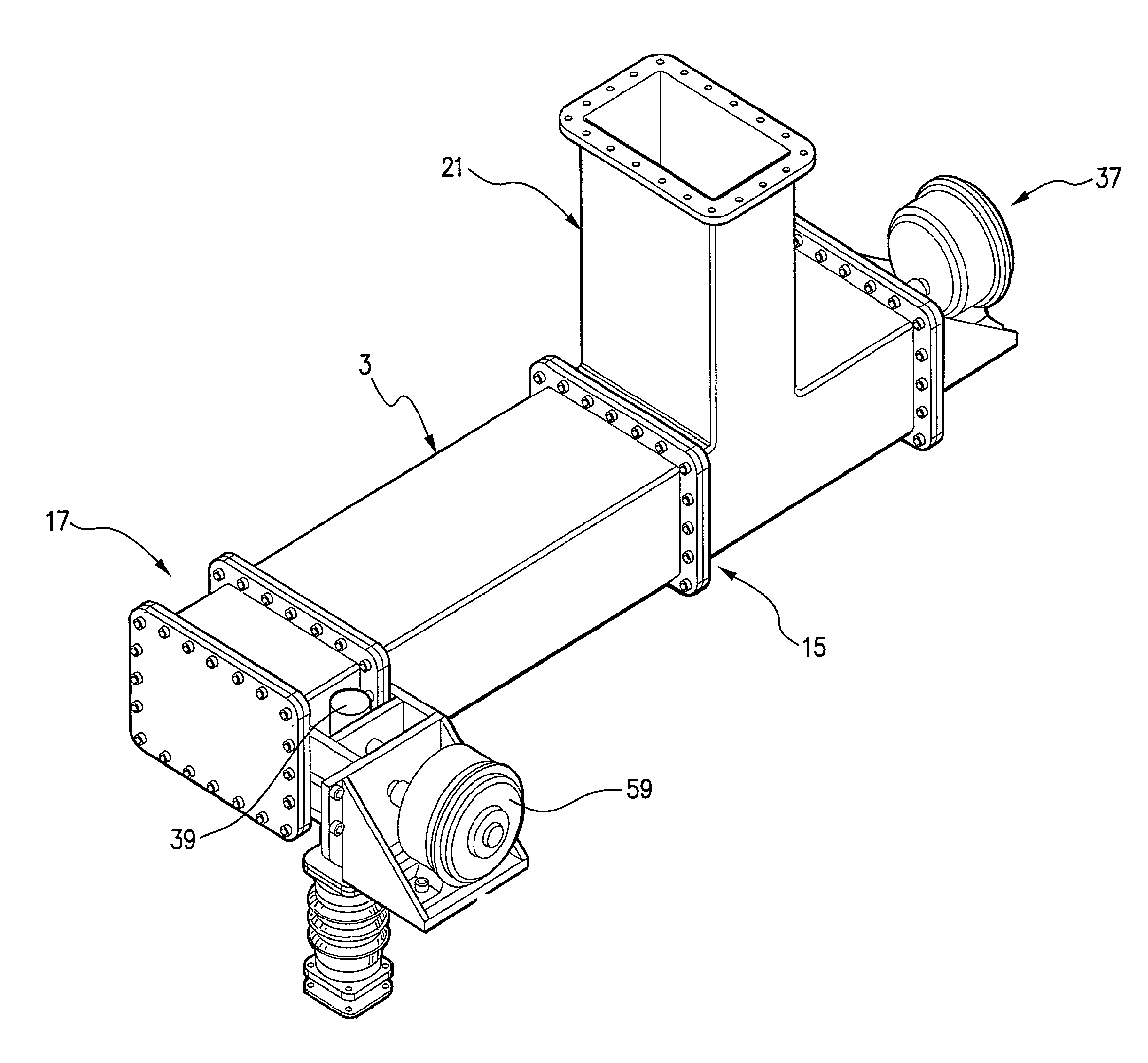

A method and an apparatus for pyrolysing a solid organic feed material are disclosed. Solid organic material is moved through a reaction chamber and exposed to a temperature profile within the chamber that dries and pyrolyses the organic material and releases water vapour and a volatile products gas phase. The water vapour phase and the volatile products gas phase are moved counter-current to the solid organic material so that the water vapour phase and condensable components of the volatile products gas phase condense in cooler upstream sections of the chamber and form a liquid water product and a separate liquid oil product. The liquid water product is discharged via an outlet along the length of the chamber and a dried and pyrolysed solid product is discharged from a downstream outlet in the chamber.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- C10F Class
- 2 Applications Filed
- 2 Patents Issued To-Date
- 100 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C10F Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 18, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 18, 2029 |
