Method for producing porous polymer film and porous polymer film
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2017
Issued Date -
N/A
app pub date -
Mar 26, 2014
filing date -
Mar 27, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

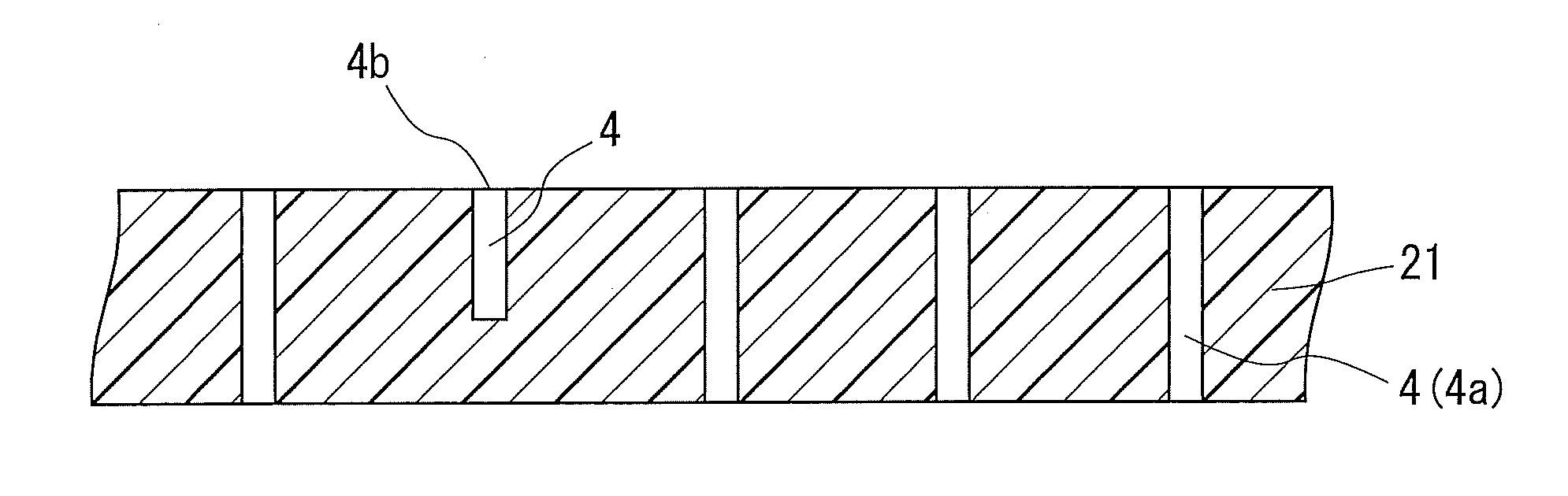

The method of the present disclosure is a method for producing a porous polymer film including: irradiating a strip-shaped polymer film with an ion beam while moving the polymer film transversely to the ion beam, so as to form a polymer film that has collided with ions in the beam; and chemically etching the formed polymer film so as to form openings and/or through holes corresponding to tracks left by the colliding ions in the polymer film. The ion beam (11) with which the polymer film is irradiated is obtained by folding a tail of an original beam (51) inwardly toward a center of the original beam by nonlinear focusing. The original beam is composed of ions accelerated in a cyclotron and has a cross-sectional intensity distribution profile in which an intensity is maximum at the center of the original beam and continuously decreases from the center toward the tail of the original beam, and the profile is an intensity distribution profile in a cross section perpendicular to a direction of the original beam.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- C08J Class
- 1723 Applications Filed
- 1369 Patents Issued To-Date
- 79.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C08J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 18, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 18, 2029 |
