Machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2017
Grant Date -
Nov 19, 2015
app pub date -
May 15, 2015
filing date -
May 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

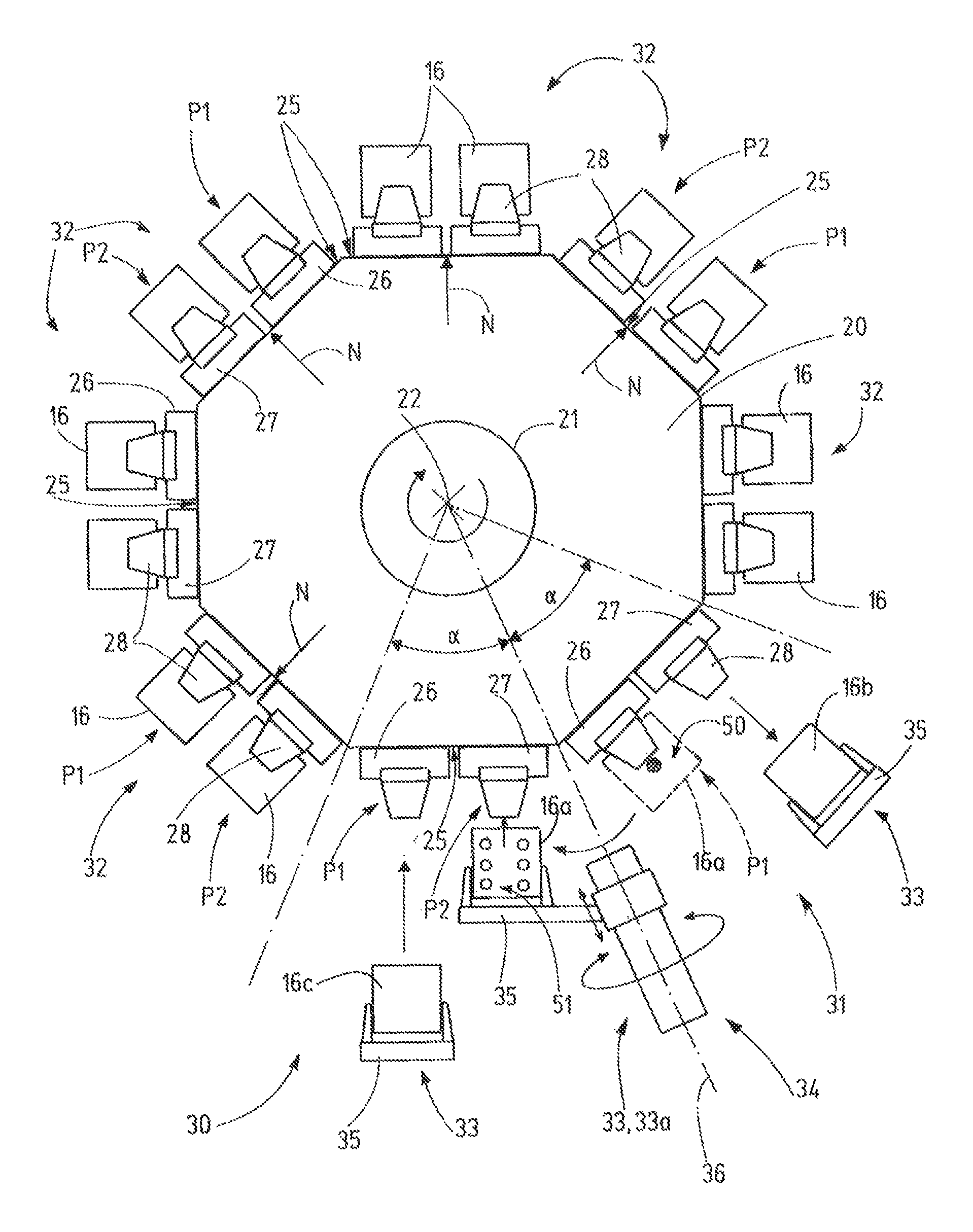

The invention relates to a machine tool as well as to a method for operating the machine tool. The machine tool comprises a workpiece carrier (20) that can be incrementally rotated about an incremental advance axis (22) and has several carrier sides (25). A first workpiece chuck unit (26) for holding a workpiece in a first position (P1) and a second workpiece chuck unit (27) for holding a workpiece in a second position (P2) are arranged on each carrier side (25). In each angular position or incremental advance position of the workpiece carrier (20), one carrier side (25) is in a loading station (30), one carrier side (25) is in an unloading station 31, and the respectively other carrier sides (25) are in respectively one work station (32). A workpiece changing device (34) is provided, said device moving a partially machined workpiece (16a) out of the first position (P1) in the unloading station (31) into the second position (P2) in the loading station. The position change of the partially machined workpiece (16a) preferably also takes place during the incremental advance movement of the workpiece carrier (20). Preferably, the partially machined workpiece (16a) can be turned in doing so.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B23Q Class
- 548 Applications Filed
- 424 Patents Issued To-Date
- 77.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 31.14 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 18, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 18, 2029 |
