Method for filling a microfluidic device using a dispensing system and corresponding test system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2017
Grant Date -
Mar 3, 2016
app pub date -
Apr 23, 2014
filing date -
Apr 25, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

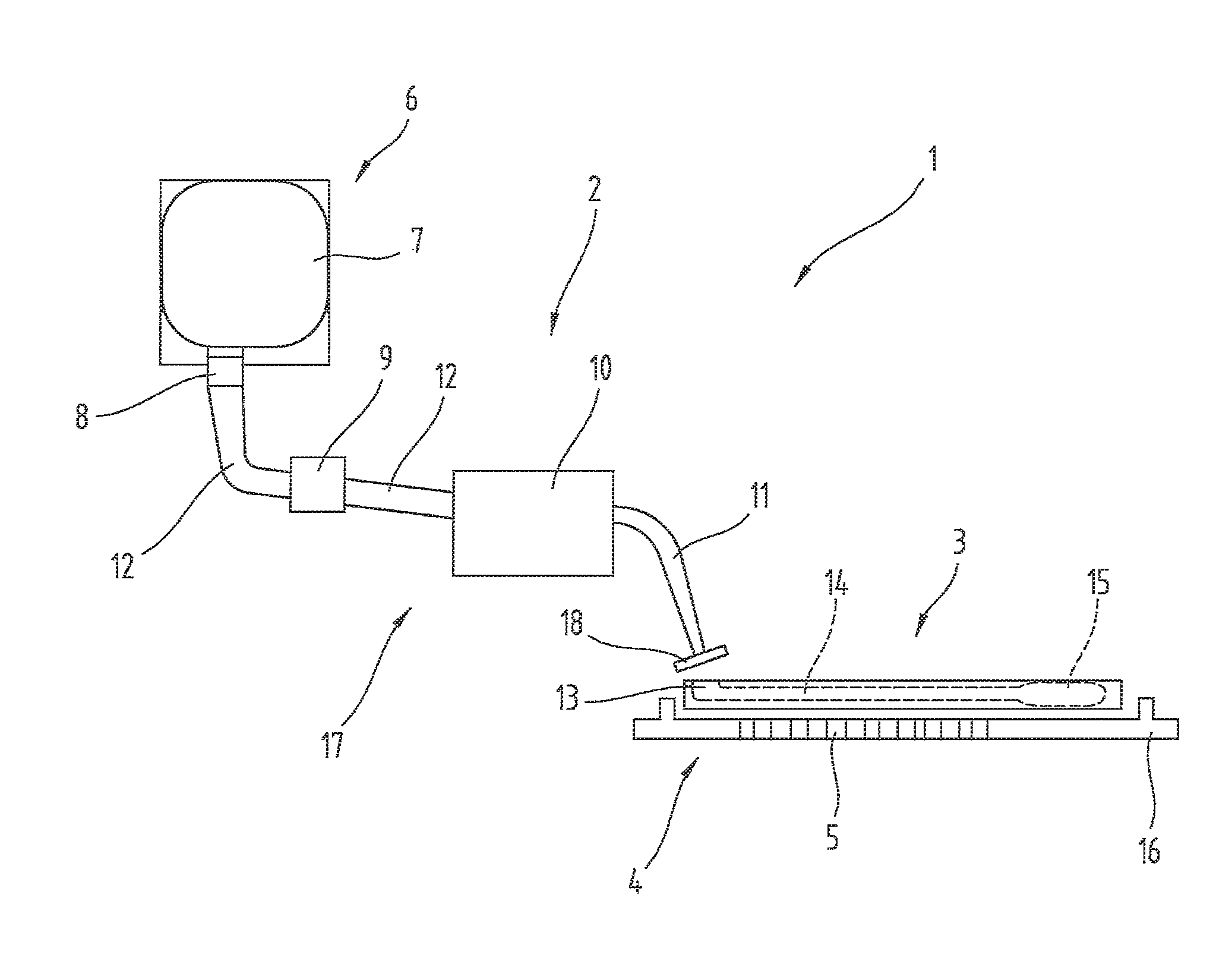

The invention relates to a method of filling nozzles (11) of a dispensing system (2) of a test system (1) comprising a dispensing system (2) and a microfluidic device (3) comprising at least the following steps: (a) transporting the solution from the container (6) via the nozzle (11) of the dispensing system (2) to the sample application opening (13) of the microfluidic device (3) by means of a micro-pump (10), (b) further transporting the solution into the measuring region of the microfluidic passage (14) of the microfluidic device (3), (c) measuring a light signal in the measuring region of the microfluidic device (3) by means of at least one photosensitive sensor (4) with a plurality of photodetectors (5), and (d) deactivating the micro-pump (10) when the light signal and/or a change in the light signal is detected.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B01L Class
- 1025 Applications Filed
- 863 Patents Issued To-Date
- 84.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B01L Class
- 26.25 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 18, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 18, 2029 |
