Straight tube LED lamp, lamp socket set, and lighting fixture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2017
Grant Date -
May 16, 2013
app pub date -
Jun 10, 2011
filing date -
Jun 28, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

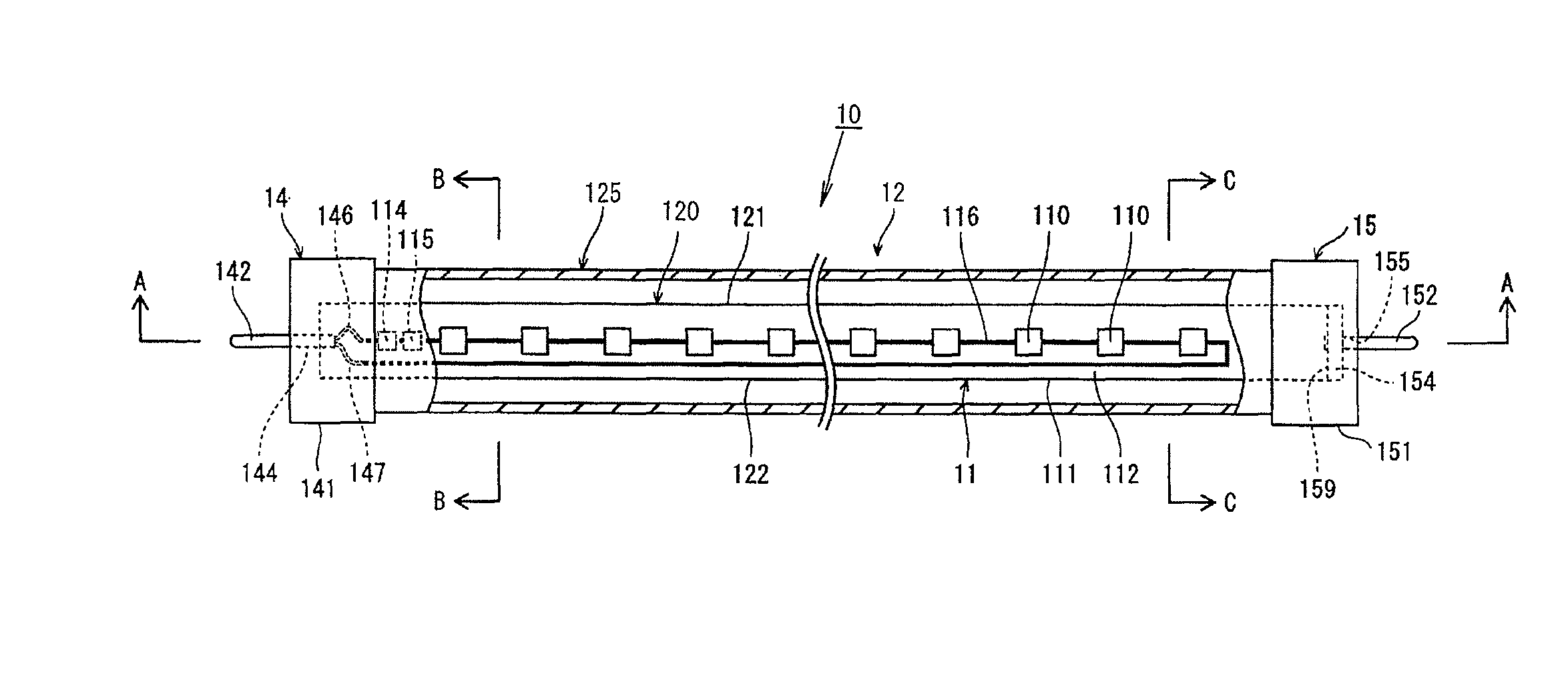

A straight tube LED lamp includes: a straight tube in which a plurality of light emitting diodes is housed; a first cap for forming a power feeding connection to the plurality of light emitting diodes, provided on one axial direction end side of the straight tube; and a second cap for grounding, provided on another axial direction end side of the straight tube. A first terminal for forming an electrical connection to a power feeding terminal of a first lamp socket is provided in the first cap. A second terminal for forming an electrical connection to a grounding terminal of a second lamp socket is provided in the second cap.
First Claim
Other Claims data not available
Family
International Classification(s)
- H01J:ELECTRIC DISCHARGE TUBES OR DISCHARGE LAMPS
- F21V:FUNCTIONAL FEATURES OR DETAILS OF LIGHTING DEVICES....
- H05B:ELECTRIC HEATING; ELECTRIC LIGHTING NOT OTHERWISE ....
- F21Y:INDEXING SCHEME ASSOCIATED WITH SUBCLASSES F21L,....
- F21K:LIGHT SOURCES NOT OTHERWISE PROVIDED FOR
- H01R:ELECTRICALLY-CONDUCTIVE CONNECTIONS; STRUCTURAL AS....
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01J Class
- 25.25 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2029 |
