Power consumption mode guiding device and system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2017
Grant Date -
Jun 25, 2015
app pub date -
Mar 23, 2012
filing date -
Mar 23, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

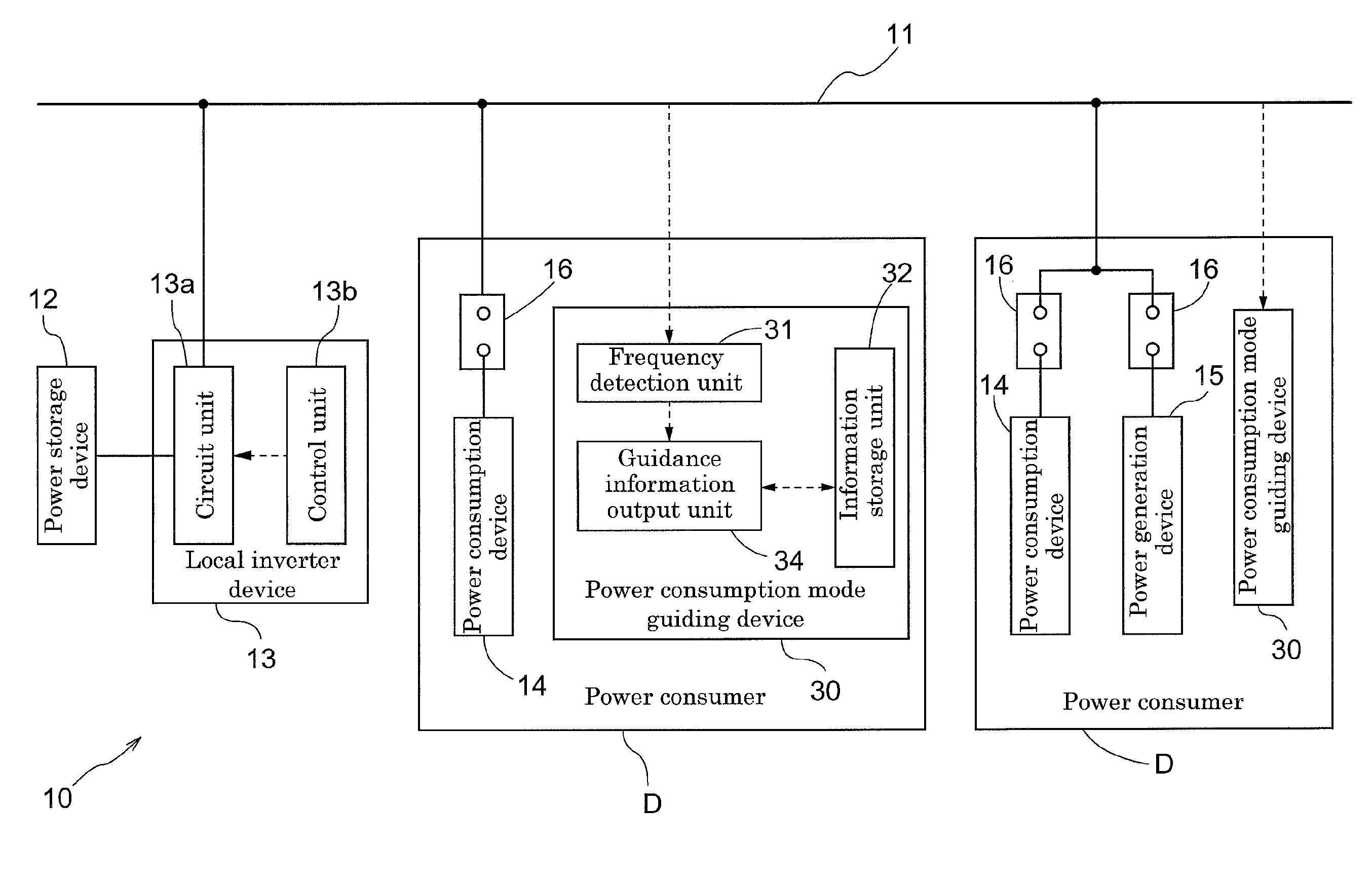

A power consumption mode guiding device includes a local system wherein the frequency of power on an AC line, is controlled at a target frequency determined according to the state of charge of a power storage device. The power consumption mode guiding device includes a frequency detection unit that detects the actual frequency of power on the AC line, an information storage unit in which guidance information for guiding the mode of use of a power consumption device by a power consumer (D) to a prescribed mode are stored in advance in association with frequency information obtained from detection results from the frequency detection unit, and a guidance information output unit that reads out, from the information storage unit, the guidance information associated with the frequency information obtained from the detection result from the frequency detection unit, and outputs the guidance information to the power consumer (D).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2029 |
