Non-jamming stop module for high revolution applications
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2017
Grant Date -
Mar 30, 2017
app pub date -
Sep 29, 2015
filing date -
Sep 29, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

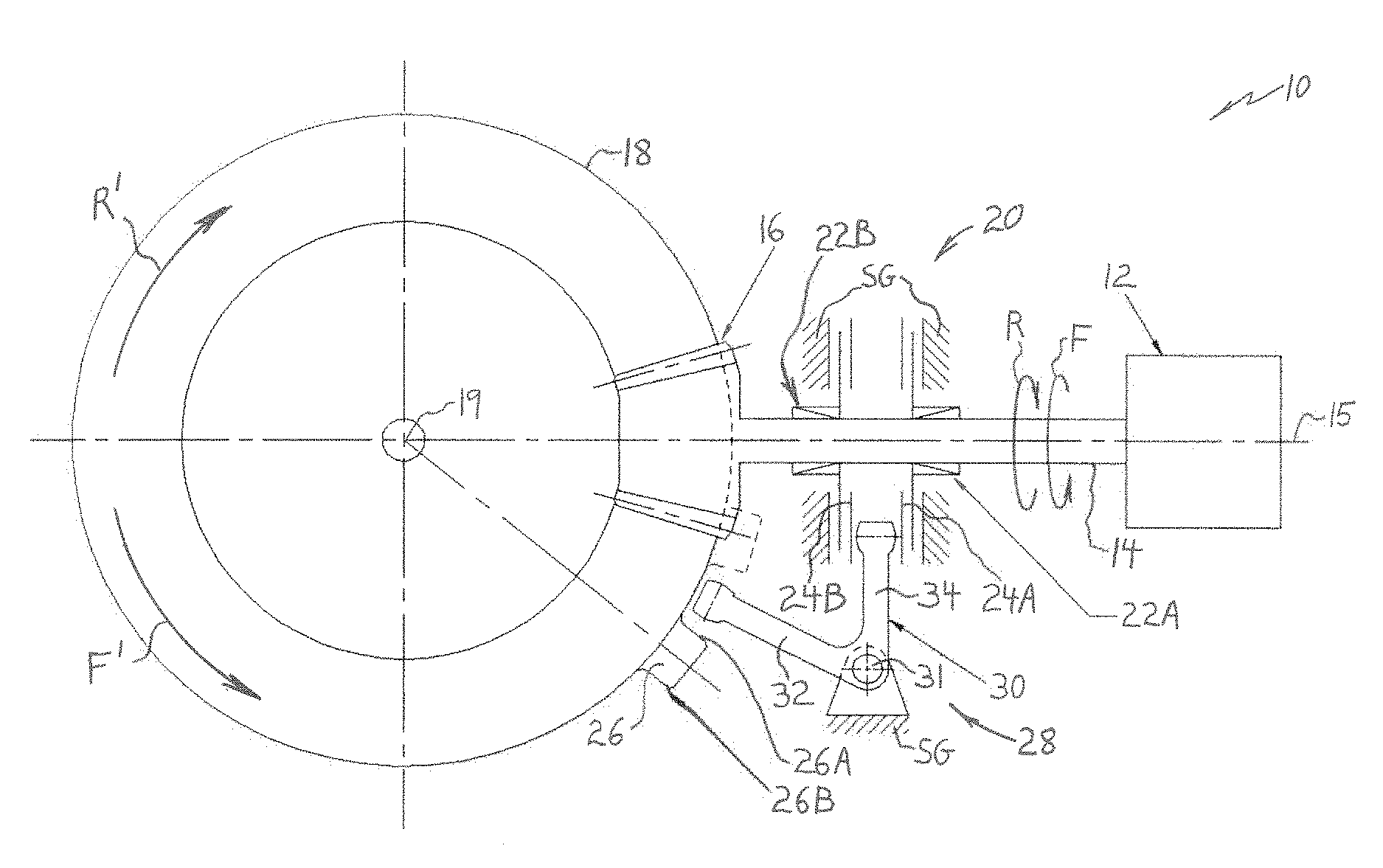

A stop mechanism for a drive system includes a one-way clutch, a brake, a stop feature, and a linkage. The one-way clutch couples with a drive shaft of the system when the drive shaft is rotating in a first direction but not in an opposite direction. The brake is connected to the drive shaft through the first one-way clutch and is operable to stop drive shaft rotation in the first direction. The stop feature is carried by an output element driven by the drive shaft and actuates the linkage to operate the first brake when the output element reaches a predetermined limit position when moving in a direction corresponding to the first drive direction of the drive shaft. A bidirectional stop mechanism is provided by adding a second one-way clutch, a second brake, and a second stop feature arranged to act in the opposite rotational direction of the drive shaft.
