Portable manipulation command input device and apparatus equipped with manipulation command input device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2017
Grant Date -
Aug 13, 2015
app pub date -
Oct 3, 2013
filing date -
Oct 10, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

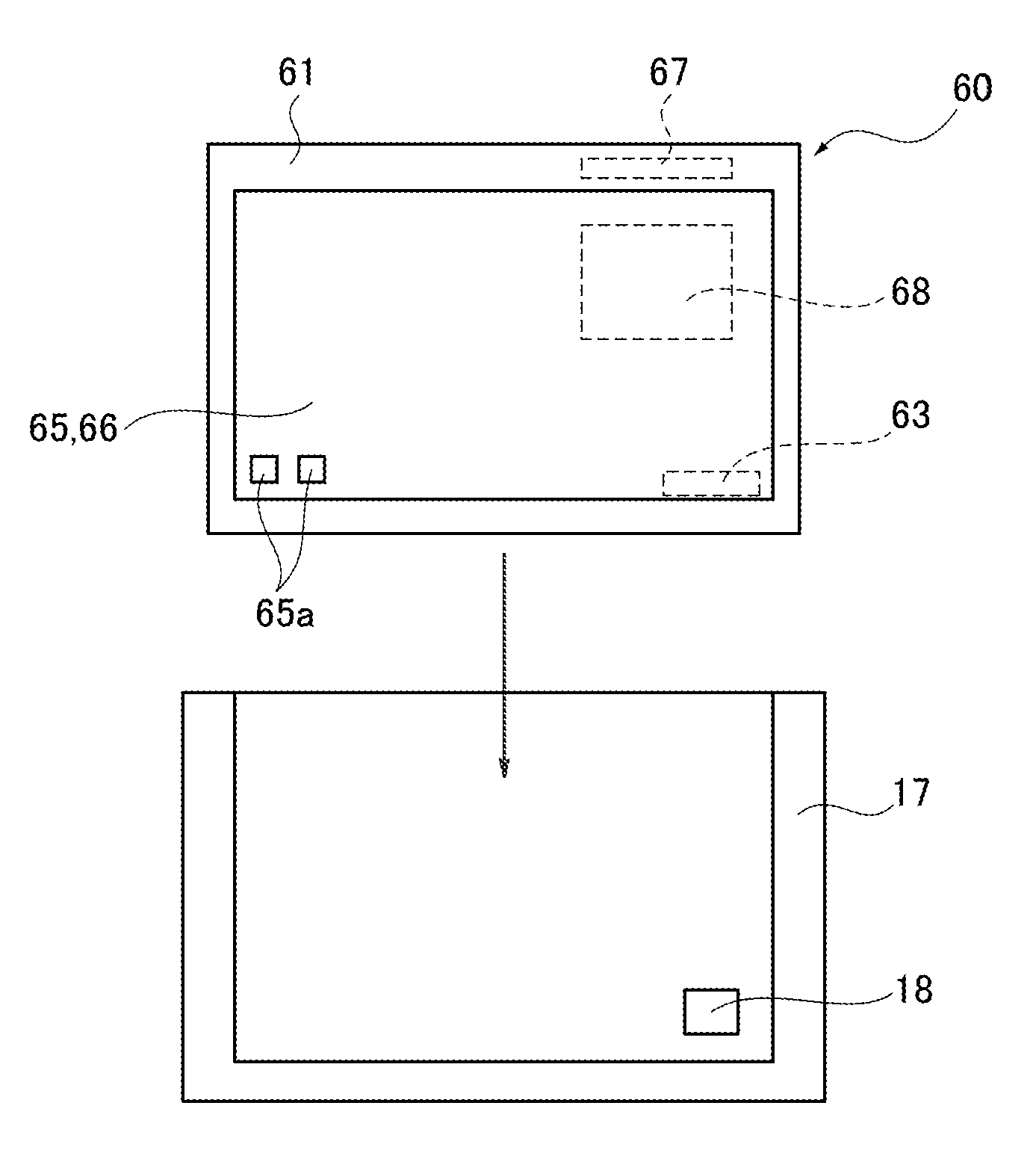

A portable manipulation command input device, including a sub-console panel attachable to and removable from an automatic lathe apparatus main unit, and includes an input unit to receive input of a manipulation command to the automatic lathe apparatus main unit, a display unit to display information on the automatic lathe apparatus main unit, and a radio communication unit to communicate with the automatic lathe apparatus main unit. The sub-console panel includes a detection unit and a control unit formed with the automatic lathe apparatus main unit. The detection unit includes a radio ID tag and a radio ID reader detecting the sub-console panel being placed within a predetermined range of the automatic lathe apparatus main unit. Depending on a detection result by the detection unit, the control unit allows or restricts manipulations of the automatic lathe apparatus main unit, and allows display of the information even when restricting the manipulations.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G05B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2029 |
