Non-contact egg identification system for determining egg viability, and associated method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2017
Grant Date -
Oct 13, 2016
app pub date -
Jun 21, 2016
filing date -
Nov 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

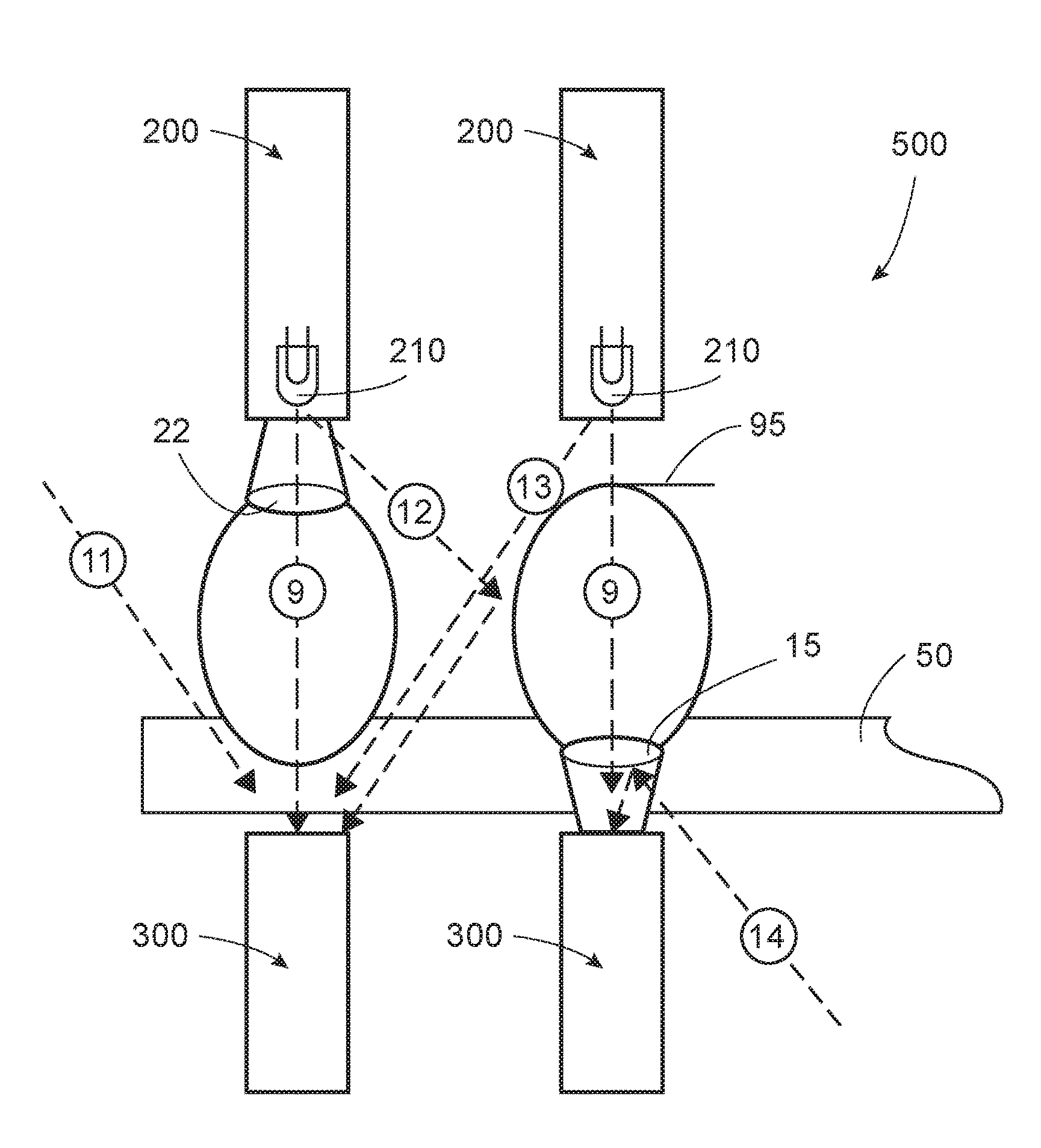

An egg identification system for determining viability of an avian egg is provided. Such a system includes an emitter assembly configured to emit electromagnetic radiation toward an egg. A detector assembly is axially aligned with the emitter assembly to detect electromagnetic radiation transmitted through the egg. The detector assembly is spaced-apart from the egg during operation thereof such that the detector assembly does not contact the egg. The detected electromagnetic radiation is used to generate an output signal. The output signal is processed to determine whether there exists a periodic variation or an aperiodic perturbation in an intensity of the electromagnetic radiation transmitted through the egg corresponding to action of a heart or embryo movement, wherein the existence of the periodic variation or aperiodic perturbation indicates that the egg is viable. An associated method is also provided.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2016 Application Filing Year
- G01J Class
- 1559 Applications Filed
- 1274 Patents Issued To-Date
- 81.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G01J Class
- 18.21 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2029 |
