Helically wound pull through gun cleaning device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2017
Issued Date -
N/A
app pub date -
Feb 2, 2016
filing date -
Feb 3, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

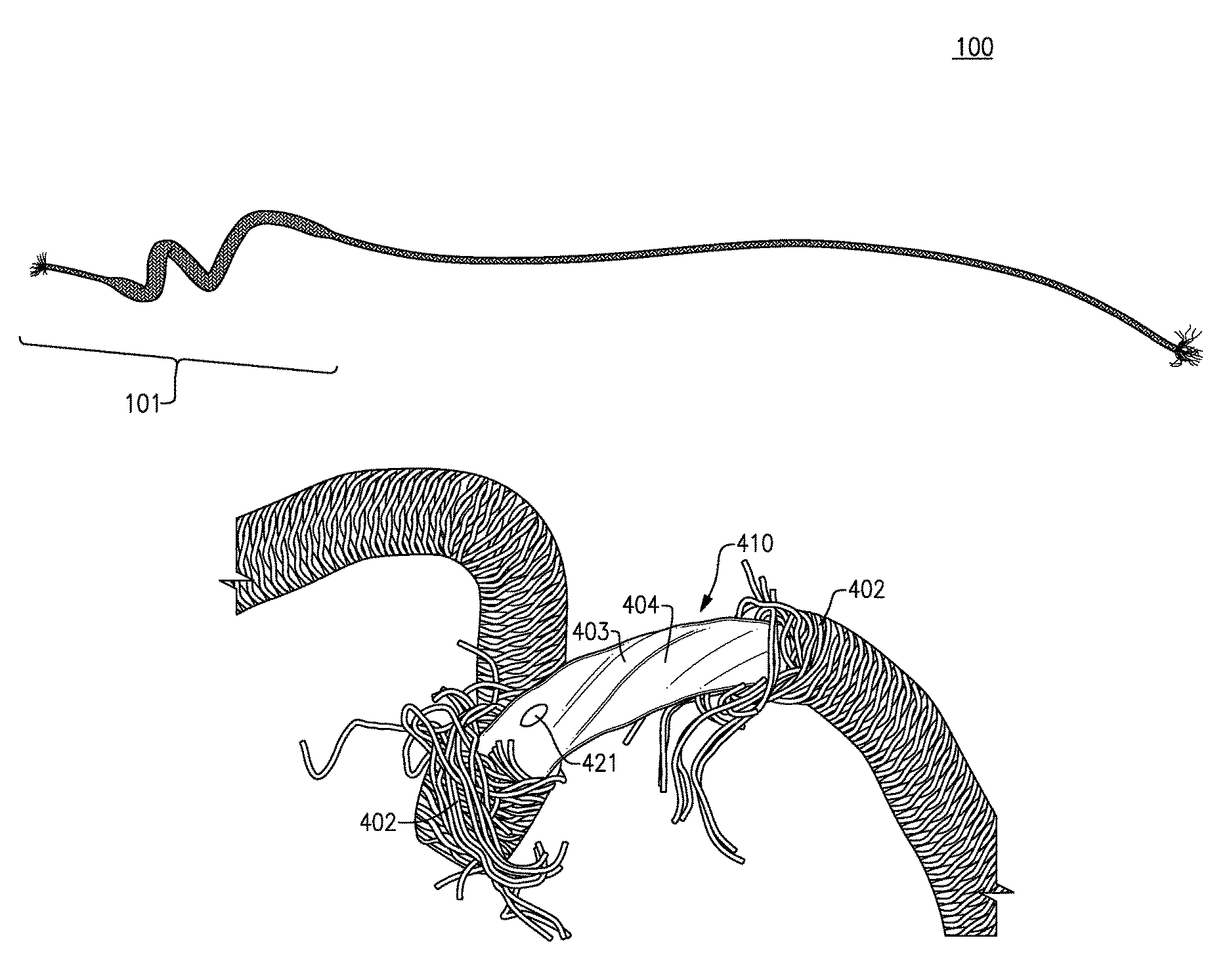

A helically wound pull through gun cleaning device includes a central member. At least one helical over-mold is overmolded over a portion of the central member and defines a helical path. The central member substantially conforms to the helical path. A tubular woven sheath overlays and conforms to the central member and is close woven over the central member and the at least one overmolded helical section.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- F41A Class
- 610 Applications Filed
- 510 Patents Issued To-Date
- 83.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F41A Class
- 20.31 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2029 |
