FER locking system for sliding windows
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2017
Grant Date -
Mar 17, 2016
app pub date -
Sep 21, 2015
filing date -
Mar 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

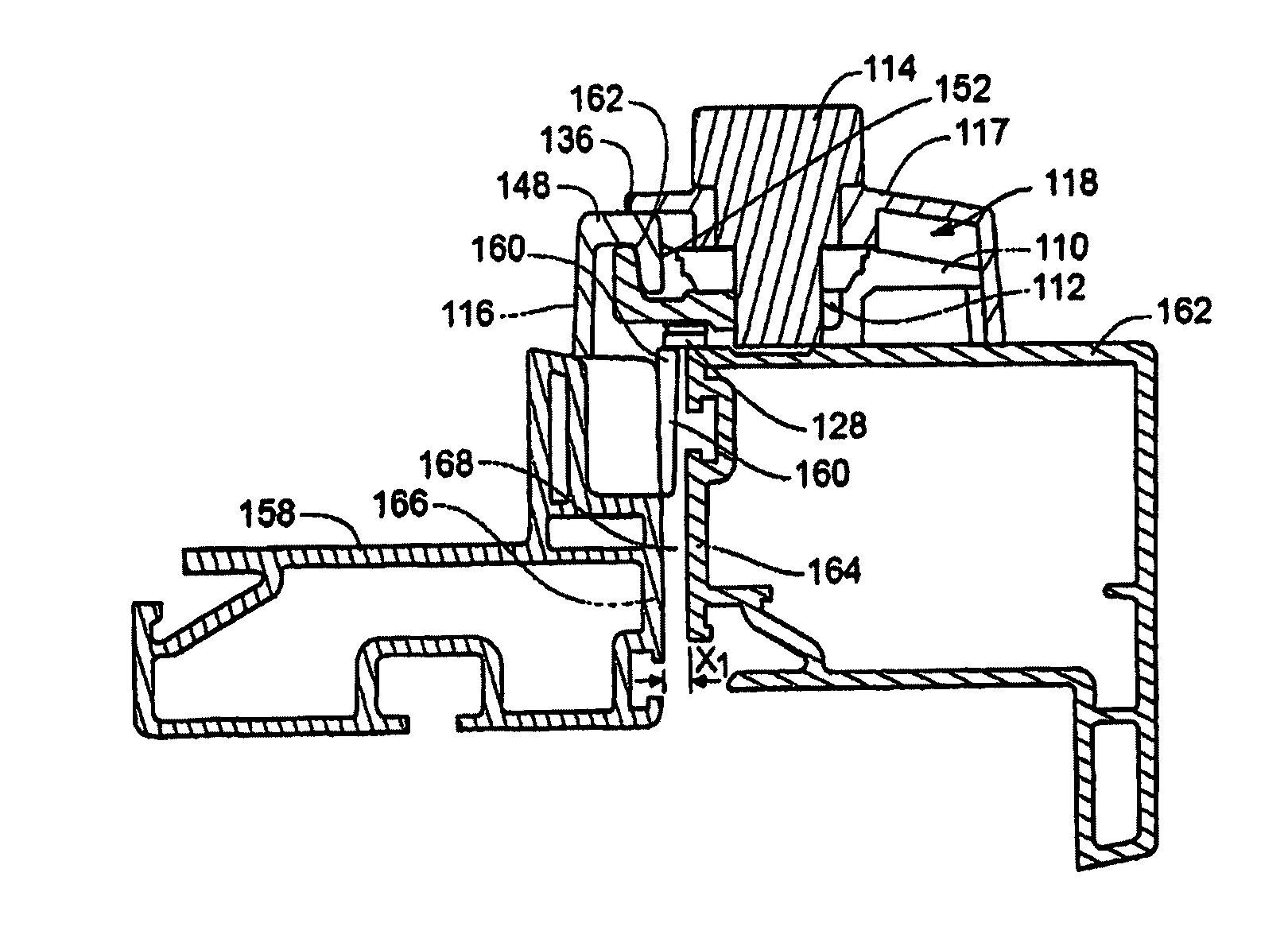

A window lock assembly accomplishing FER manipulation protection against unintended window opening without using additional components in the typical FER lock assembly by using a passive barrier system to help prevent access to both the lock cam and lock lever handle. The device can include at least one lock assembly mounted on the interior side of the window's inner sash and having a locked and unlocked position. The lock assembly engages with at least one keeper mounted on the outer sash to secure the window. The lock assembly housing has a barrier extending outward from the bottom surface which effectively helps to block access to the cam. The lock assembly housing also has a shroud which extends from the top and side edges which partially or completely covers the keeper and effectively helps to block access to the lever handle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E05B Class
- 926 Applications Filed
- 753 Patents Issued To-Date
- 81.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2029 |
