Methods and apparatuses for compacting soil and granular materials
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2017
Issued Date -
N/A
app pub date -
Sep 5, 2014
filing date -
Sep 5, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

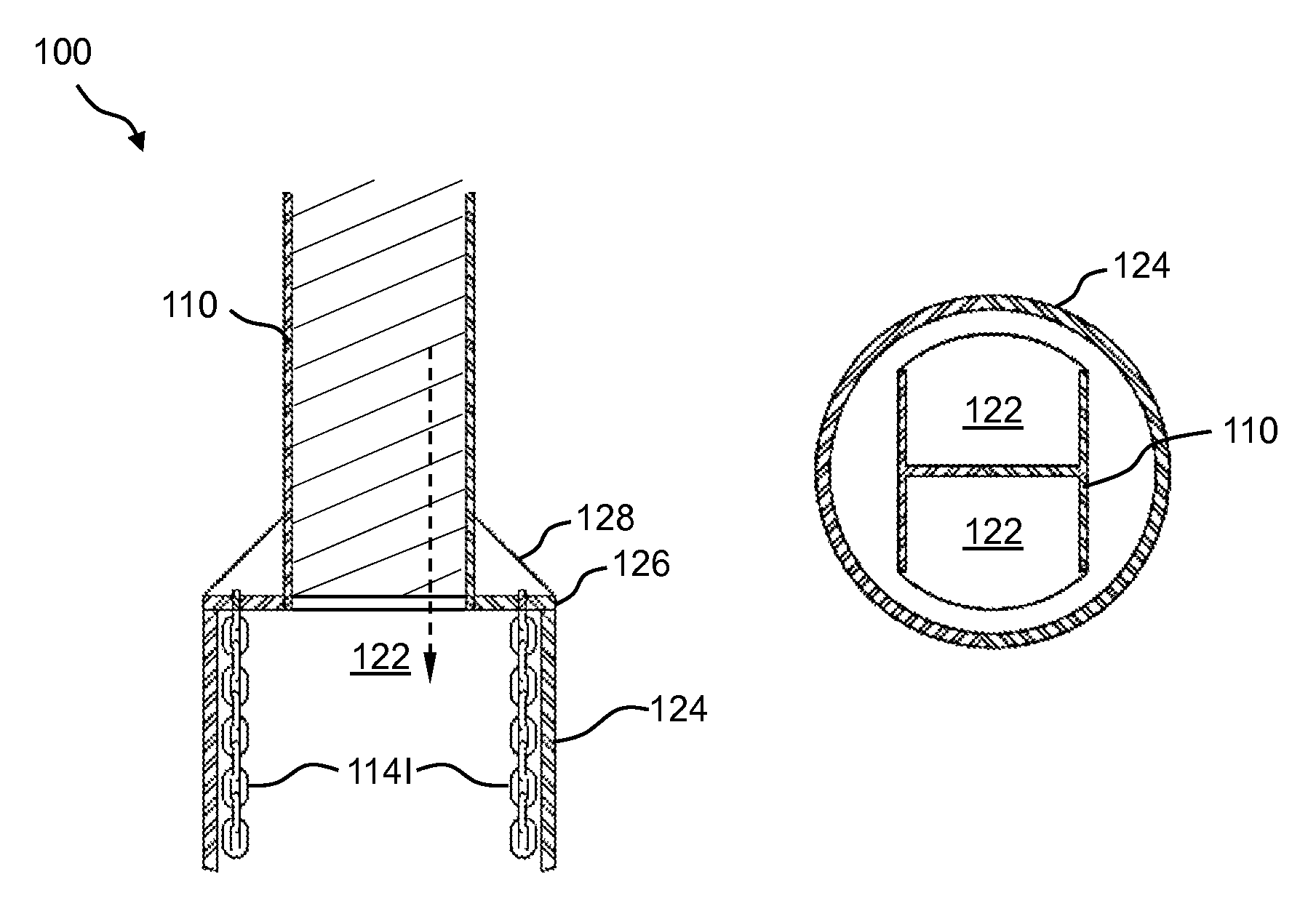

Methods and apparatuses for compacting soil and granular materials. The soil compaction apparatuses include an arrangement of diametric expansion elements that, in their expanded state, form a larger compaction surface. A compaction chamber can be provided with diametric restriction elements and a flow-through passage in the upper portion of the chamber exterior of a drive shaft. The diametric expansion or restriction elements can be fabricated from, for example, individual chains, cables, or wire rope, or a lattice of vertically and horizontally connected chains, cables, or wire rope. The soil compaction apparatus can be any one of closed-ended driving shafts, open-ended driving shafts, flow-through passages, no flow-through passages, removable rings for holding the diametric expansion/restriction elements, and any combinations thereof.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E01C Class
- 309 Applications Filed
- 276 Patents Issued To-Date
- 89.33 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E01C Class
- 19.88 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2029 |
