Transparent gas barrier composite film and its preparation method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2017
Grant Date -
Feb 18, 2016
app pub date -
Oct 7, 2014
filing date -
Aug 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

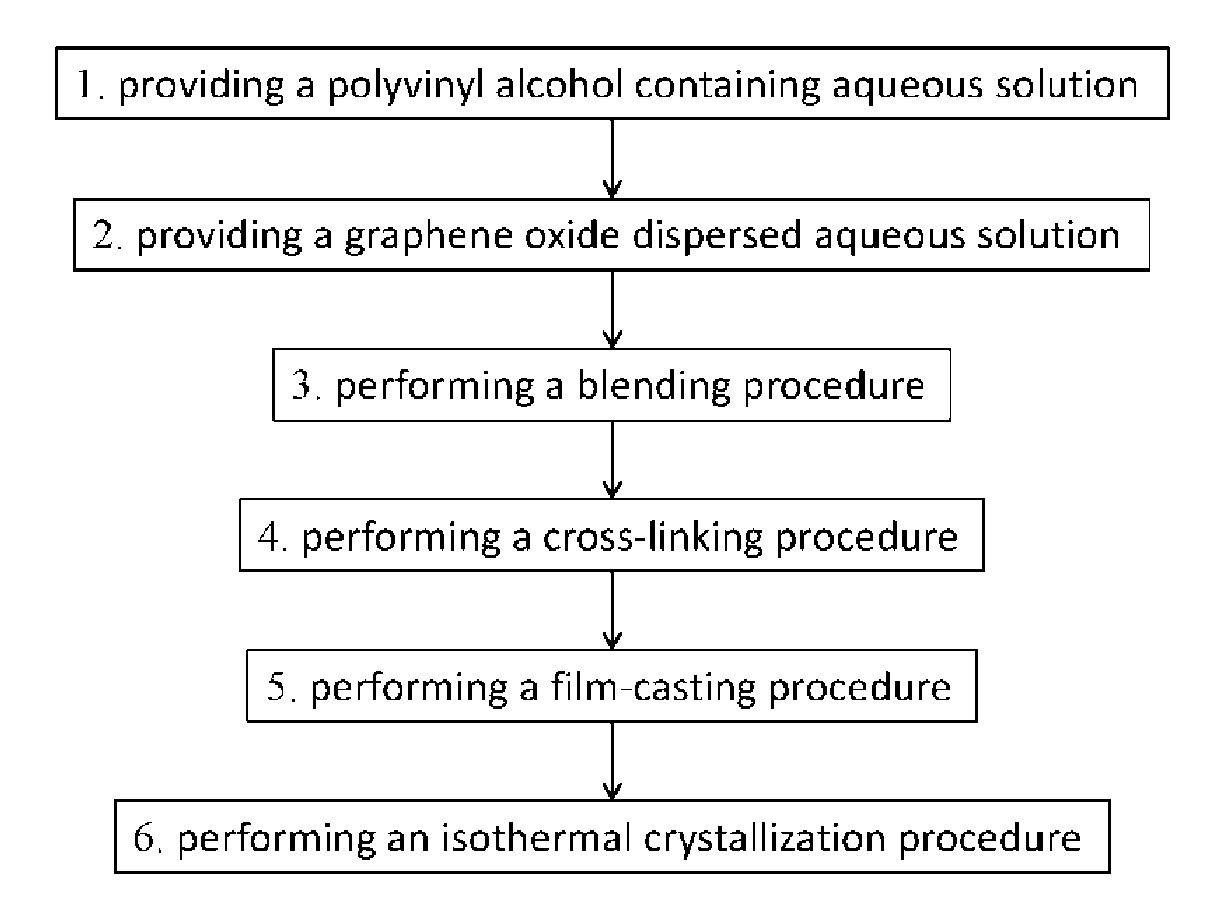

The invention provides a transparent gas barrier composite film and its preparation method. The transparent gas barrier composite film is formed by having polyvinyl alcohol, graphene oxide and a crosslinking agent undergo blending, crosslinking, film casting and isothermal crystallization processes where a weight ratio of graphene oxide to polyvinyl alcohol is 0.1 wt %, graphene oxide induces crystallization of polyvinyl alcohol to form a hybrid structure compose of polyvinyl alcohol crystals, graphene oxide and the crosslinking agent, crystallinity of polyvinyl alcohol is more than 30%, transmittance of the composite film is more than 85%, and the oxygen transmission rate of the composite film is less than 0.005 cc/m2/day.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C08J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2029 |
