Electronically-controlled steerable beam antenna with suppressed parasitic scattering
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2017
Issued Date -
N/A
app pub date -
Jun 4, 2014
filing date -
Jun 4, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

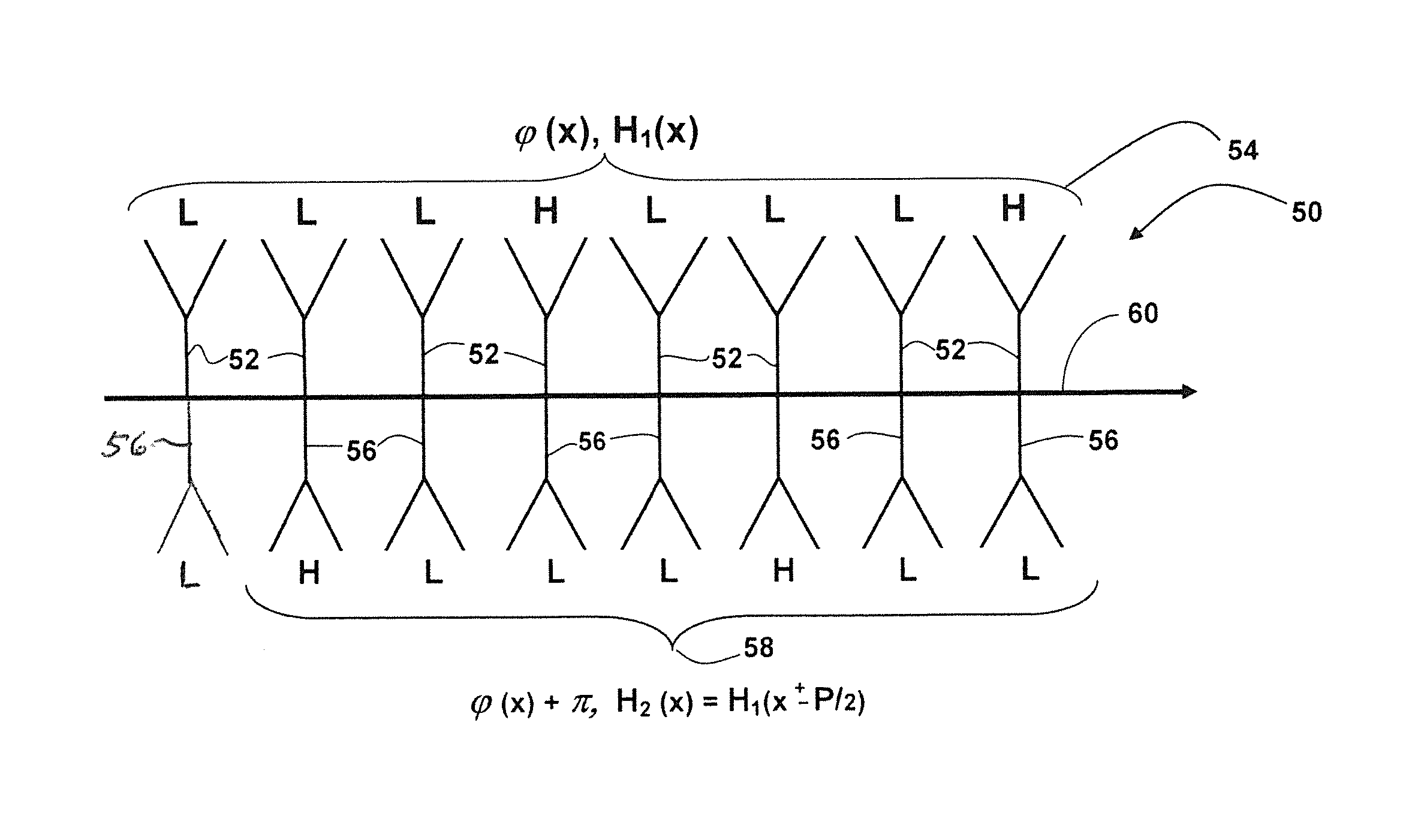

An electronically-controlled steerable beam antenna with suppressed parasitic scattering includes a feed line defining an axis x; and first and second arrays of electronically-controlled switchable scatters distributed along the axis x, each of the scatterers in the first and second arrays being switchable between a high state and a low state to scatter an electromagnetic wave propagating through the transmission line so as to form a steerable antenna beam. Each of the scatters of the second array is configured to be 180°-phase-shifted relative to a corresponding scatter of the first array. The switchable scatterers of the first and second arrays are configured into high states and low states relative to each other so as to suppress parasitic scattering of the electromagnetic wave without suppressing the steerable antenna beam.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01Q Class
- 13.07 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2029 |
