Individual finger isolation through spot application of a dielectric in an optoelectronic device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2017
Issued Date -
N/A
app pub date -
Aug 31, 2011
filing date -
Aug 31, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance

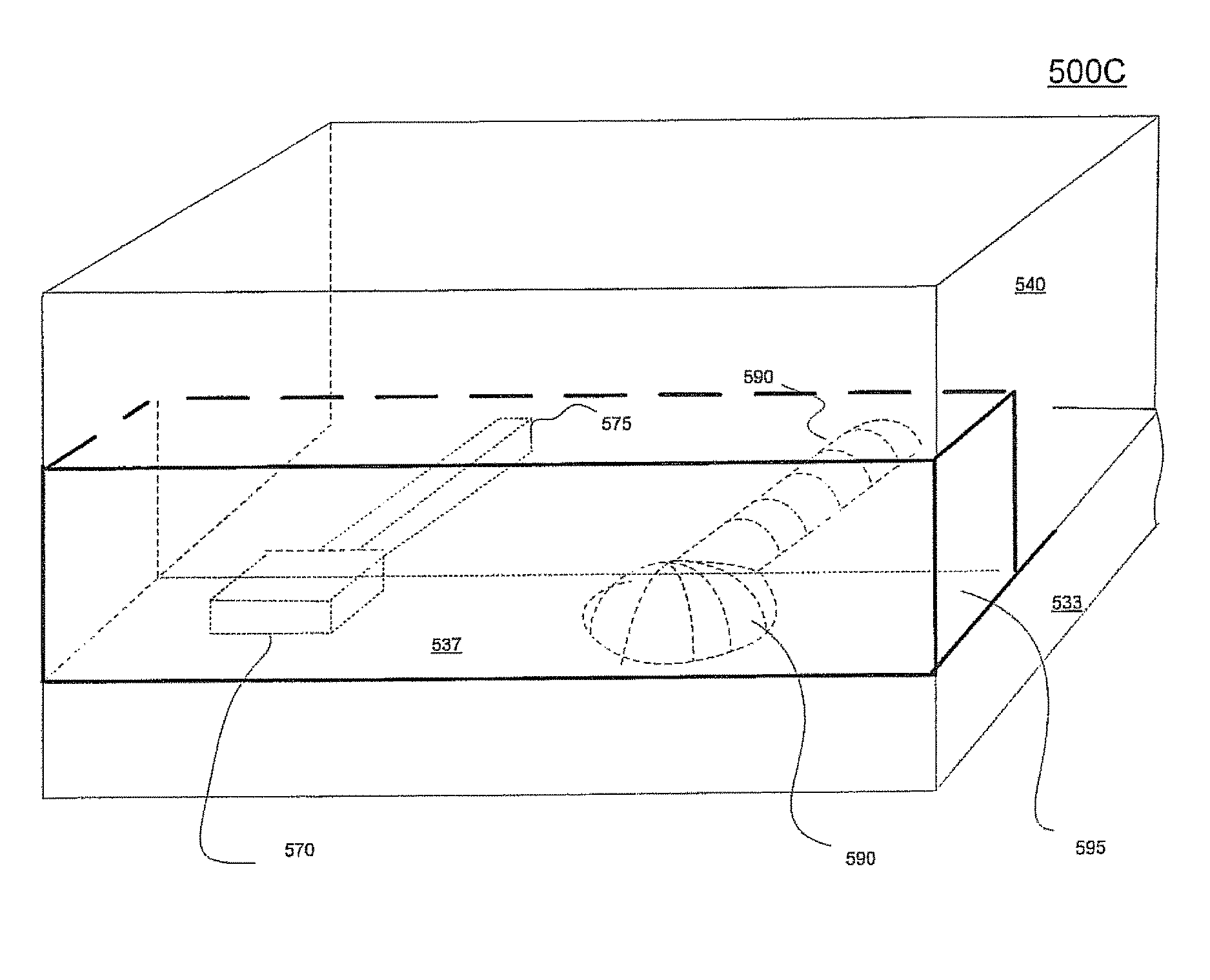

Abstract
An optoelectronic device including at least one of a solar device, a semiconductor device, and an electronic device. The device includes a semiconductor unit. A plurality of metal fingers is disposed on a surface of the semiconductor unit for electrical conduction. Each of the metal fingers corresponds to a section of the optoelectronic device. A plurality of pad areas is available for connection to a bus bar, wherein each of the metal fingers is connected to a corresponding pad area for forming an electrical contact. The optoelectronic device includes a bad section, wherein the bad section is associated with a compromised metal finger and a compromised pad area. A dielectric spot coating is disposed above the compromised pad area to electrically isolate the bad section.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- H01L Class
- 19146 Applications Filed
- 15997 Patents Issued To-Date
- 83.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2029 |
