Strainer for a snare drum
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2017
Grant Date -
May 19, 2016
app pub date -
Nov 12, 2015
filing date -
Nov 13, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

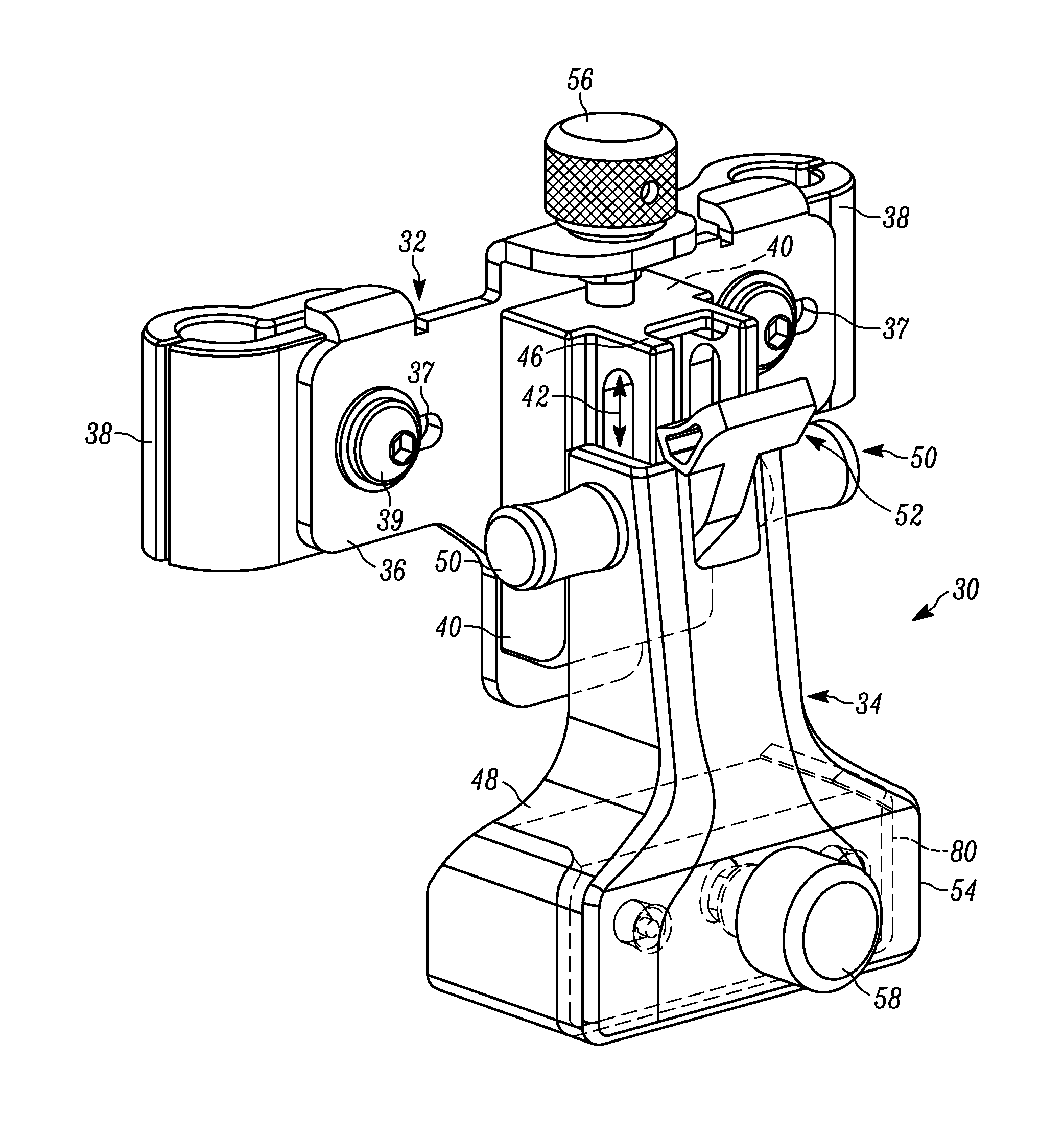

A strainer is provided for a snare drum having a bottom drumhead. The strainer includes a snare assembly including a snare carrier and a plurality of snares coupled therewith. A throw-side component includes a bracket member releasably mounted to the snare drum and a slide member moveable relative to the bracket member and engaging the snare carrier. The slide member includes a slider handle fixed thereto and a locking toggle such that when the strainer is coupled to the snare drum, manual movement of the slider handle causes the snares to move toward the bottom drumhead, with the locking toggle being constructed and arranged to be 1) moved to a first, locking position engaging the bracket member so as to lock the slide member to the bracket member, and 2) moved to a second, release position releasing the slide member from engagement with the bracket member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G10D Class
- 216 Applications Filed
- 198 Patents Issued To-Date
- 91.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G10D Class
- 15.24 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2029 |
