Vehicular grip structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2017
Grant Date -
Oct 1, 2015
app pub date -
Mar 7, 2013
filing date -
Nov 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

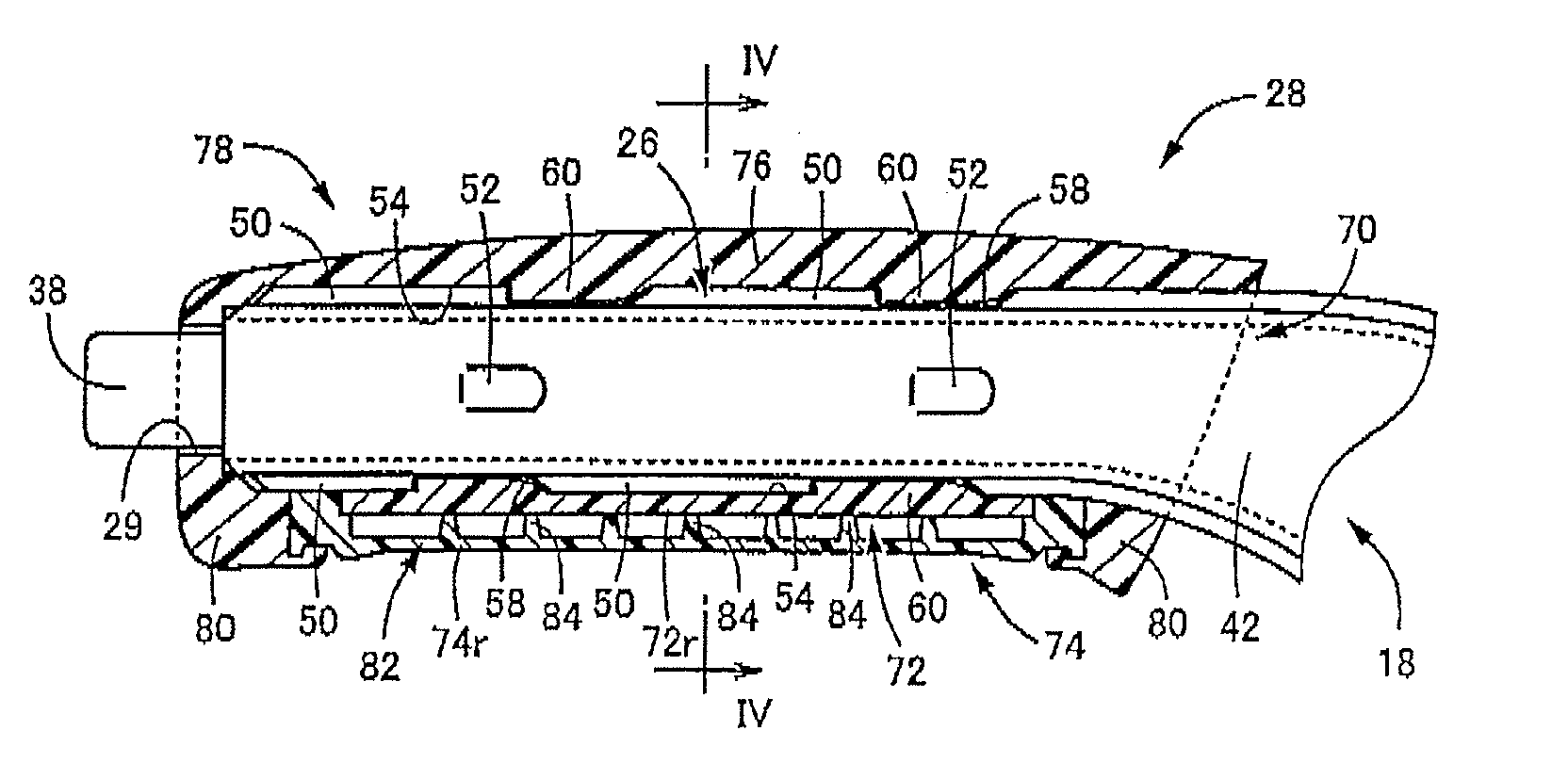

A vehicle grip structure including a body member and a grip, in which the body member is covered by the grip made of a synthetic resin, the grip includes an insertion hole in which the body member is inserted and a space portion provided along the insertion hole, multiple elastic protrusions are formed integrally with the grip and dispersedly on one of an inner peripheral-side wall surface and an outer peripheral-side wall surface of the space portion so as to protrude toward the other wall surface, when the grip is held by a driver, the elastic protrusions are pressed against the other wall surface and elastically deformed, and the elastic protrusions are arranged in a grid pattern in which adjoining ones of multiple polygons of the same shape have a common side, and are positioned so as to form each side of the polygons.
