System and method for monitoring and controlling underground drilling
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2017
Issued Date -
N/A
app pub date -
Feb 21, 2014
filing date -
Feb 1, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance

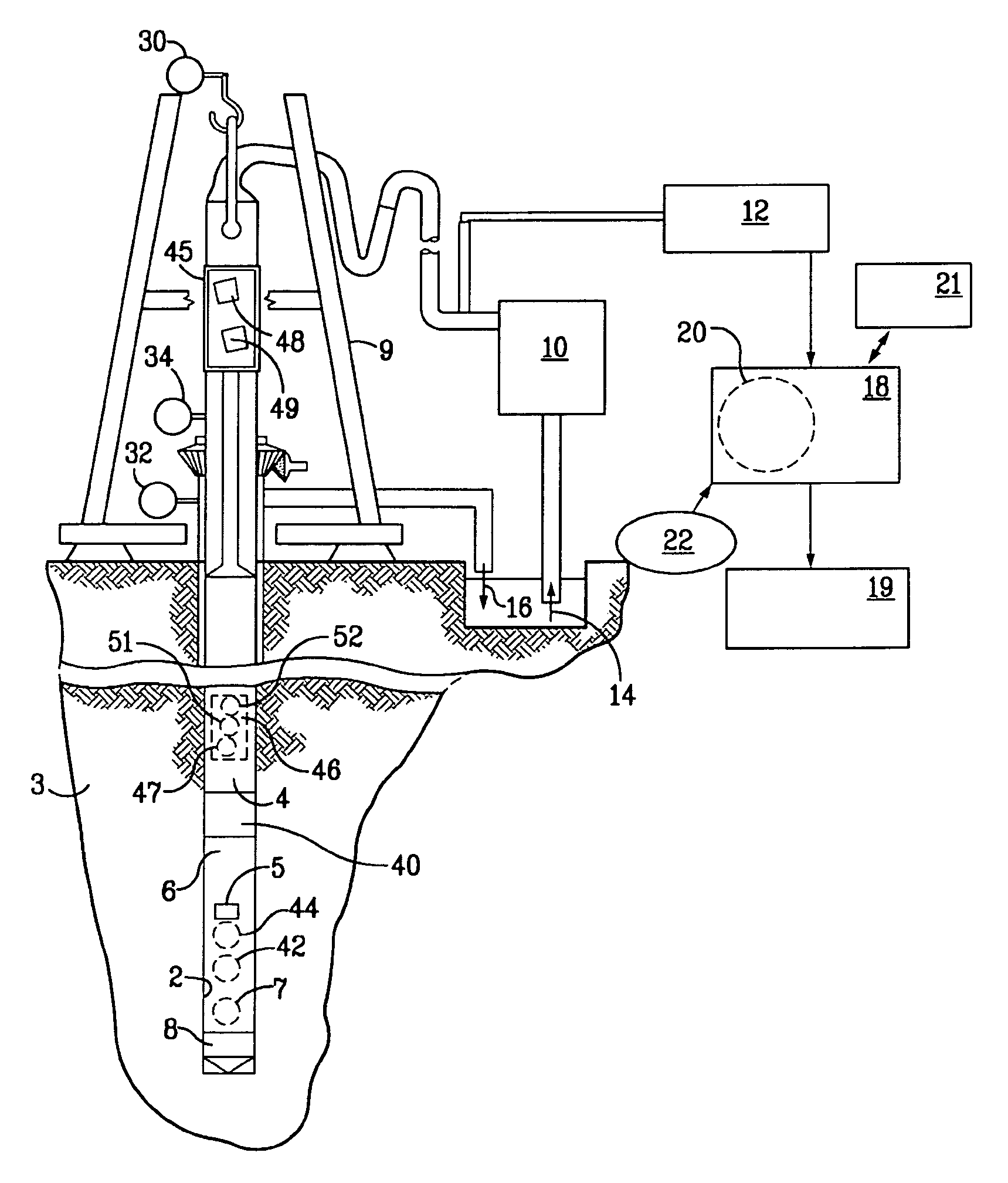

Abstract
A system and method for monitoring underground drilling in which vibration is monitored by creating a model of the drill string using finite element techniques or finite difference techniques and (i) predicting vibration by inputting real time values of operating parameters into the model, and then adjusting the model to agree with measured vibration data, (ii) predicting the weight on bit and drill string and mud motor speeds at which resonance will occur, as well as when stick-slip will occur, so that the operator can avoid operating regimes that will result in high vibration, (iii) determining vibration and torque levels along the length of the drill string based on the measured vibration and torque at one or more locations, (iv) determining the remaining life of critical components of the drill string based on the history of the vibration to which the components have been subjected, and (v) determining the optimum drilling parameters that will avoid excessive vibration of the drill string.
First Claim
Other Claims data not available
Family
International Classification(s)
- G01H:MEASUREMENT OF MECHANICAL VIBRATIONS OR ULTRASONIC....
- G01M:TESTING STATIC OR DYNAMIC BALANCE OF MACHINES OR S....
- G05B:CONTROL OR REGULATING SYSTEMS IN GENERAL; FUNCTION....
- G06F:ELECTRIC DIGITAL DATA PROCESSING
- E21B:EARTH OR ROCK DRILLING
- G01V:GEOPHYSICS; GRAVITATIONAL MEASUREMENTS; DETECTING ....
- 2014 Application Filing Year
- G01H Class
- 190 Applications Filed
- 148 Patents Issued To-Date
- 77.90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 121 Citation Count
- G01H Class
- 96.49 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2029 |
