Reversible hydraulic pressure converter employing tubular valves
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2017
Grant Date -
Feb 26, 2015
app pub date -
Aug 18, 2014
filing date -
Aug 20, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

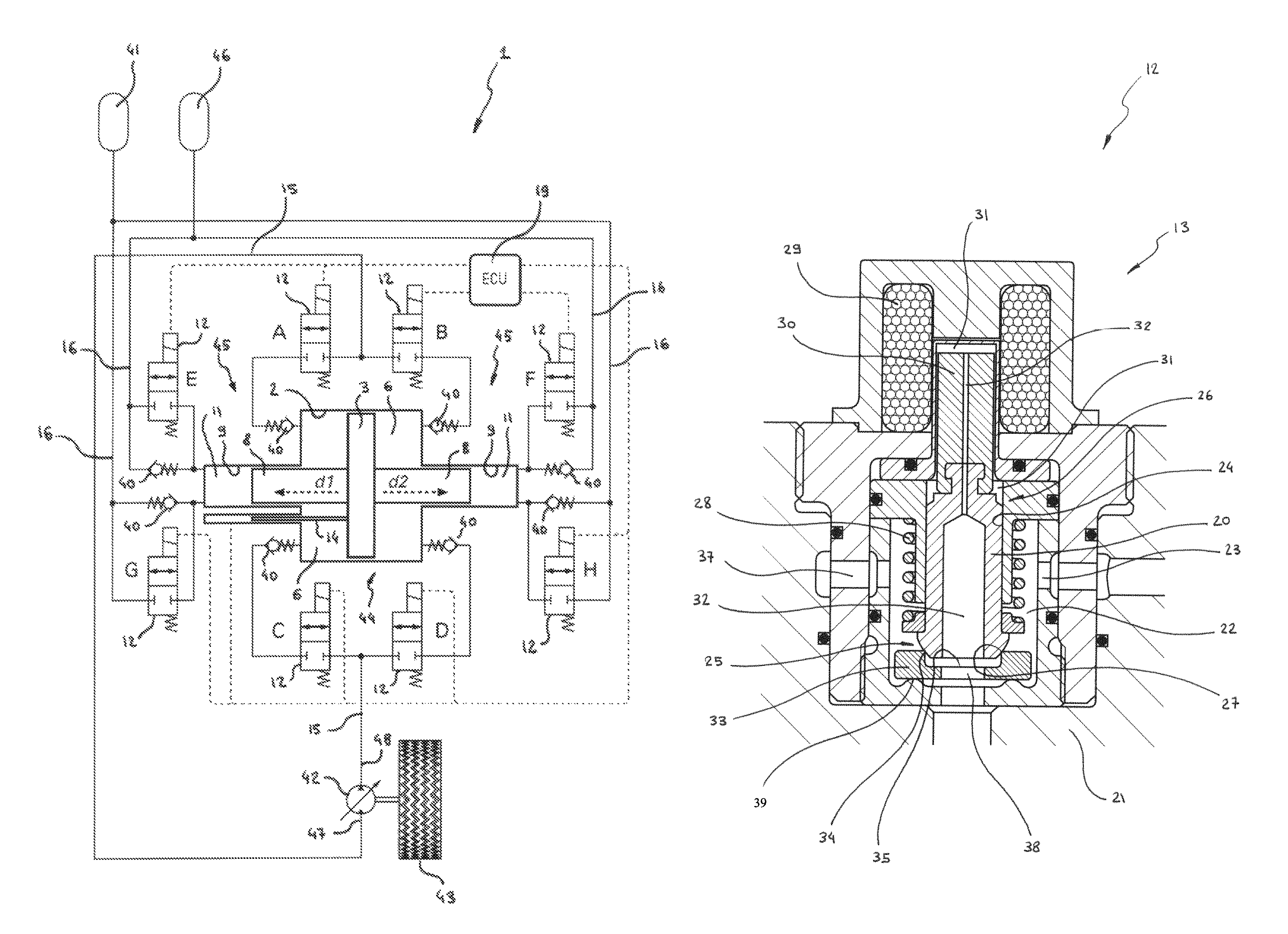

The reversible hydraulic pressure converter (1) employing tubular valves includes a medium-pressure stage (44) consisting of a medium-pressure cylinder (2) and a double-acting medium-pressure piston (3) the position of which is sent to a control computer of the converter (19) by a piston position sensor (14), the cylinder (2) and the piston (3) forming two medium-pressure chambers (5) that can be placed in communication with a medium-pressure inlet-outlet circuit (15) by at least one tubular valve (12), the converter (1) also including two high-pressure cylinders (9) each cooperating with a high-pressure piston (8) of smaller diameter and defining two high-pressure chambers (11) that can be placed in communication with a high-pressure inlet-outlet circuit (16) by at least one tubular valve (12), each of the various tubular valves (12) cooperating with an independent valve actuator (13).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F15B Class
- 519 Applications Filed
- 441 Patents Issued To-Date
- 84.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F15B Class
- 34.83 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2029 |
