Modular railroad track assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2017
Issued Date -
N/A
app pub date -
Jun 4, 2015
filing date -
Sep 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

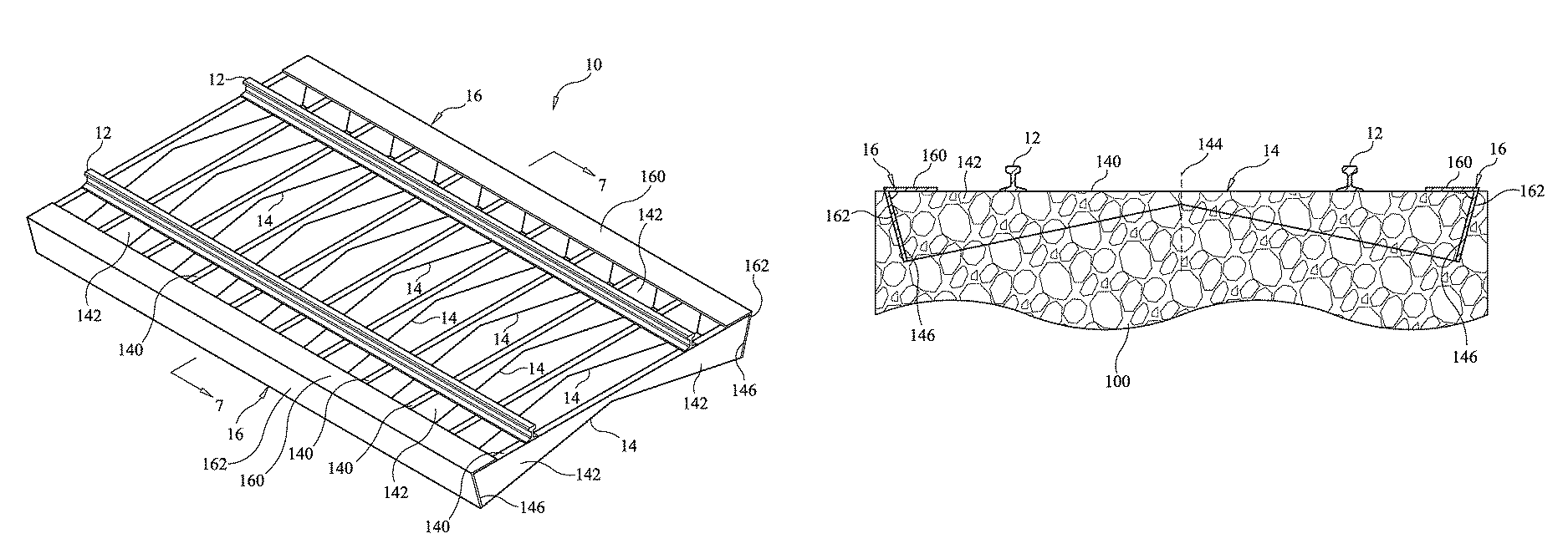

A modular railroad track assembly includes spaced-apart cross-ties, side ties, and railroad track rails. Each cross-tie includes a planar edge with the cross-ties being arranged such that each planar edge lies in a common plane. The sides of each cross-tie define an acute angle with the cross-tie's planar edge. The acute angle is in the approximate range of 65° to 80°. Railroad track rails are coupled to the planar edge associated with each cross-tie. A first side tie is coupled to first sides of the cross-ties wherein at least a portion of the first side tie is at the acute angle with respect to the planar edges associated with the cross-ties. A second side tie is coupled to second sides of the cross-ties, wherein at least a portion of the second side tie is at the same acute angle with respect to the planar edges associated with the cross-ties.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E01B Class
- 105 Applications Filed
- 86 Patents Issued To-Date
- 81.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E01B Class
- 36.21 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2029 |
