Simulated cigarette device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2017
Grant Date -
Dec 29, 2011
app pub date -
Dec 23, 2009
filing date -
Dec 23, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

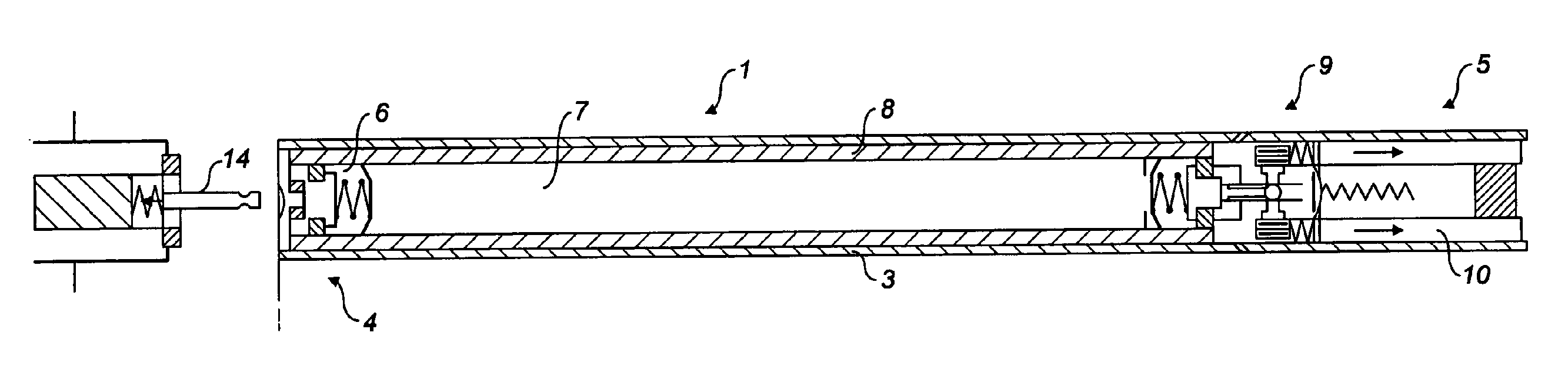

A simulated cigarette device with a substantially cylindrical cigarette-like shape comprising a reservoir of a pressurized composition including an inhalable substance and a propellant. A refill valve is in communication with the reservoir via which the reservoir is refilled. A breath-activated valve selectively controls the flow through a reservoir outlet and hence through an inhaling outlet in the device. The size of the reservoir, the pressure within the reservoir and the size of the reservoir outlet at its narrowest point are arranged so that, when the breath-activated valve is fully opened, the reservoir will discharge in less than 30 seconds.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- A24F Class
- 68 Applications Filed
- 48 Patents Issued To-Date
- 70.59 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 41 Citation Count
- A24F Class
- 98.90 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2029 |
