Mobile cam device for commanding needles of a needle bed of a knitting machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 27, 2017
Grant Date -
Apr 14, 2016
app pub date -
May 15, 2014
filing date -
May 20, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

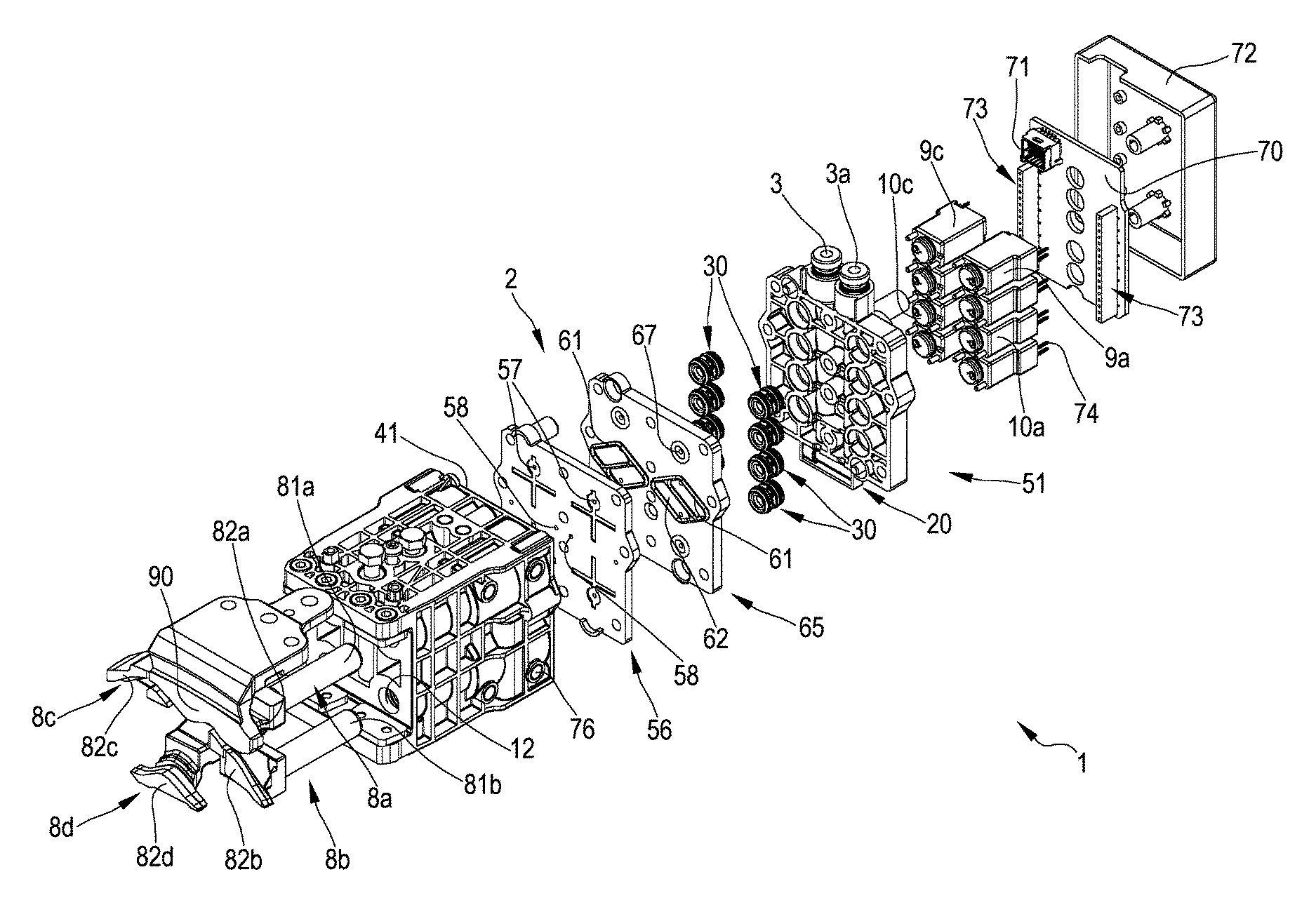

A mobile cam device (1) for commanding needles of a needle bed of a knitting machine, the device comprising a body (2) of the device provided with at least a first housing seating (4a) having a longitudinal development and configured to movably house at least a first actuator (5a) in the body. The device further comprises at least a first command cam (8a) movably mounted and associated to the body and destined to interact with at least a needle of a needle bed of a knitting machine, and at least a first actuator (5a), movably housed at least partially in the first housing seating (4a) in the body and destined to move in a controlled way the first command cam (8a). The first actuator comprises a first piston (15a) and a second piston (16a) distinct from one another and translatably housed in the first seating, the first and second piston being arranged in series along the longitudinal extension of the first seating and being translatable independently with respect to one another. The body (2) of the device is one and one alone, and is made in a single piece.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- D04B Class
- 151 Applications Filed
- 124 Patents Issued To-Date
- 82.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- D04B Class
- 96.88 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 27, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 27, 2028 |
