Process and apparatus for making a mineral melt
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 27, 2017
Grant Date -
Feb 25, 2010
app pub date -
Jan 14, 2008
filing date -
Jan 15, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

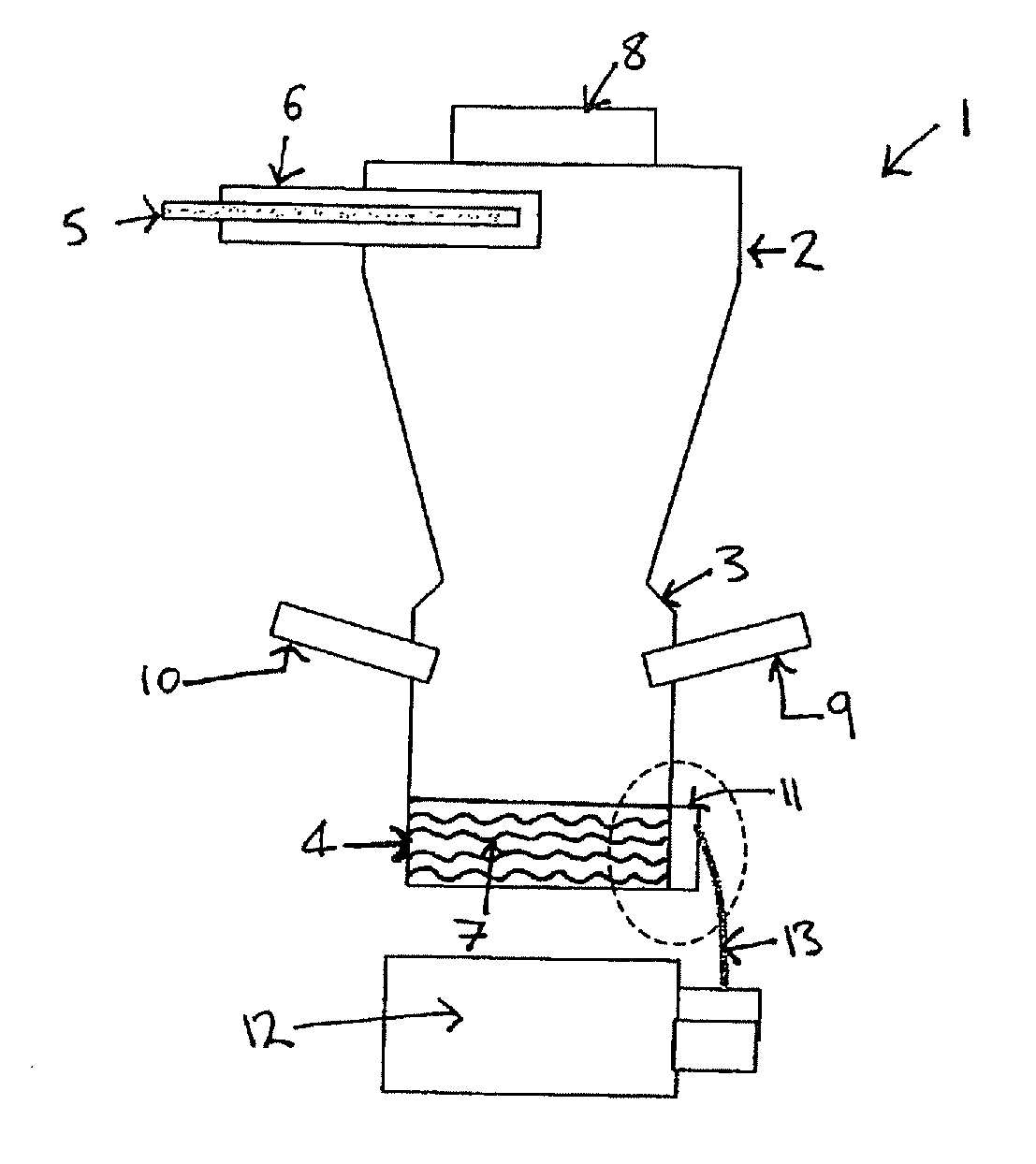

The invention relates to a method of making a mineral melt comprising providing a circulating combustion chamber (1) which comprises an upper zone (2), a lower zone (3) and a base zone (4), injecting particulate fuel, particulate mineral material and primary combustion gas which has optionally an oxygen level of at least 25% by volume into the upper zone of the circulating combustion chamber so that the fuel undergoes pyrolysis in the upper zone to produce char, thereby melting the particulate mineral materials to form a mineral melt and generating exhaust gases, injecting secondary combustion gas which has optionally an Oxygen level of at least 25% by volume into the lower zone of the circulating combustion chamber so that the char combusts, thereby completing combustion of the fuel, and separating the mineral melt from the hot exhaust gases so that the hot exhaust gases pass though an outlet in the circulating combustion chamber and the mineral melt collects in the base zone. The melt is optionally fiberized. The invention also relates to apparatus suitable for use in the method.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- C03B Class
- 244 Applications Filed
- 138 Patents Issued To-Date
- 56.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C03B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 27, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 27, 2028 |
